Item 22: Upper Intake Manifold Removal Note

  1. Disconnect the four engine harness pin type retainers.

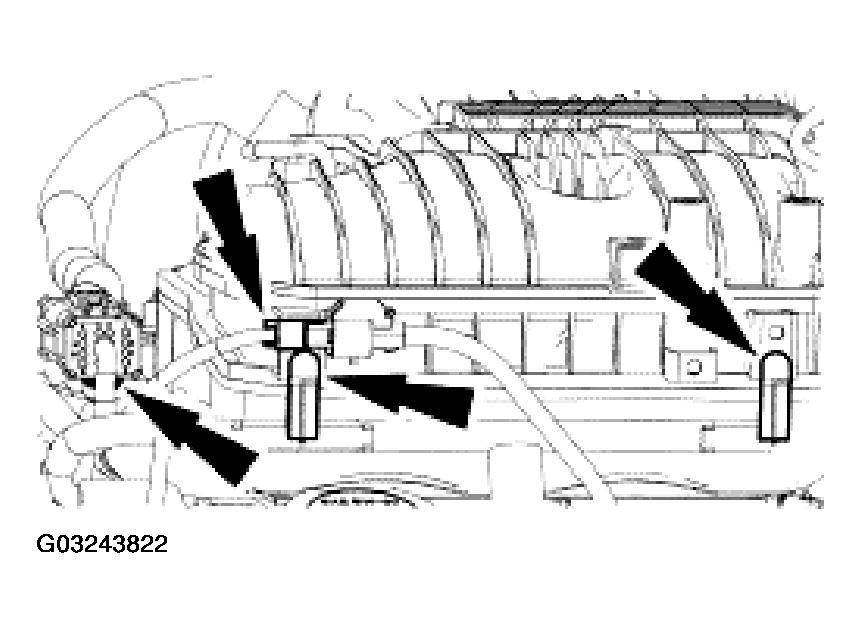

    Fig 1: Disconnecting Four Engine Harness Pin Type Retainers
    G03243822Courtesy of FORD MOTOR CO.
  2. Disconnect the two engine harness pin type retainers.

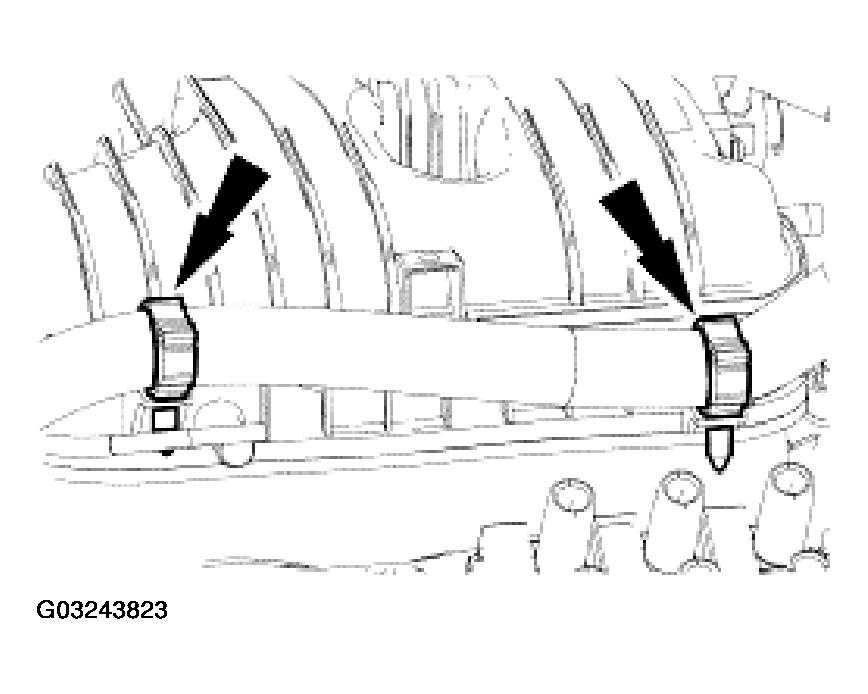

Fig 2: Disconnecting Two Engine Harness Pin Type Retainers
G03243823Courtesy of FORD MOTOR CO.
