Engine Front Cover, Timing Gears, Chain and Tensioners: Notes

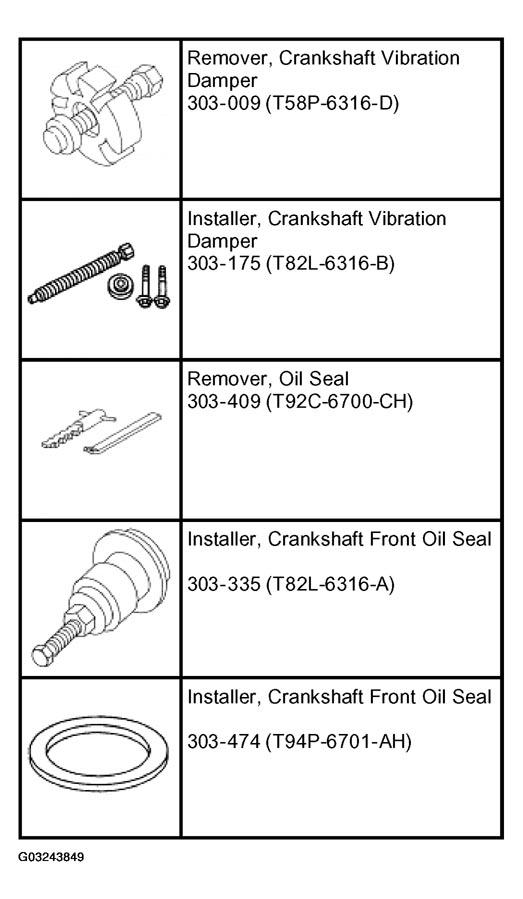

Special Tool(s)

Item	Specification
Super Premium SAE 5W-20 XO-5W20-QSP or equivalent	WSS-M2C153-H
Metal Surface Cleaner F4AZ-19A536-RA	WSE-M5B392-A
Silicone Gasket and Sealant F7AZ-19554-EA	WSE-M4G323-A4

1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the generator. For additional information, refer to GENERATOR .
3. Remove the crankshaft position (CKP) sensor. For additional information, refer to CRANKSHAFT POSITION (CKP) SENSOR .
4. Remove the coolant pump. For additional information, refer to WATER PUMP .
5. Remove the camshaft synchronizer. For additional information, refer to CAMSHAFT POSITION (CMP) SENSOR .
6. Remove the parts in the order indicated in the following illustrations.

   To remove individual parts, only carry out the listed steps:

   Part	Steps
   Engine front cover	1-16
   Timing chain and gears	1-21
   Timing chain tensioner	1-23

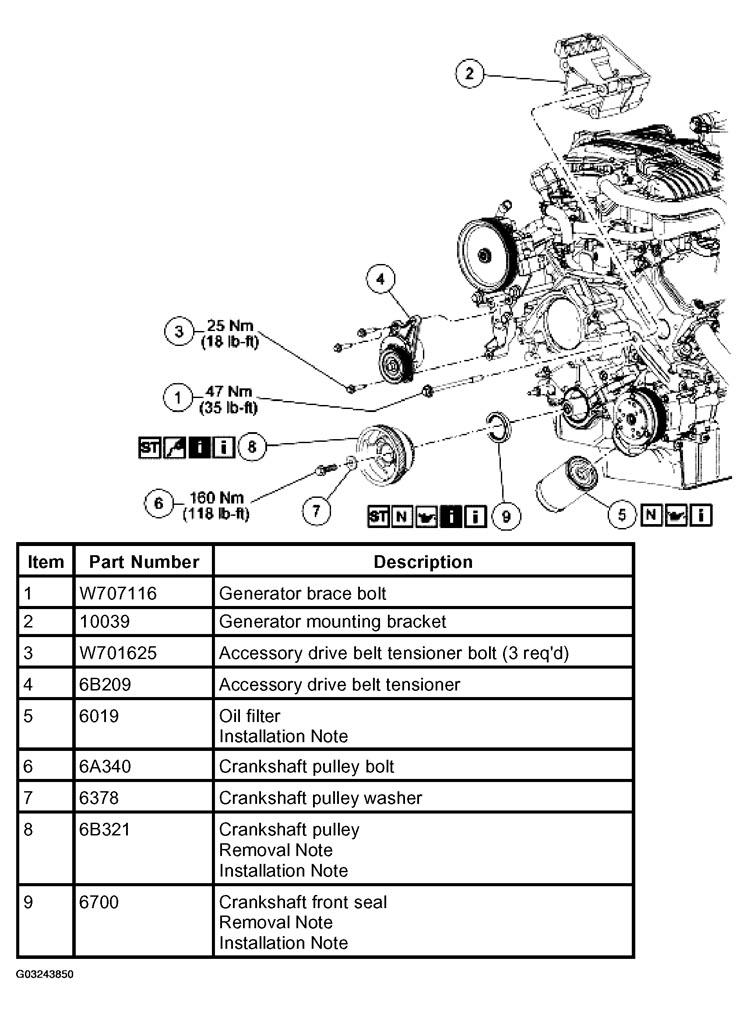

   Fig 2: Engine Front Cover, Timing Gears, Chain And Tensioners Removal Sequence (Items 1-9)

   Courtesy of FORD MOTOR CO.

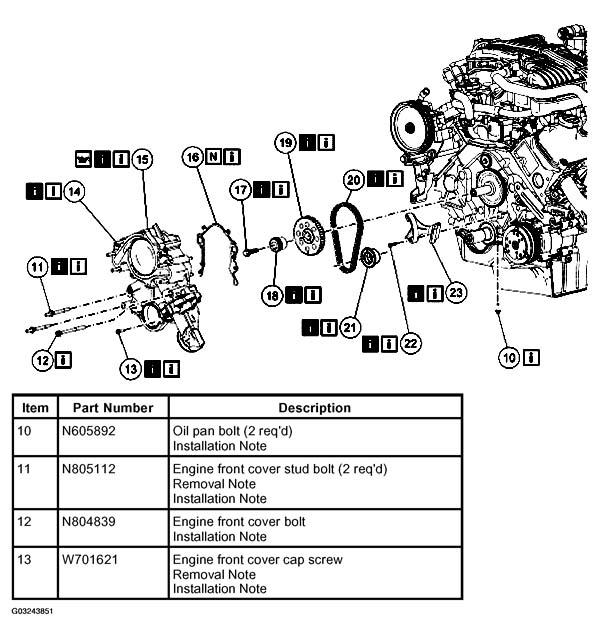

   Fig 3: Engine Front Cover, Timing Gears, Chain And Tensioners Removal Sequence (Items 10-13)

   Courtesy of FORD MOTOR CO.

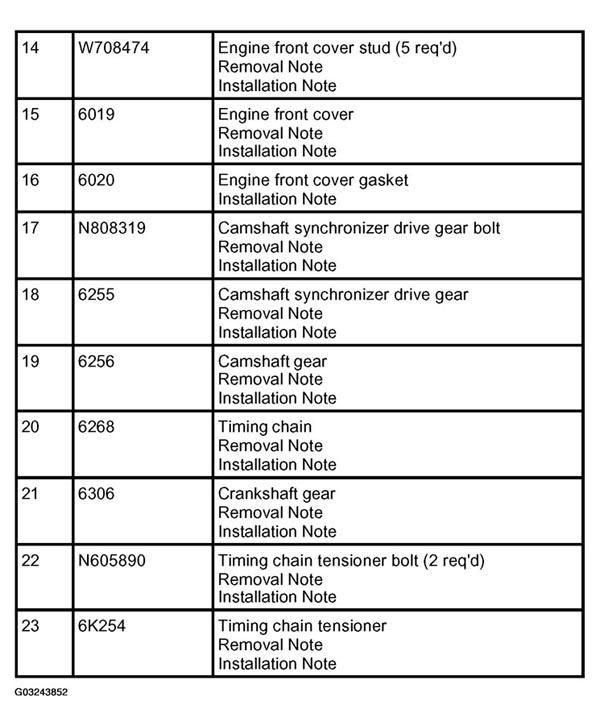

   Fig 4: Engine Front Cover, Timing Gears, Chain And Tensioners Removal Sequence (Items 14-23)

   Courtesy of FORD MOTOR CO.
7. To install, reverse the removal procedure.
8. Drain the engine oil and refill with clean engine oil.

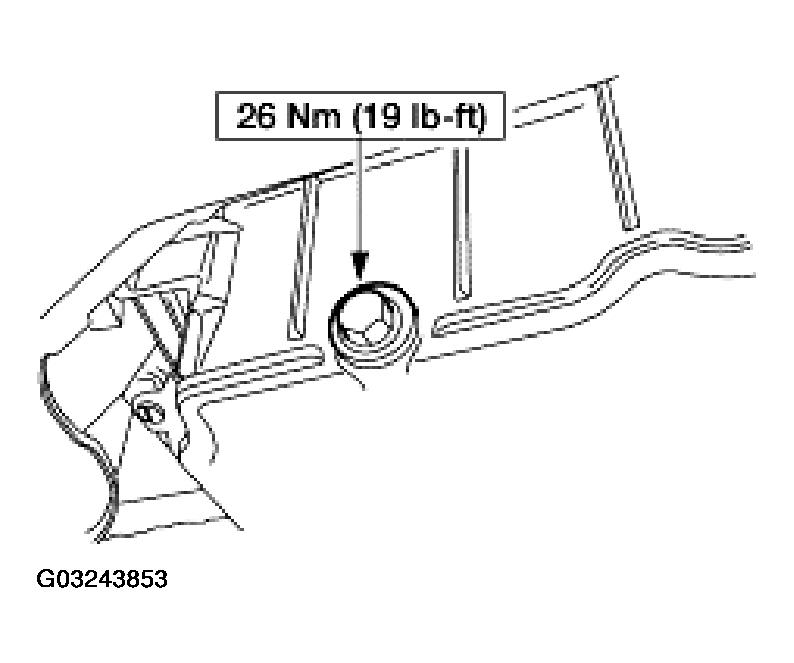

   Fig 5: Identifying Engine Oil Drain Plug

   Courtesy of FORD MOTOR CO.
