Cylinder Head - RH: Material

MATERIAL SPECIFICATIONS

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent WSS-M2C153-H
Motorcraft Silicone Gasket Remover
ZC-30		 -
Motorcraft Metal Surface Prep
ZC-31		 -

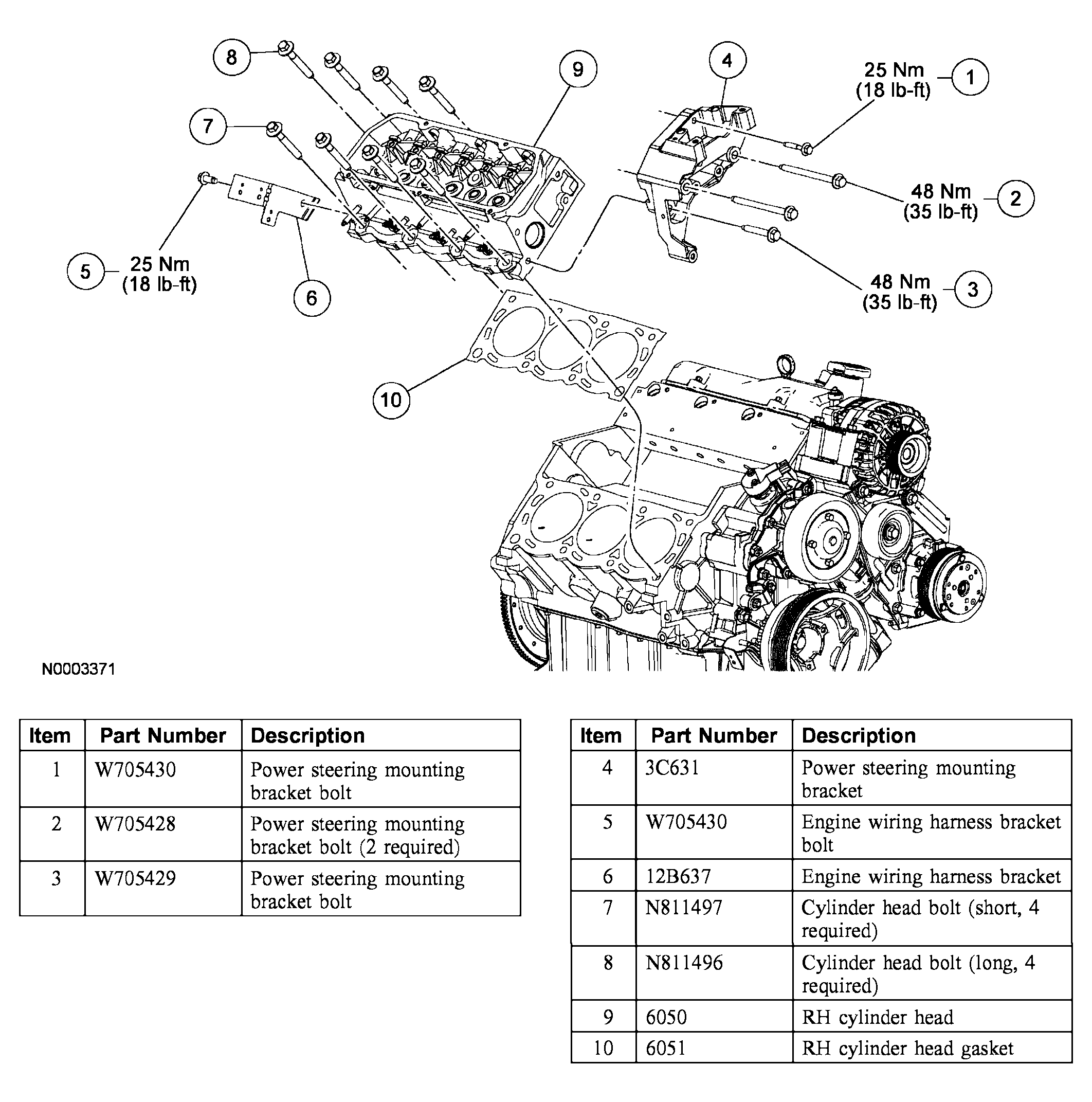

Fig 1: Identifying RH Cylinder Head Components
G04003989Courtesy of FORD MOTOR CO.
