Accessory Drive Belt, Tensioner And Pulley: Notes

  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Accessory drive belt 1
    Accessory drive belt tensioner 1-3
    Accessory drive belt idler pulley 1, 4-5

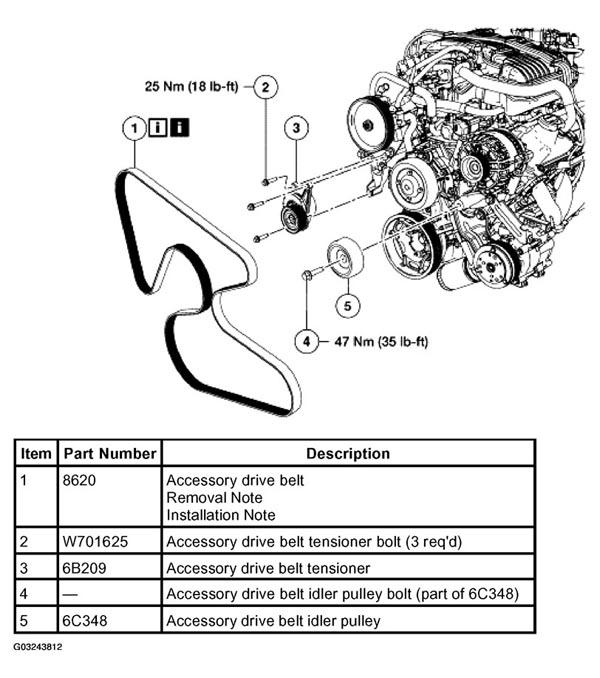

    Fig 1: Accessory Drive Belt, Tensioner And Pulley Components Removal Sequence
    G03243812Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
