Auxiliary Relay Box 1
NOTE:

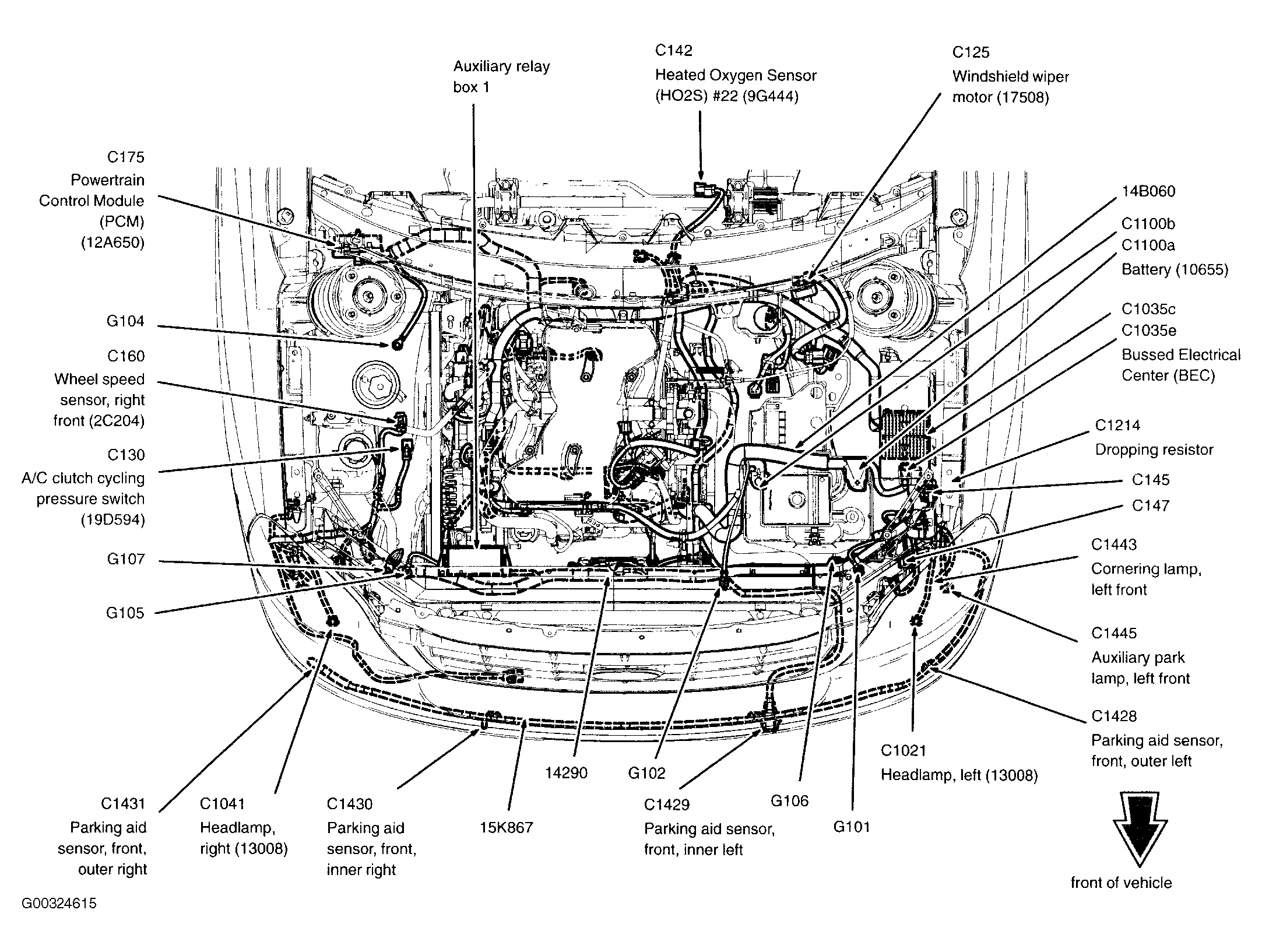

Auxiliary relay box 1 is located at right front of engine compartment. See Fig 1.

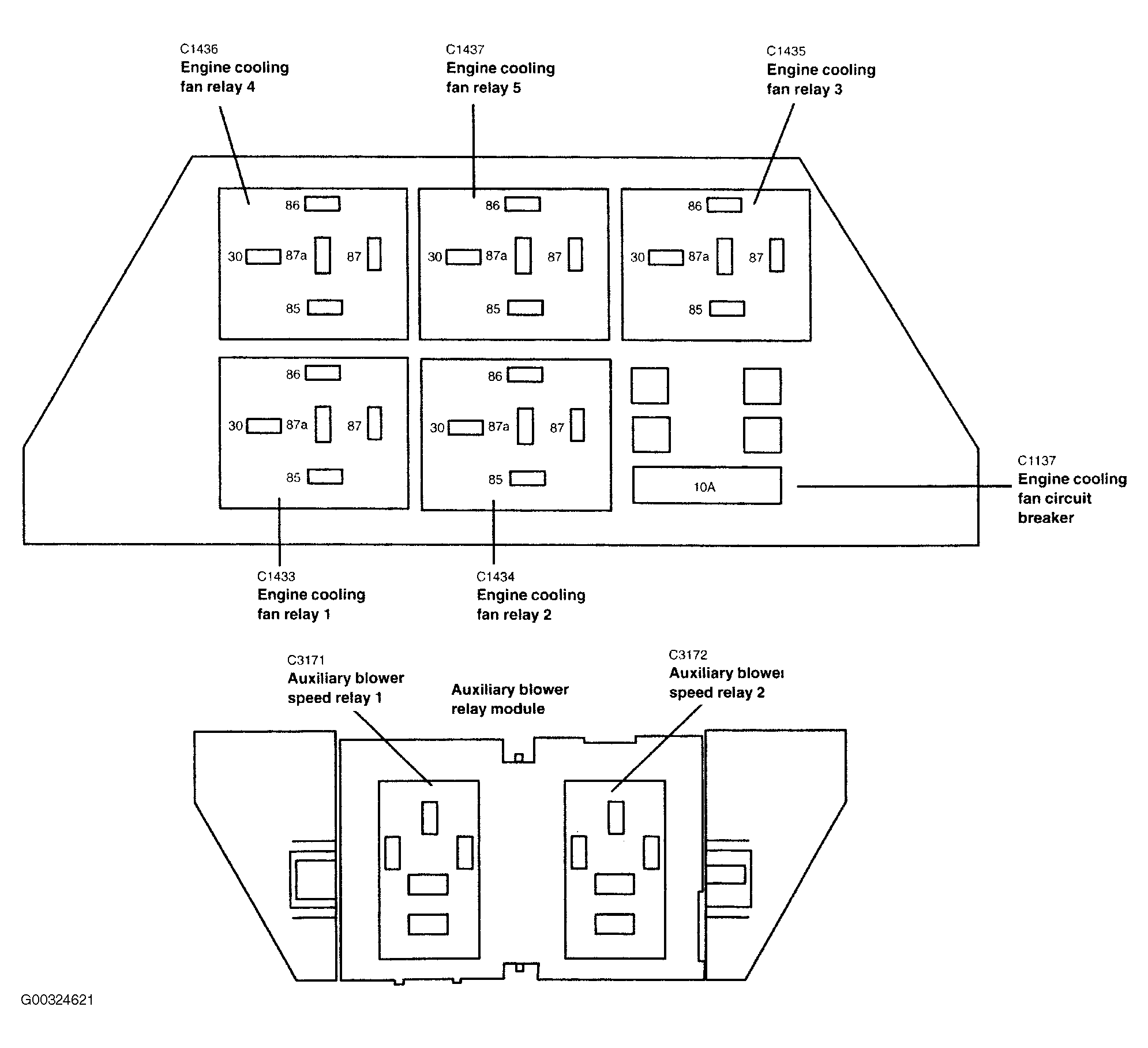

AUXILIARY RELAY BOX 1 RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1436 | Engine cooling fan relay 4 |
| C1437 | Engine cooling fan relay 5 |
| C1435 | Engine cooling fan relay 3 |
| C1434 | Engine cooling fan relay 2 |
| C1433 | Engine cooling fan relay 1 |
| C3171 | Auxiliary blower speed relay 1 |
| - | Auxiliary blower relay module |
| C3172 | Auxiliary blower speed relay 2 |
