Upper Clockspring

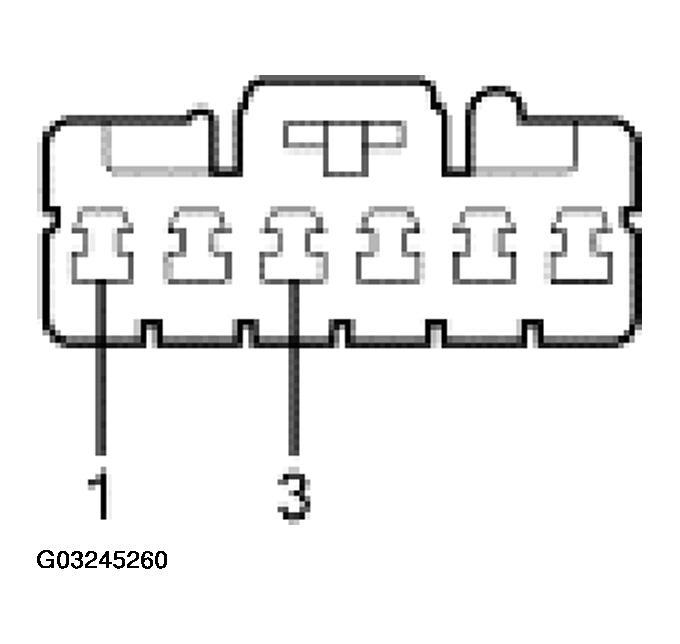

UPPER CLOCKSPRING CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 151 (LB/BK) speed control switch command circuit | 0 volts, less than 5 ohms between the upper clockspring and the horn switch harness. Greater than 10,000 ohms between the clockspring and ground. |
| 3 | 848 (DG/OG) speed control switch return circuit | 0 volts, less than 5 ohms between the upper clockspring and the horn switch harness. Greater than 10,000 ohms between the clockspring and ground. |
