Sun and Shell Assembly - Disassembly: Notes

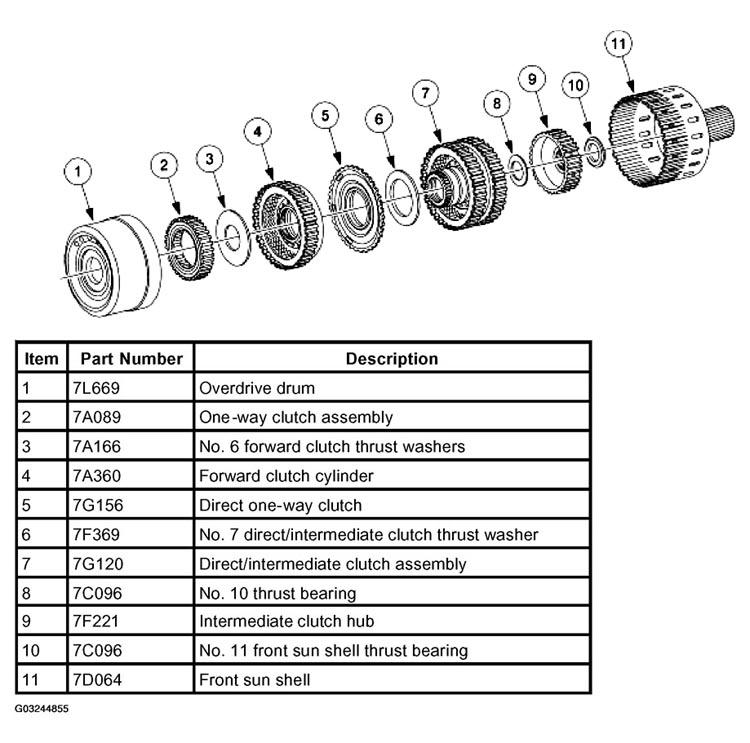

Fig 1: Identifying Sun And Shell Assembly Components

G03244855

Courtesy of FORD MOTOR CO.
