Blower Motor Speed Control Module C271

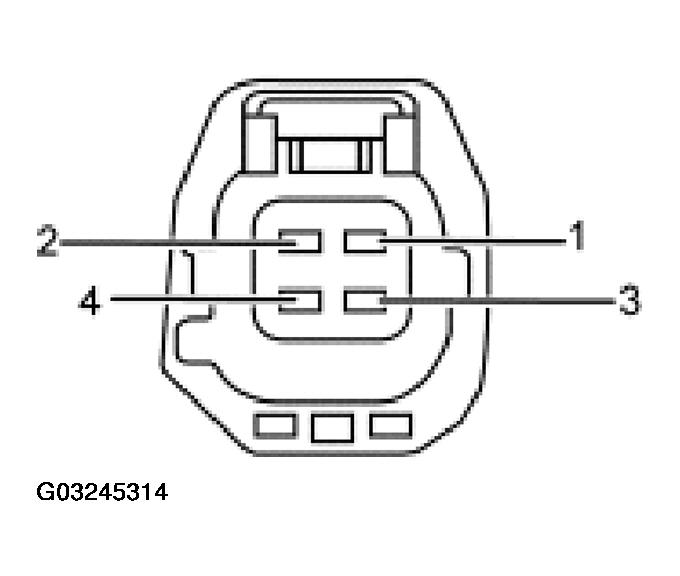

Fig 1: Identifying Blower Motor Speed Control Module C271
G03245314Courtesy of FORD MOTOR CO.
BLOWER MOTOR SPEED CONTROL MODULE C271 CIRCUIT REFERENCE

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 261 (OG/BK) blower motor speed control module to blower motor Greater than 10 volts with the EATC ON.
2 CKT 1205 (BK) blower motor speed control module ground Resistance of 0 ohms to chassis ground.
3 CKT 1120 (BK/WH) EATC module to blower motor speed control module input Less than 1 volt in the lowest blower setting to greater than 4.5 volts in the highest blower setting.
4 CKT 371 (PK/WH) voltage supply to blower motor speed control module Greater than 10 volts with the EATC ON.
