Direct and Reverse Clutch Assembly: Notes

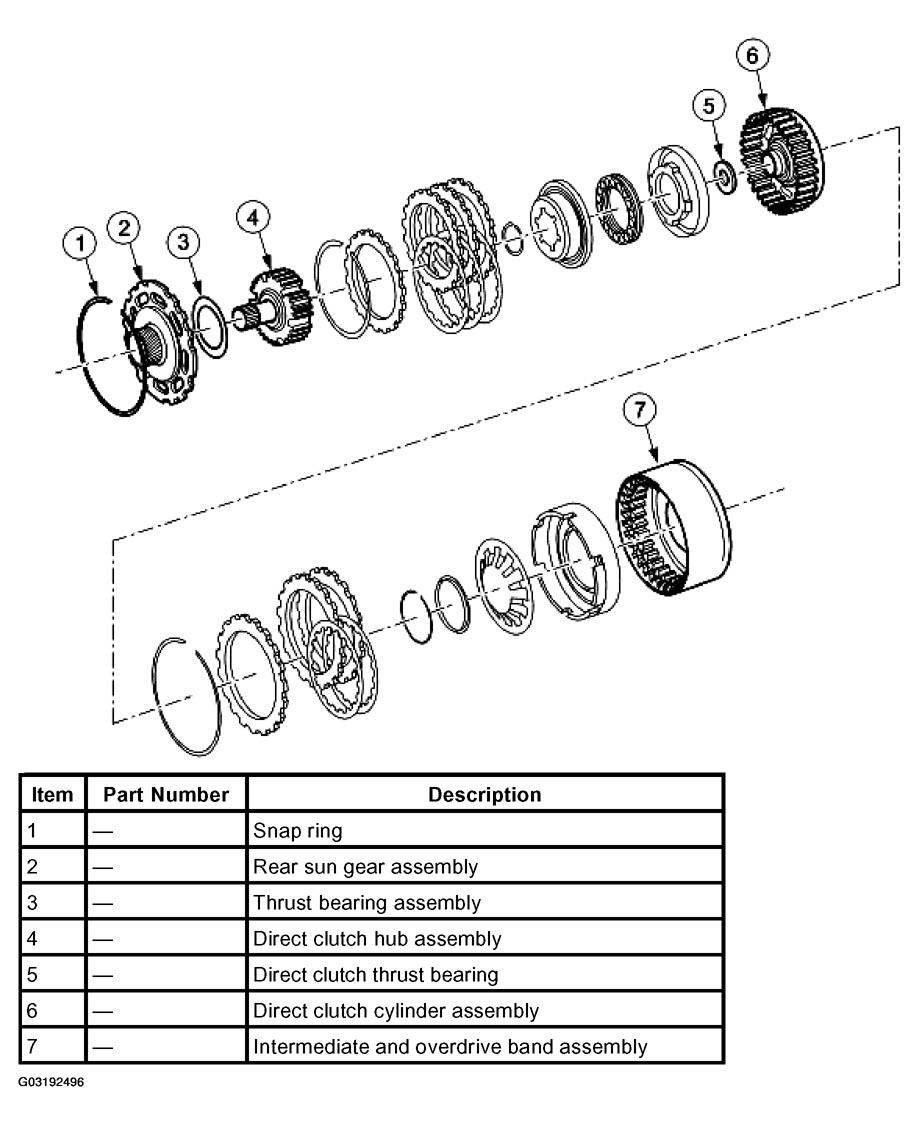

Fig 1: Identifying Direct And Reverse Clutch Assembly Components

G03192496

Courtesy of FORD MOTOR CO.
