Direct Clutch: Material

MATERIAL SPECIFICATION

Item	Specification
Automatic Transmission Fluid XT-5-QM	MERCON® V

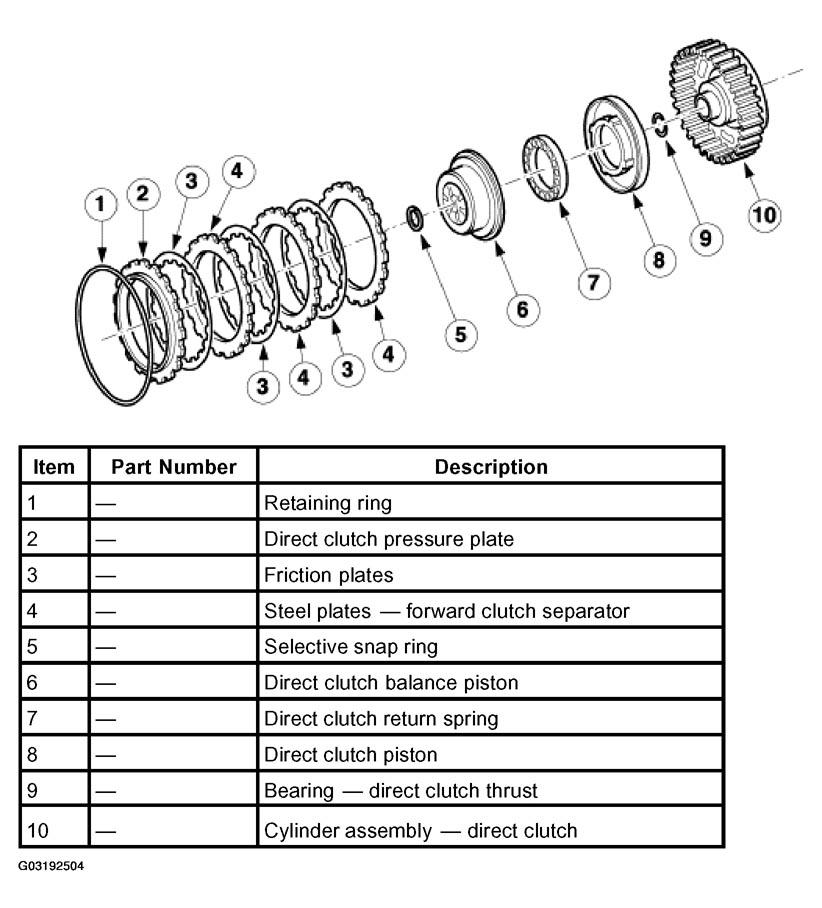

Fig 1: Identifying Direct Clutch Components

G03192504

Courtesy of FORD MOTOR CO.
