Automatic Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Forward Clutch
>>
Material
Forward Clutch: Material
MATERIAL SPECIFICATION
Item
Specification
Automatic Transmission Fluid XT-5-QM
MERCON® V

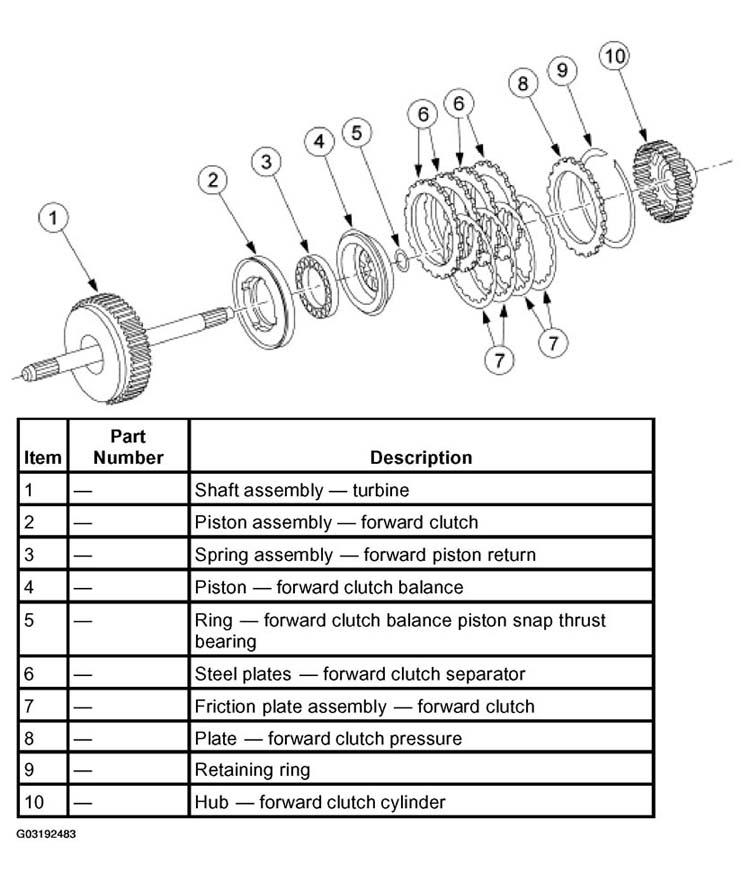

Fig 1: Exploded View Of Forward Clutch Components
Courtesy of FORD MOTOR CO.
