Fuel Pump Driver Module (FPDM): Removal

  1. Pull up the rear seat.
  2. Position the floor covering to one side.
  3. Remove the fuel pump driver module (FPDM).
    1. Disconnect the FPDM electrical connector.
    2. Remove the FPDM.

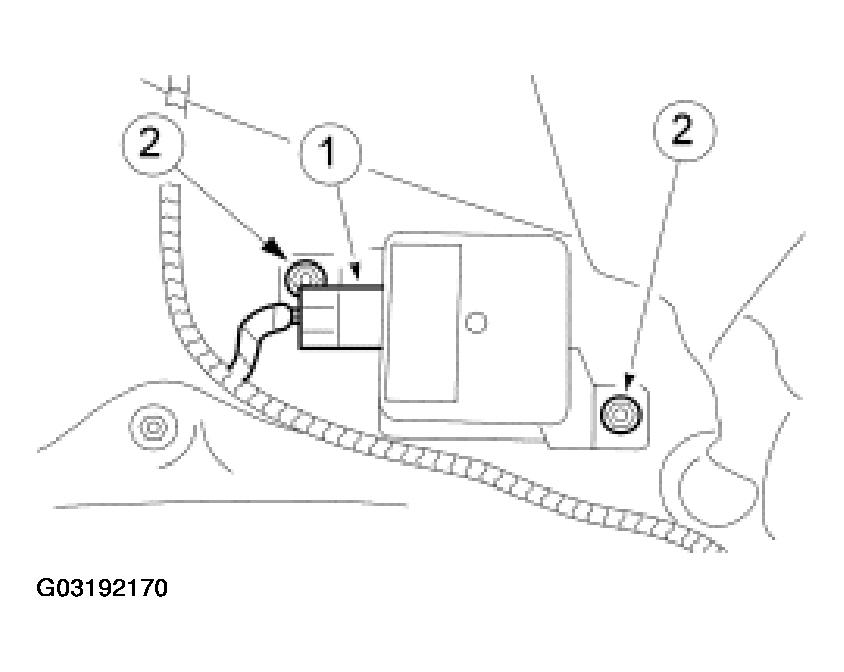

    Fig 1: Removing Fuel Pump Driver Module (FPDM)
    G03192170Courtesy of FORD MOTOR CO.
