Brake Shift Interlock Actuator: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Disconnect the overdrive (O/D) switch electrical connector (selector lever assembly removed shown).

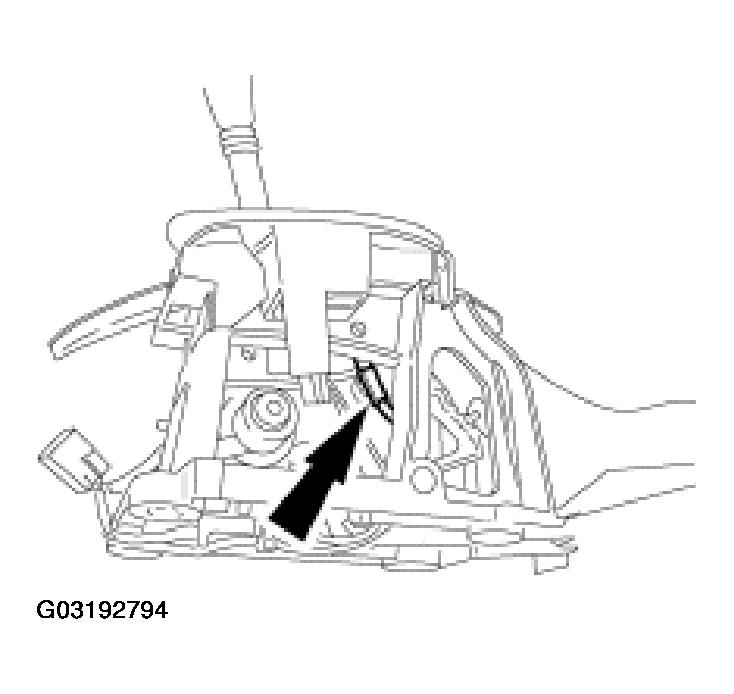

    Fig 1: Disconnecting Overdrive (O/D) Switch Electrical Connector
    G03192794Courtesy of FORD MOTOR CO.
  3. Remove the shift interlock actuator.
    1. Remove the bolt.
    2. Pull off the knob.
    3. Pull out of the push rod.

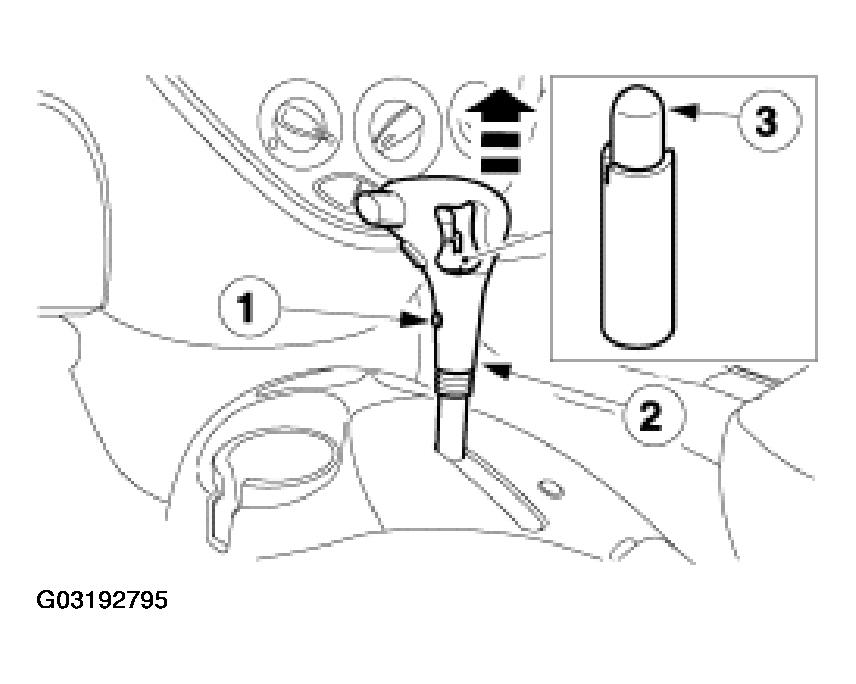

    Fig 2: Removing Shift Interlock Actuator
    G03192795Courtesy of FORD MOTOR CO.
