Automatic Transmission
>>
Description And Operation
>>
Transaxle Description
>>
Case Assembly
Case Assembly

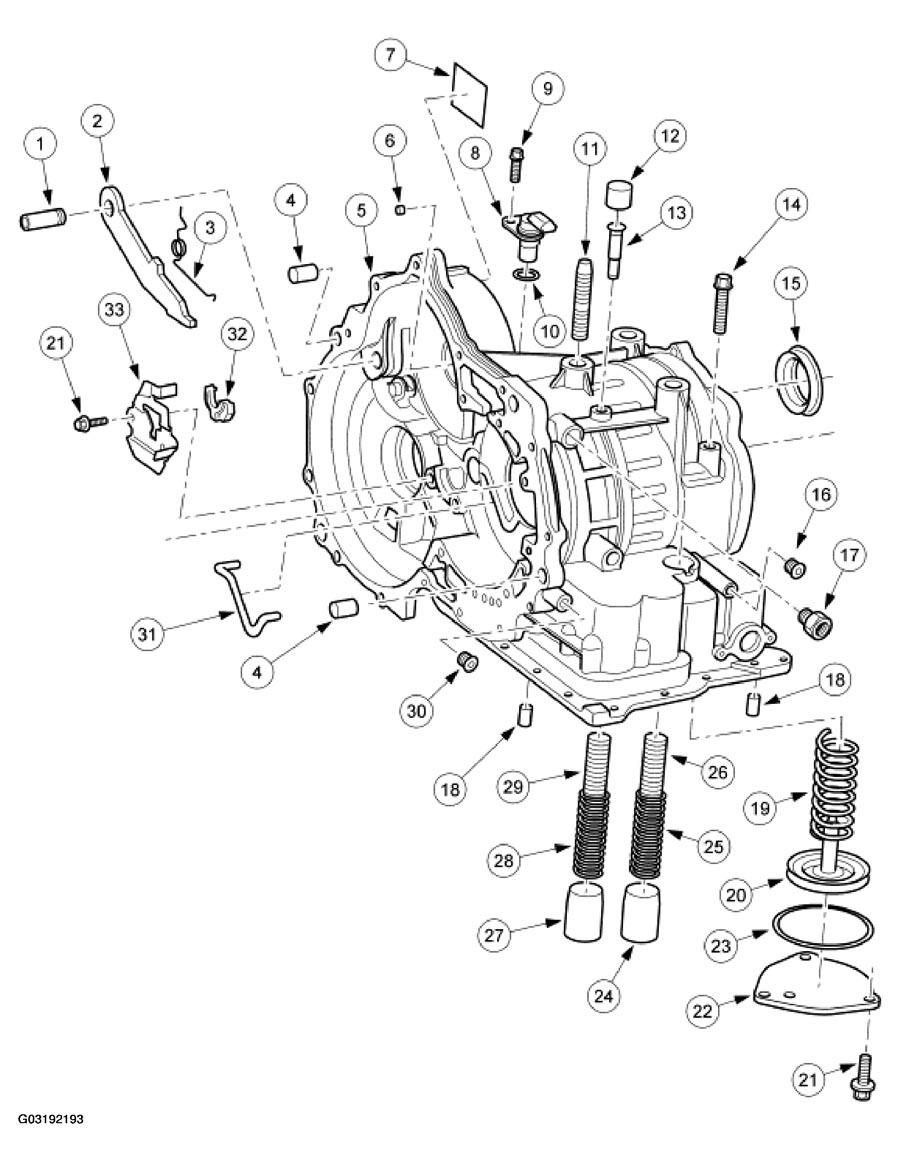

Fig 1: Identifying Case Assembly Components (1 Of 2)
Courtesy of FORD MOTOR CO.

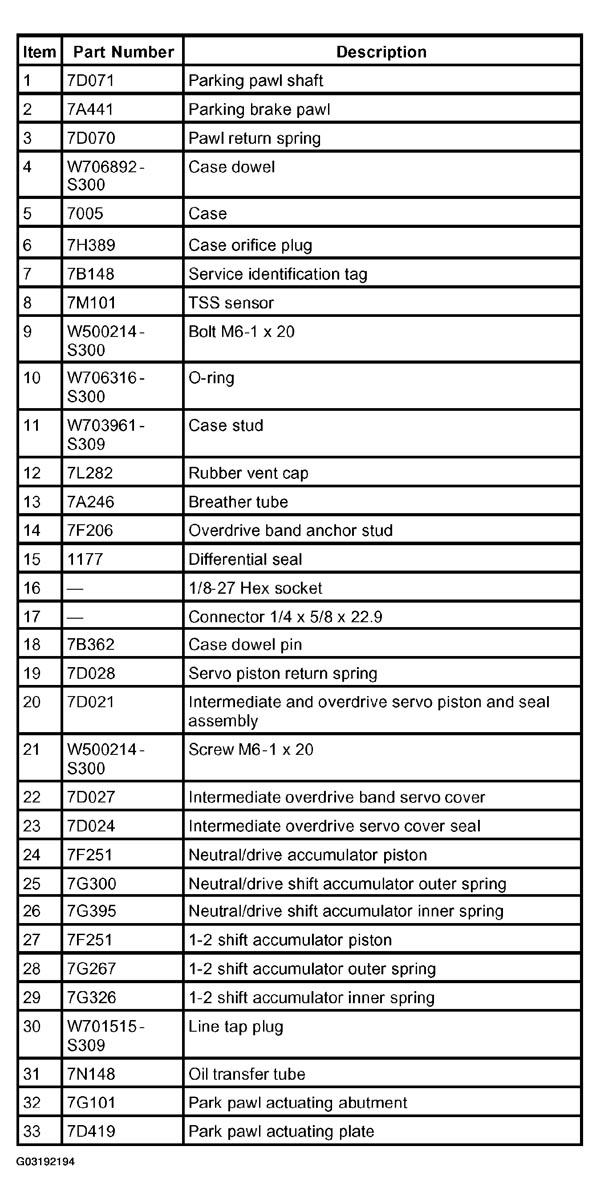

Fig 2: Identifying Case Assembly Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
