In-Vehicle Repair: Flywheel: Installation

NOTE: Engine balancing is not required. Balance weights should not be installed on the new flywheel.
NOTE: Special bolts are used for installation. Do not use standard bolts.
  1. Inspect the pilot bearing. Install a new pilot bearing as necessary.
  2. Install the flywheel.
  3. Install the special tool.

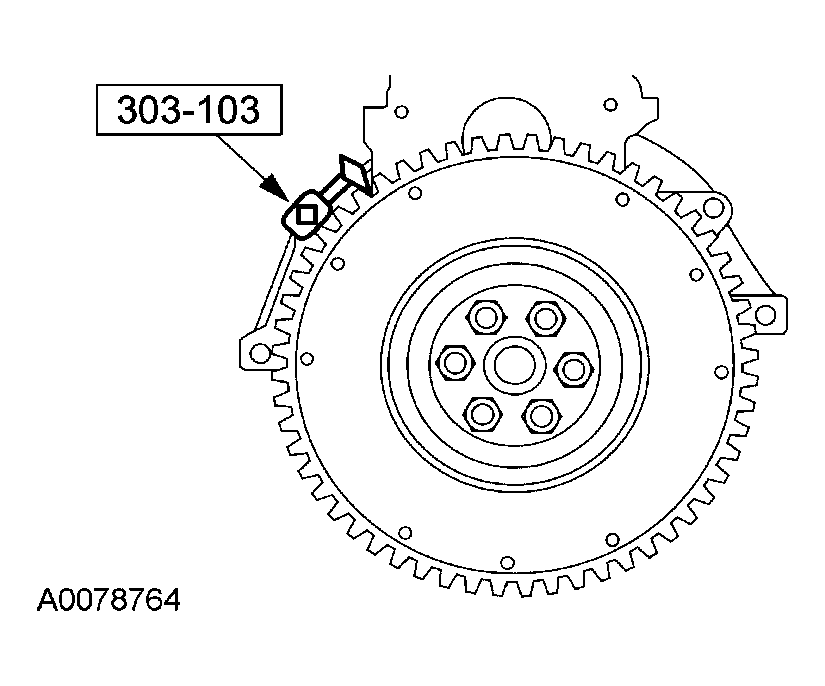

    Fig 1: Installing Special Tool
    G04035576Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown in three stages.
    • Stage 1: Tighten to 50 Nm (37 lb-ft).
    • Stage 2: Tighten to 80 Nm (50 lb-ft).
    • Stage 3: Tighten to 112 Nm (83 lb-ft).

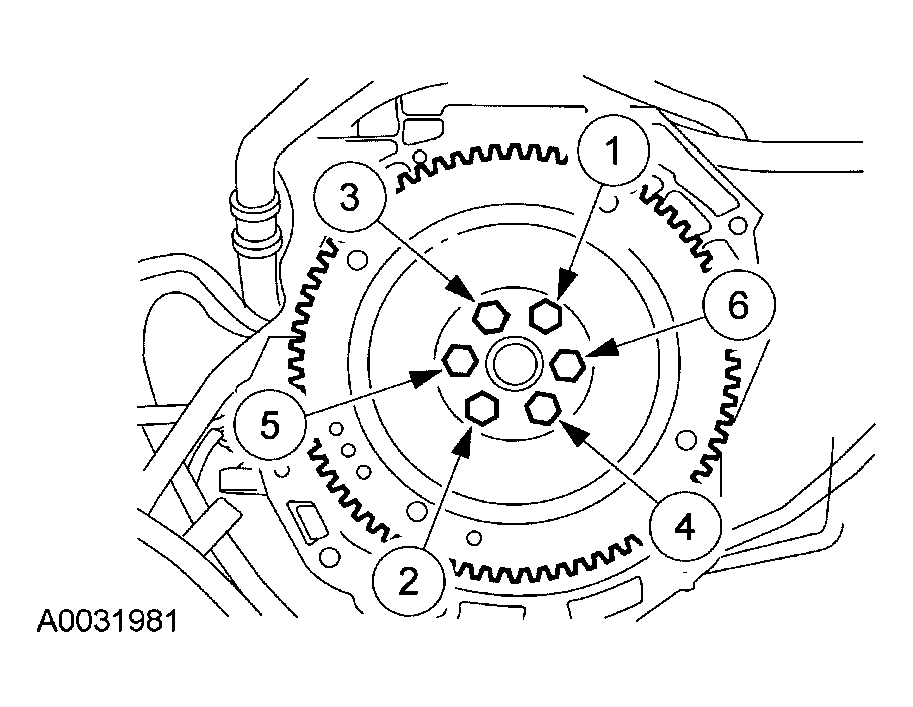

    Fig 2: Tightening Flywheel Bolts In Sequence
    G04035577Courtesy of FORD MOTOR CO.
  5. Install the clutch assembly. For additional information, refer to CLUTCH - MTX75 TRANSAXLE .
  6. Install the transmission. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION - MTX75 .
