Focus ZTS, 2.3 Z, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component Testing
>>
Multifunction switch
Multifunction switch

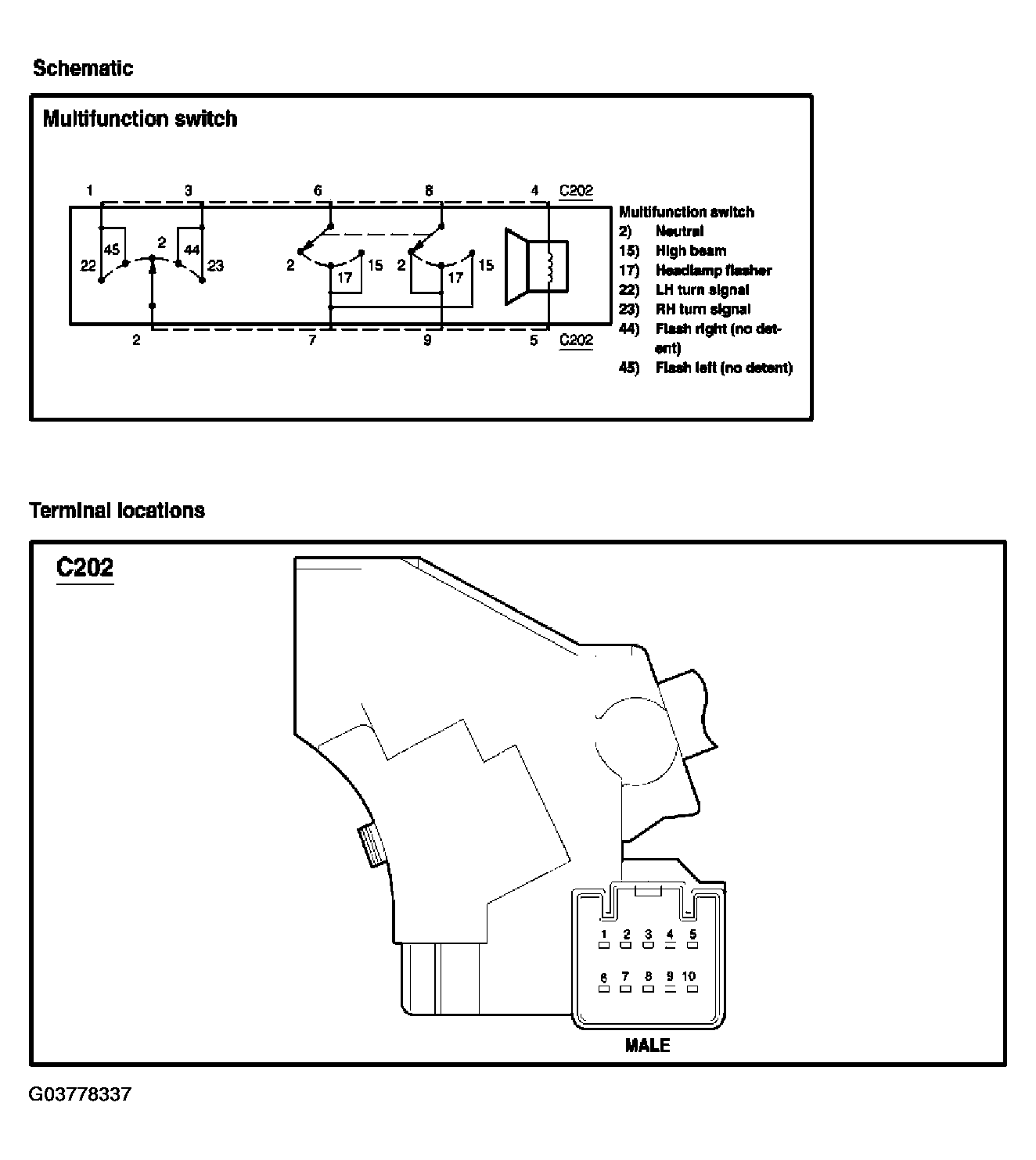

Fig 1: Testing Multifunction Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

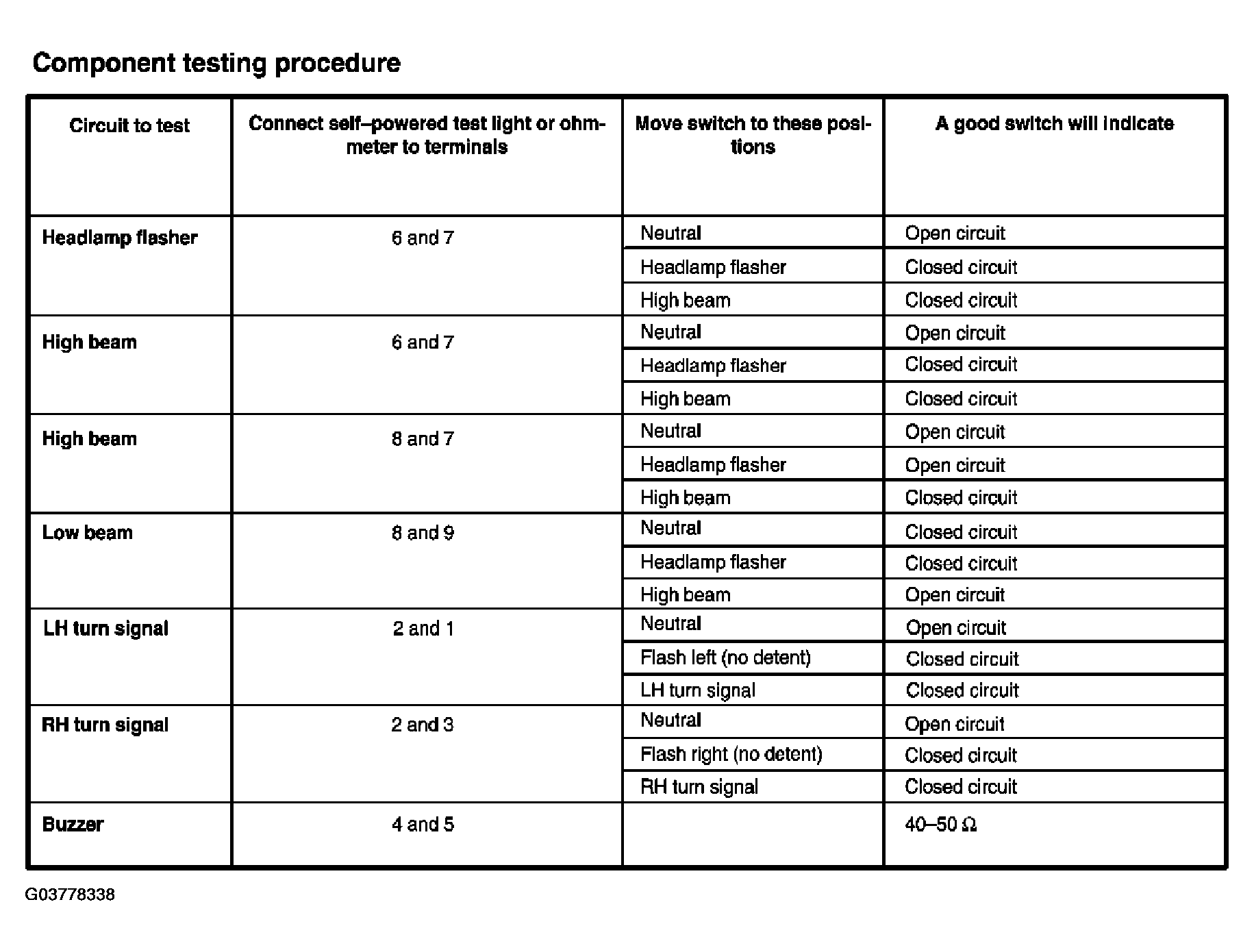

Fig 2: Testing Multifunction Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
