Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Place a drain pan beneath the output shaft speed (OSS) sensor.
Remove the OSS sensor.
- Disconnect the electrical connector.
- Remove the bolt.
- Inspect the OSS bore.

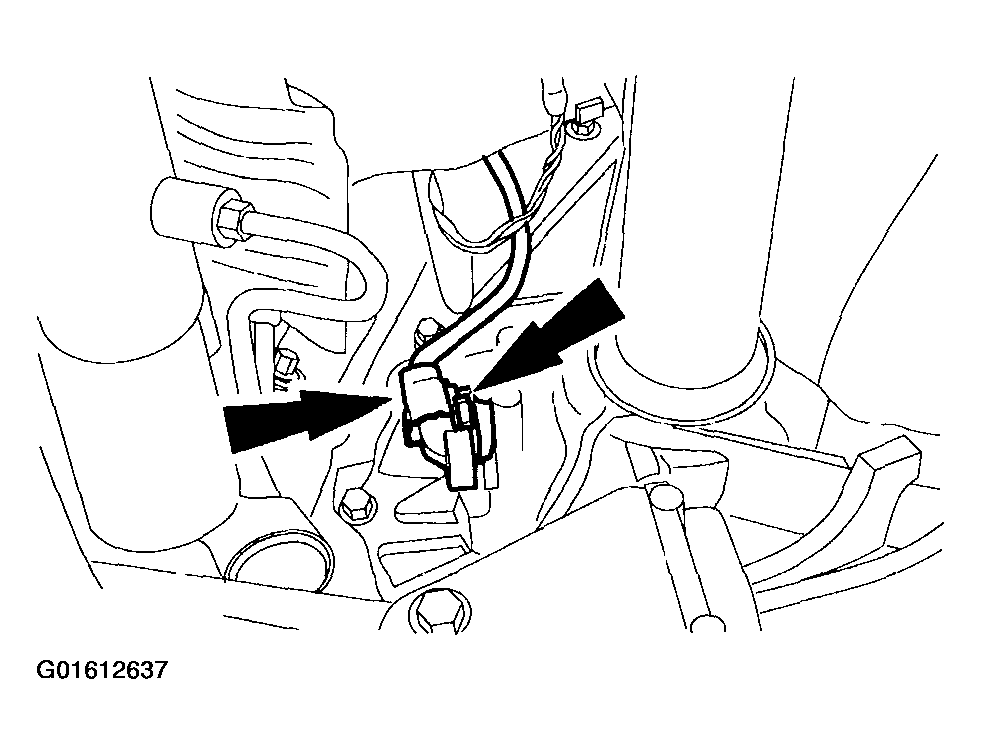

Fig 1: Removing OSS Sensor
Courtesy of FORD MOTOR CO.
Inspect the O-ring seal for nicks or cuts; install a new O-ring if necessary.

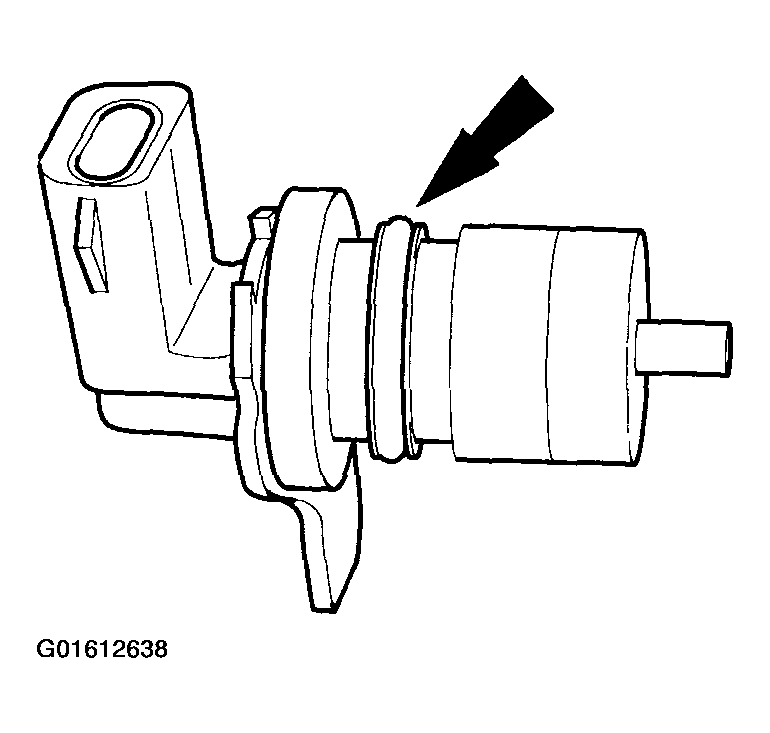

Fig 2: Inspecting O-Ring Seal For Nicks Or Cuts
Courtesy of FORD MOTOR CO.
