Pinpoint Tests - OSC Equipped Vehicles: Notes

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

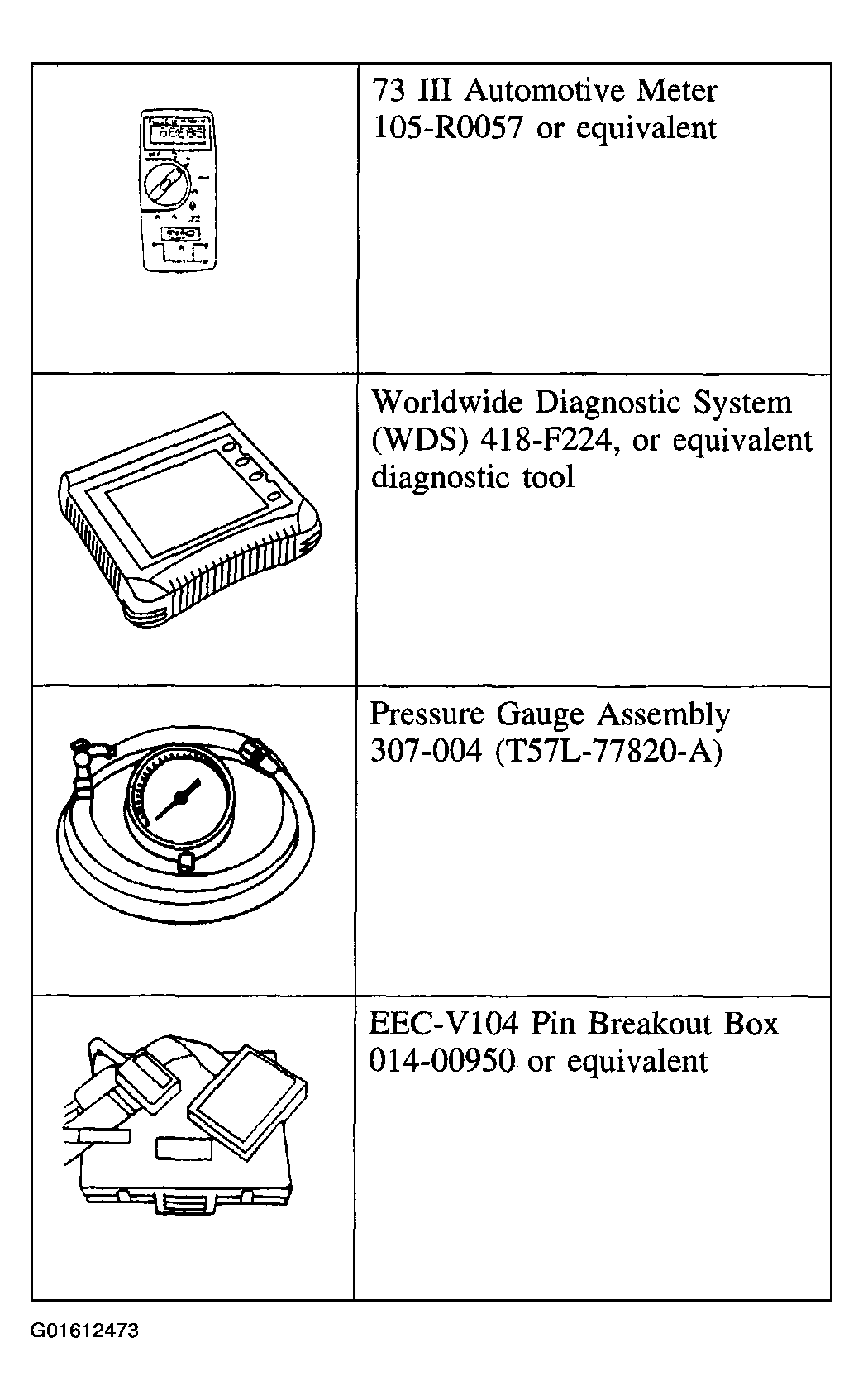

Fig 1: Identifying Special Tools For Pinpoint Tests

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for terminal condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install new as necessary.
