Camshaft Surface Inspection

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the camshaft lobes for pitting or damage in the active area. Minor pitting is acceptable outside the active area.

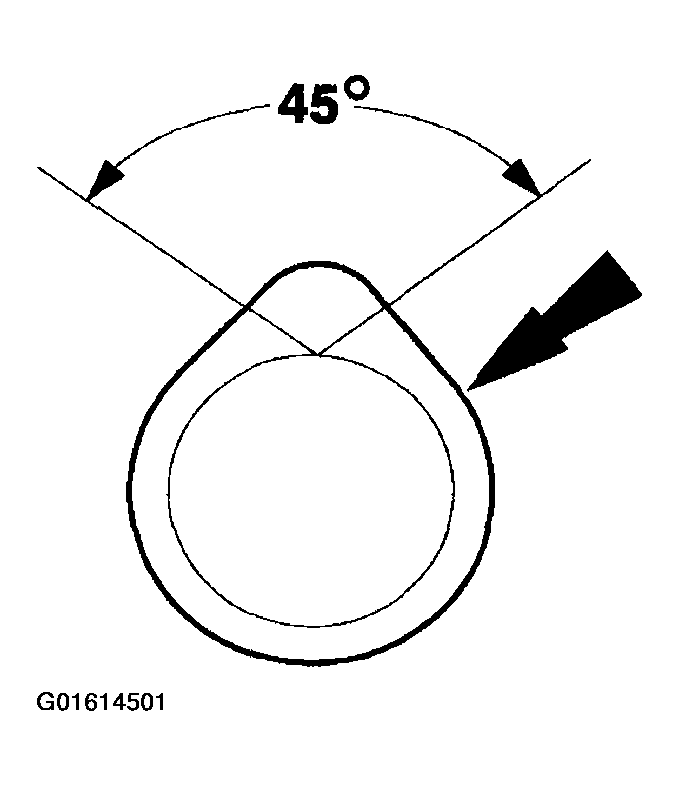

Fig 1: Inspecting Camshaft Lobes For Pitting Or Damage
Courtesy of FORD MOTOR CO.
