Steering Gear Bushing: Installation

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the new bushing with a suitable rubber lubricant.

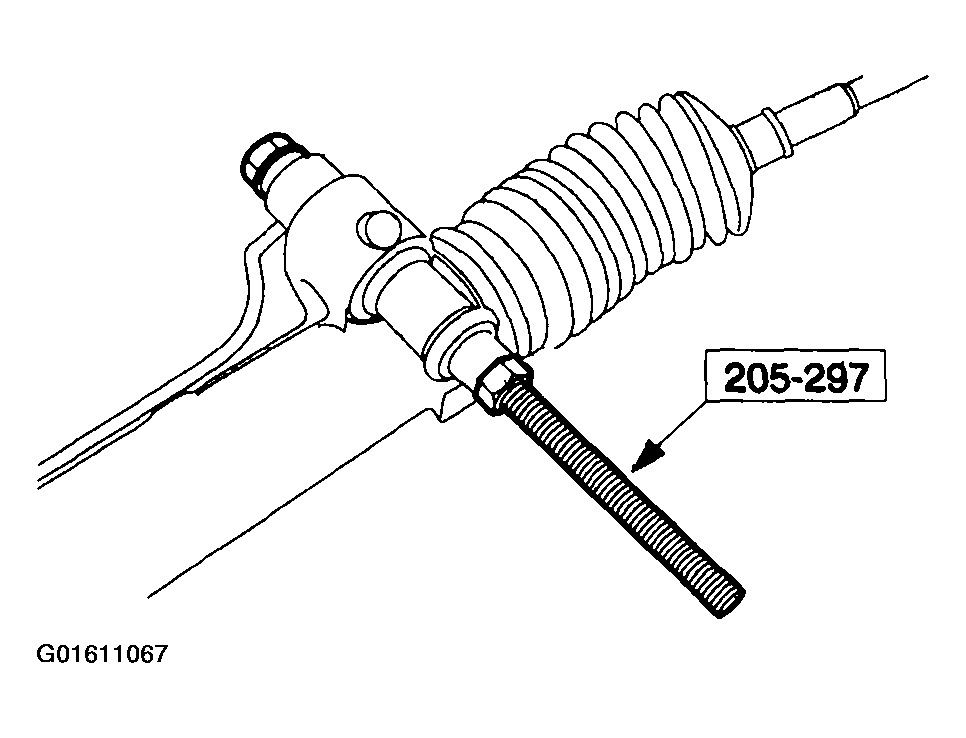

Fig 1: Installing Insulator Bushings

Courtesy of FORD MOTOR CO.

Using the special tool, install new insulator bushings.
Using the special tools, make sure the insulator bushings are installed to the correct depth.

Fig 2: Installing Insulator Bushings To Correct Depth
Courtesy of FORD MOTOR CO.
Install the steering gear. For additional information, refer to STEERING GEAR .
