Rear Seat Backrest: Disassembly

All Vehicles

Lift the rear seat cushion.

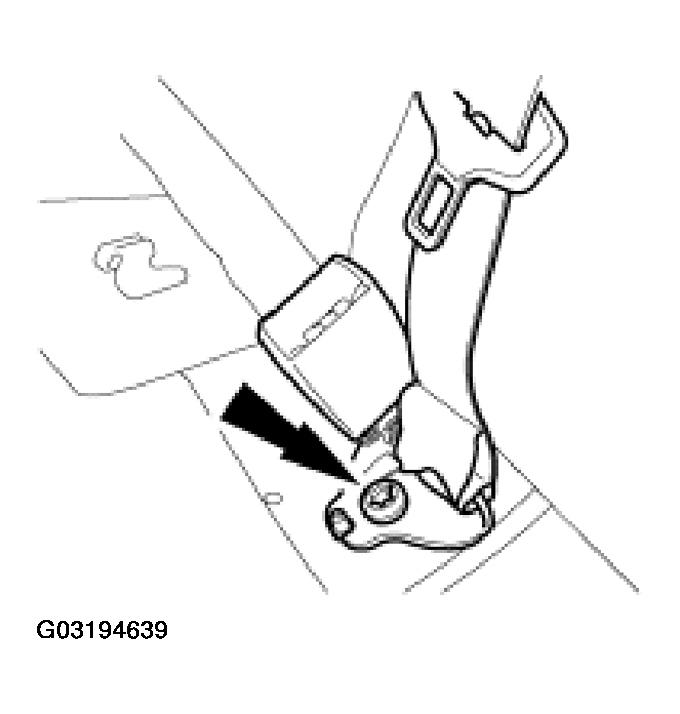

Detach the center rear safety belt lower anchor.

Fig 1: Detaching Center Rear Safety Belt Lower Anchor
Courtesy of FORD MOTOR CO.

3-Door And Wagon

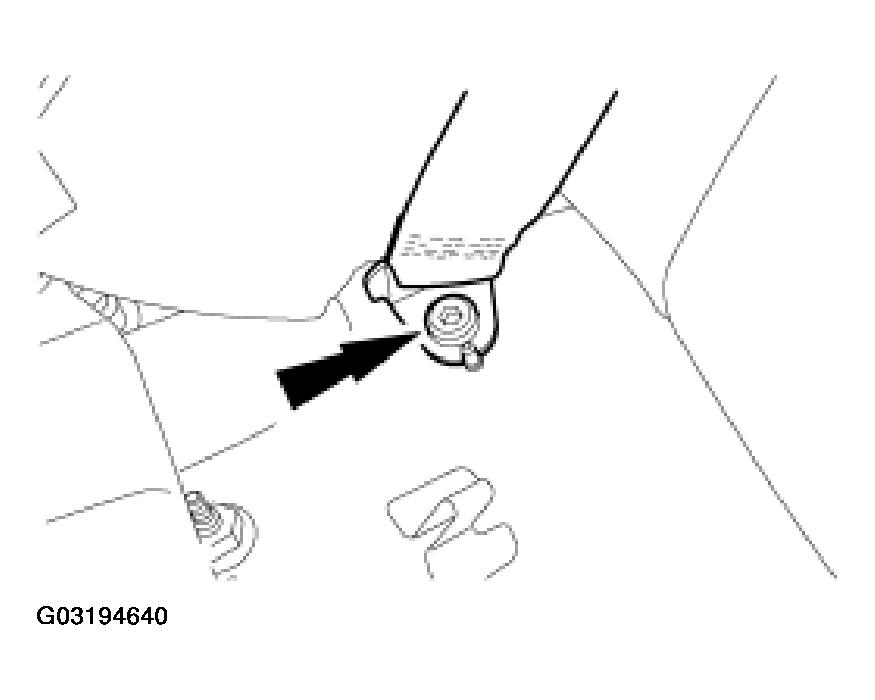

Detach both outer safety belt lower anchors.

Fig 2: Detaching Outer Safety Belt Lower Anchors
Courtesy of FORD MOTOR CO.
Detach the safety belt webbing from the top of the backrest.
- Feed the safety belt webbing through the elastic loops.
Fig 3: Detaching Safety Belt Webbing From Top Of Backrest
Courtesy of FORD MOTOR CO.

All Vehicles

Remove the rear seat backrest.

Fig 4: Removing Rear Seat Backrest
Courtesy of FORD MOTOR CO.
Remove the head restraints.

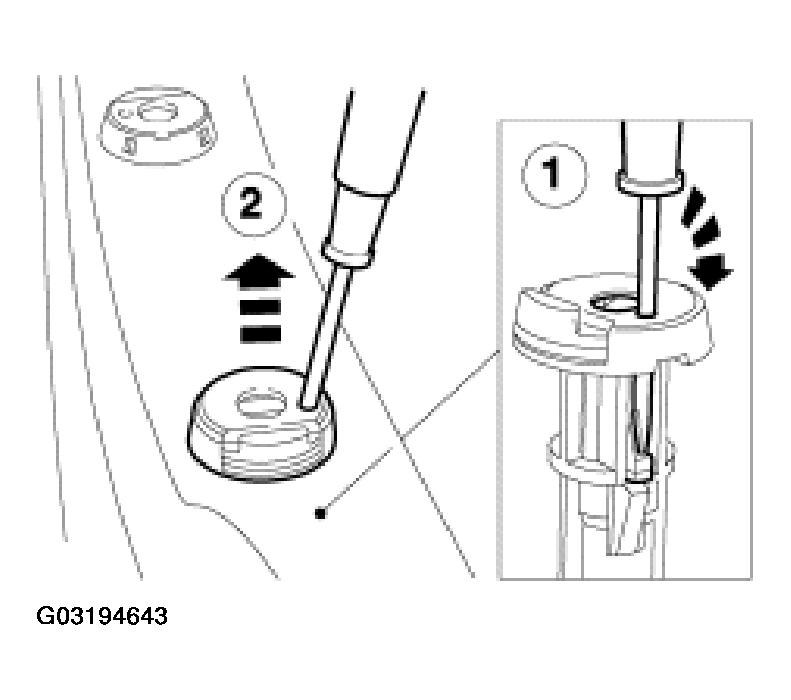

Remove the head restraint guides.
1. Using a suitable screwdriver, depress the locking tang.
2. Lift the head restraint guide.

  Fig 5: Removing Head Restraint Guides
  Courtesy of FORD MOTOR CO.
Remove the rear seat backrest carpet.

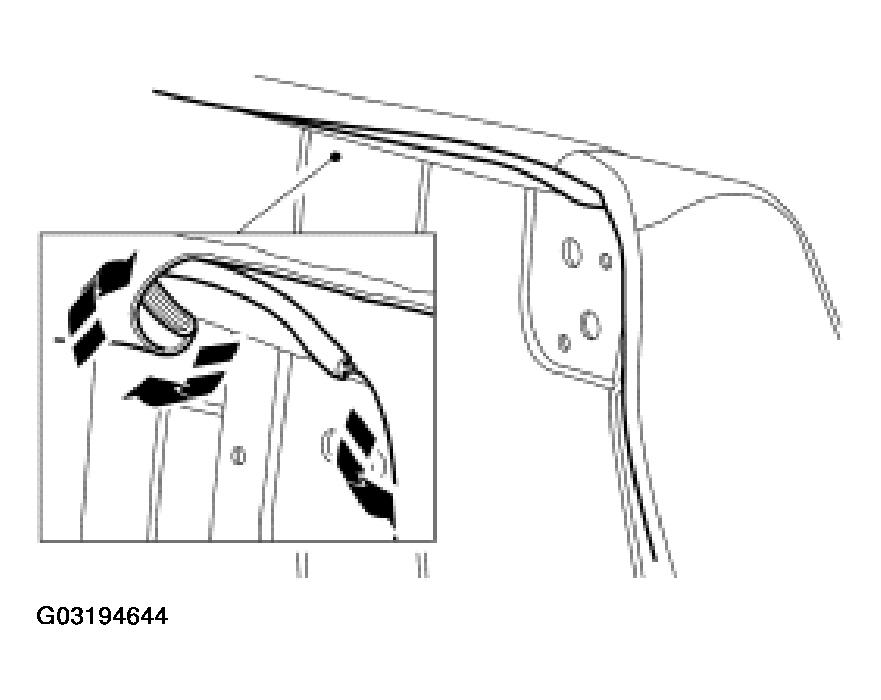

Detach the backrest cover retaining strip.

Fig 6: Detaching Backrest Cover Retaining Strip
Courtesy of FORD MOTOR CO.

3-Door And Wagon

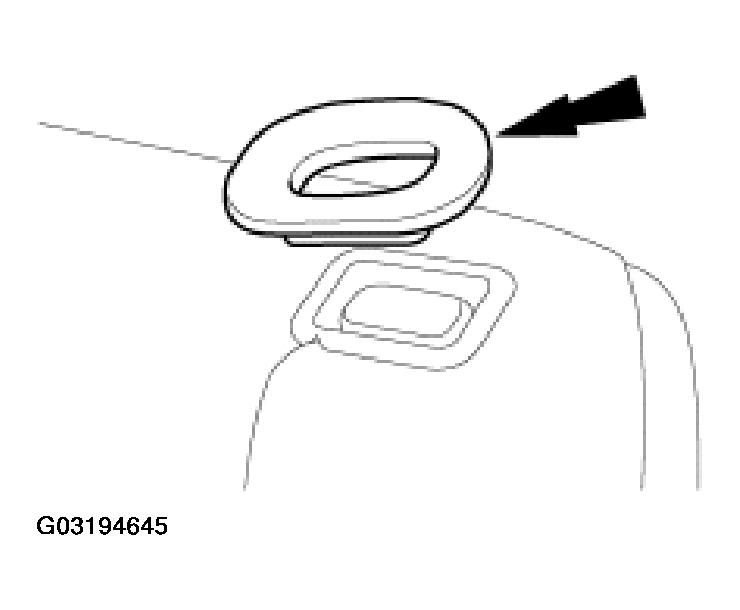

Remove the backrest release button surround (if equipped).

Fig 7: Removing Backrest Release Button Surround
Courtesy of FORD MOTOR CO.

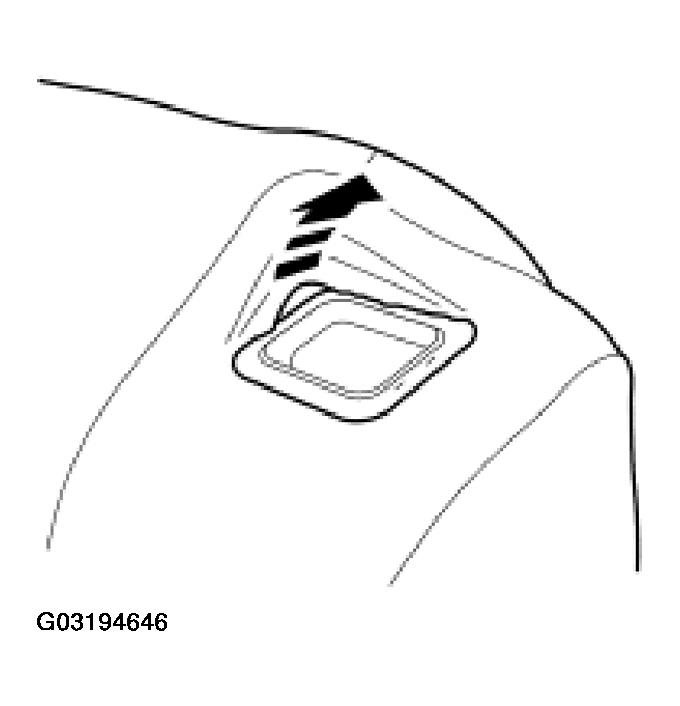

Detach the backrest cover from the backrest release button (if equipped).

Fig 8: Detaching Backrest Cover From Backrest Release Button
Courtesy of FORD MOTOR CO.
Detach the foam pad from the backrest release button (if equipped).

Fig 9: Detaching Foam Pad From Backrest Release Button
Courtesy of FORD MOTOR CO.

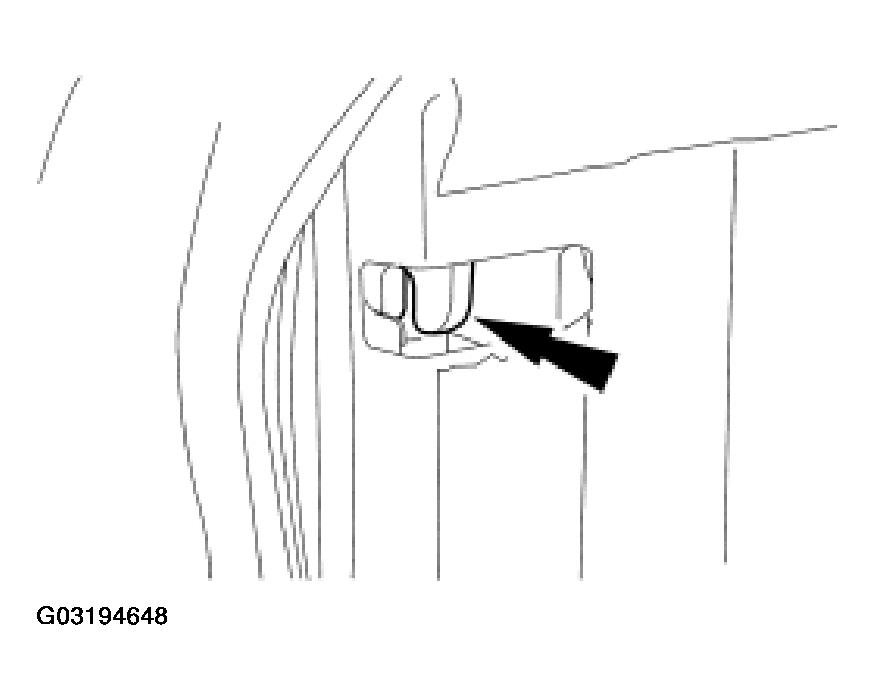

NOTE: Locking off the backrest latch allows the safety belt to be moved when the backrest is in its normal upright position.

Fig 10: Locking Off Backrest Latch

Courtesy of FORD MOTOR CO.

All Vehicles

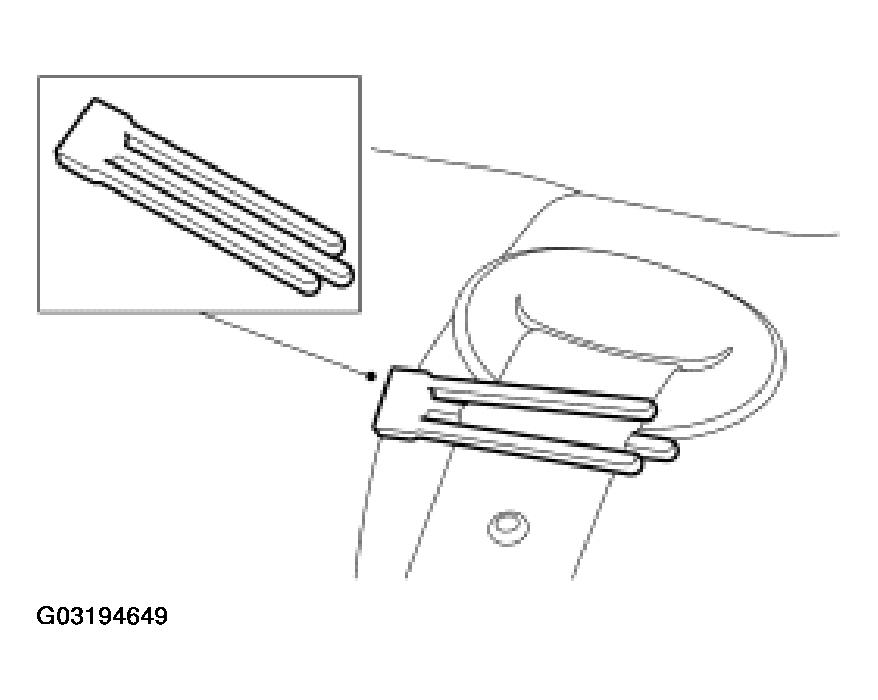

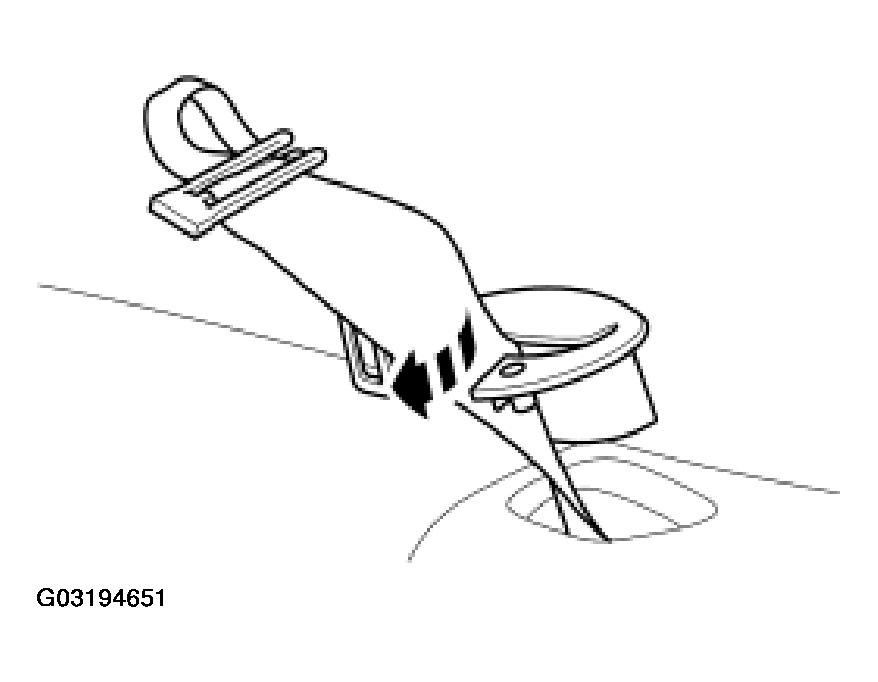

NOTE: The safety belt webbing retainer is supplied with new safety belts. Do not use any other retaining method.

Fig 11: Installing Safety Belt Webbing Retainer

Courtesy of FORD MOTOR CO.

Install the safety belt webbing retainer.

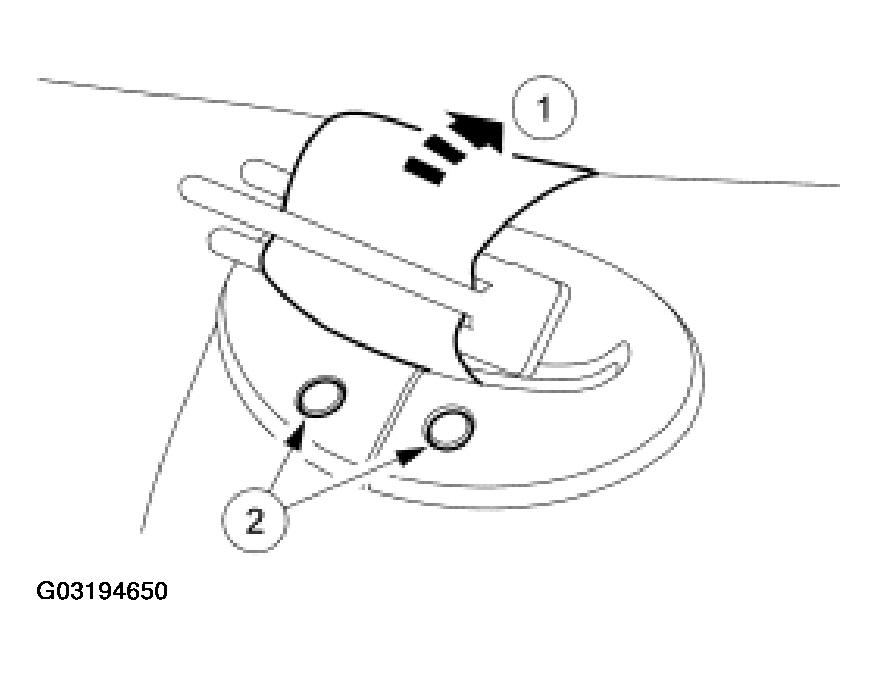

Detach the center rear safety belt guide.
1. Move the safety belt webbing to access the retainers.
2. Drill out the rivets.

  Fig 12: Detaching Center Rear Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the center safety belt guide.

Fig 13: Removing Center Safety Belt Guide
Courtesy of FORD MOTOR CO.

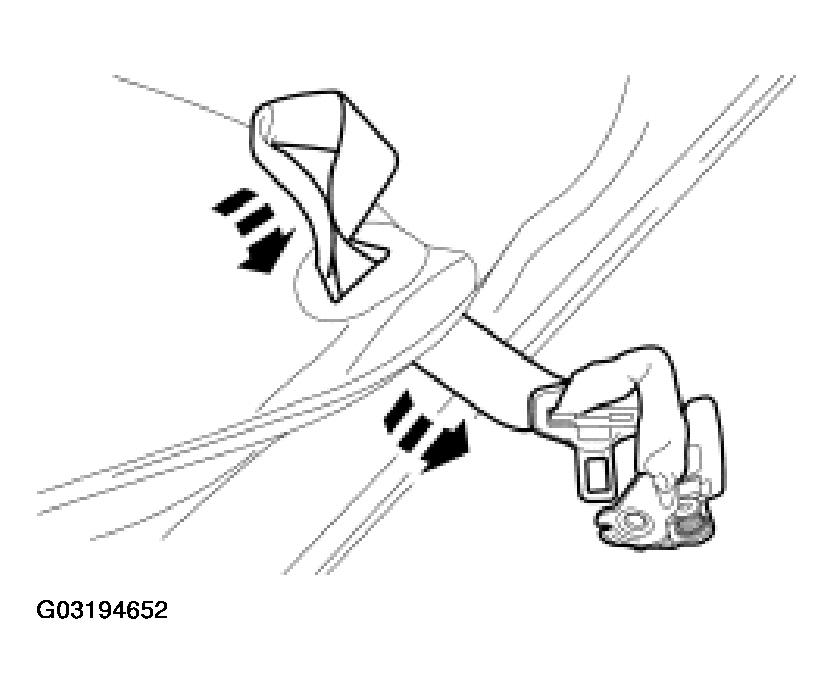

Detach the center rear safety belt webbing from the seat cover and foam pad.

Fig 14: Detaching Center Rear Safety Belt Webbing From Seat Cover And Foam Pad
Courtesy of FORD MOTOR CO.

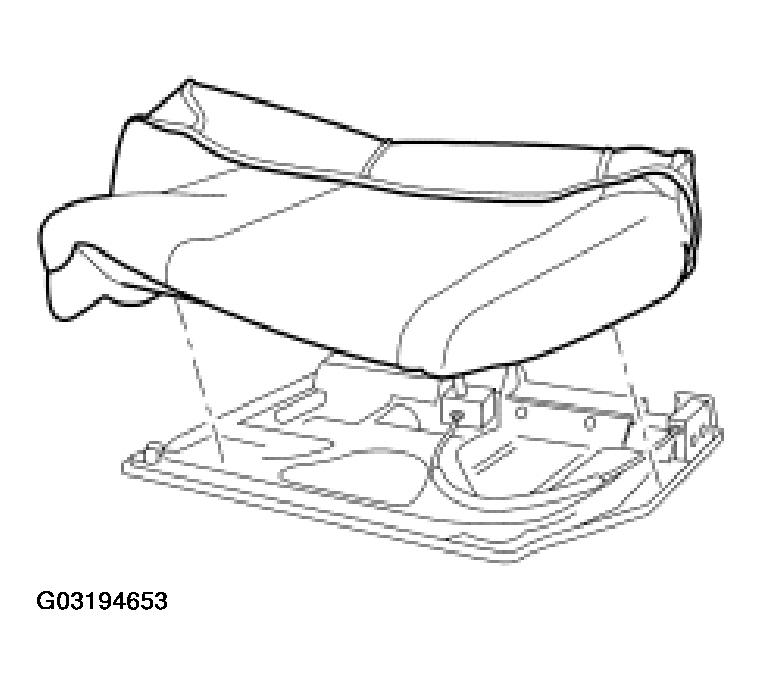

Remove the seat cover and foam pad.

Fig 15: Removing Seat Cover And Foam Pad
Courtesy of FORD MOTOR CO.

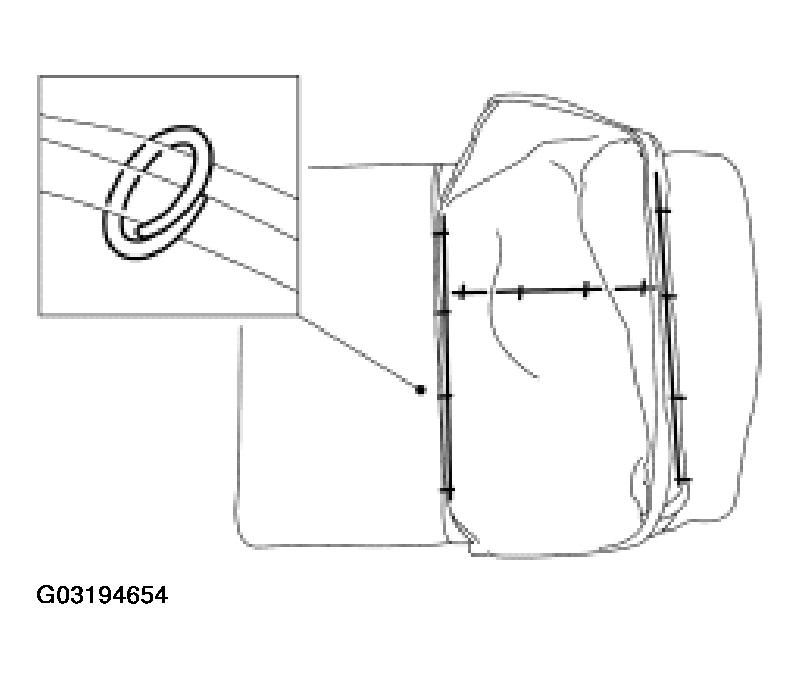

Cut the seat cover from the foam pad.
- Remove the twelve hog rings.

  Fig 16: Cutting Seat Cover From Foam Pad
  Courtesy of FORD MOTOR CO.
