Windshield Glass: Removal

WARNING: To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.

To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle. Failure to follow these instructions may result in personal injury.
Remove the A-pillar trim panels. For additional information, refer to A-PILLAR TRIM PANEL .
If equipped, remove the overhead console. For additional information, refer to OVERHEAD CONSOLE .
If equipped, remove the interior lamp.
- Disconnect the electrical connectors.

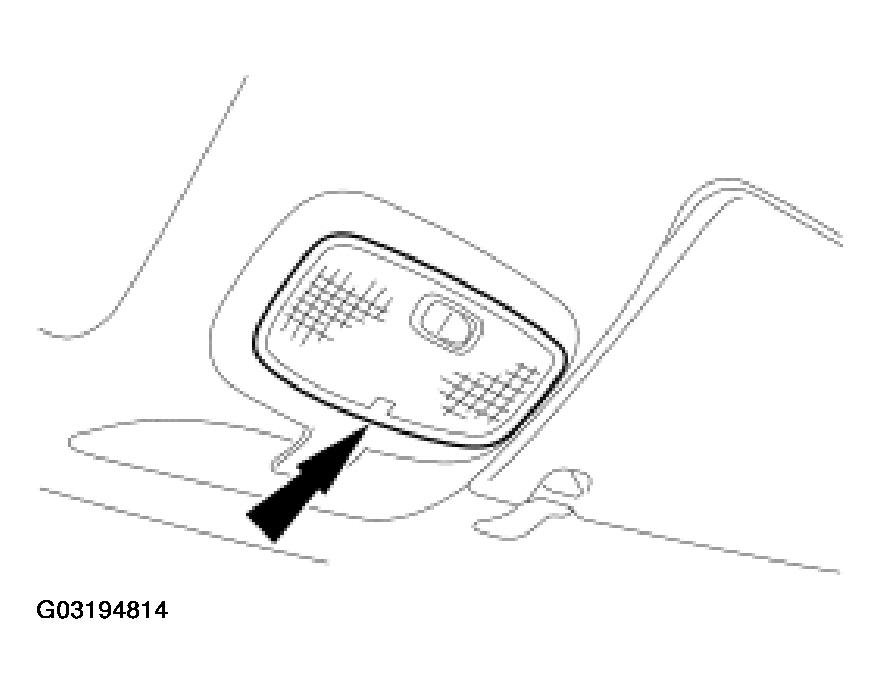

  Fig 1: Removing Interior Lamp
  Courtesy of FORD MOTOR CO.
Remove the interior mirror.

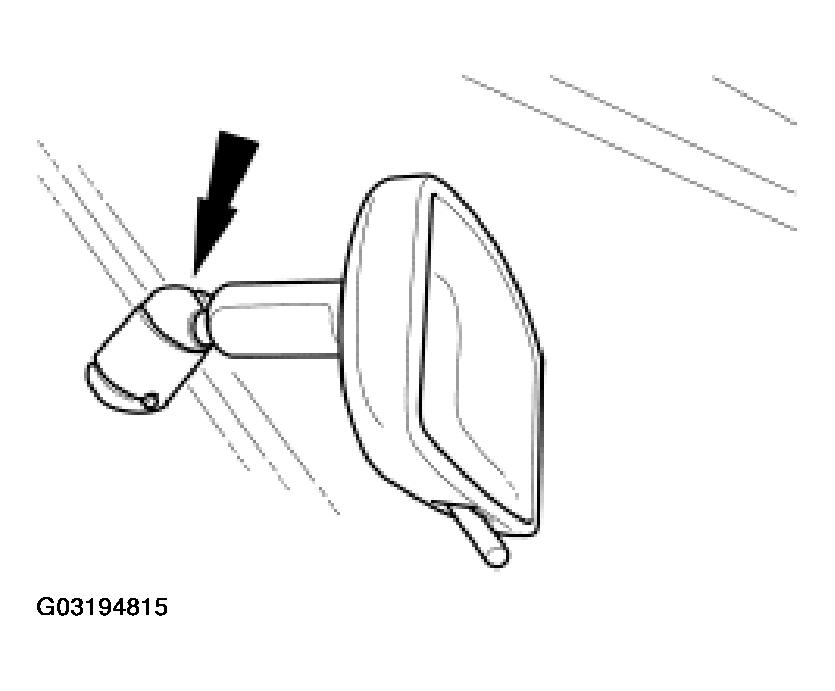

Fig 2: Removing Interior Mirror
Courtesy of FORD MOTOR CO.
Remove the screws and the sun visors.

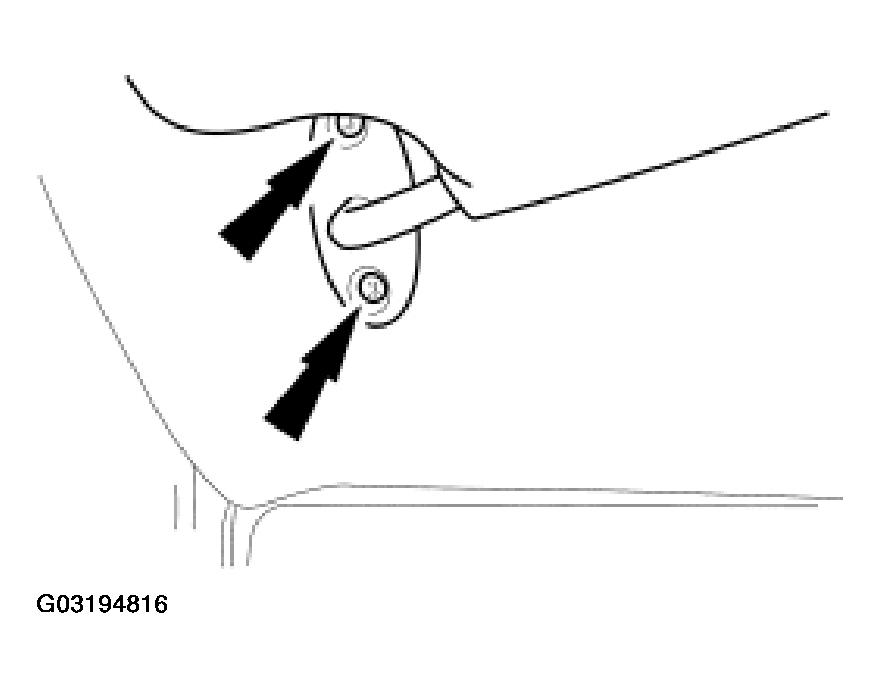

Fig 3: Removing Screws And Sun Visors
Courtesy of FORD MOTOR CO.
Remove the sun visor retaining clips.
1. Open the covers.
2. Remove the screws.

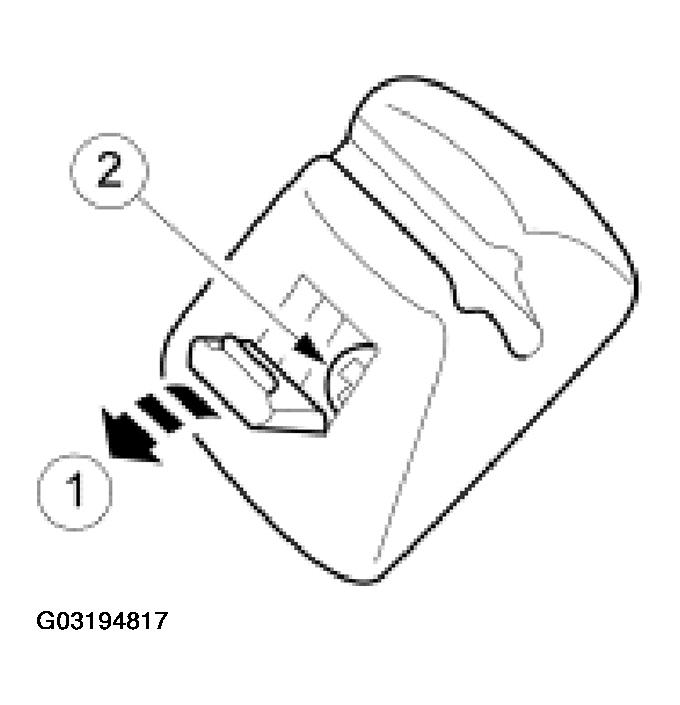

Fig 4: Removing Sun Visor Retaining Clip Screws
Courtesy of FORD MOTOR CO.
Partially lower the headliner and place 2 blocks of suitable material between the headliner and the roof opening to act as spacers.

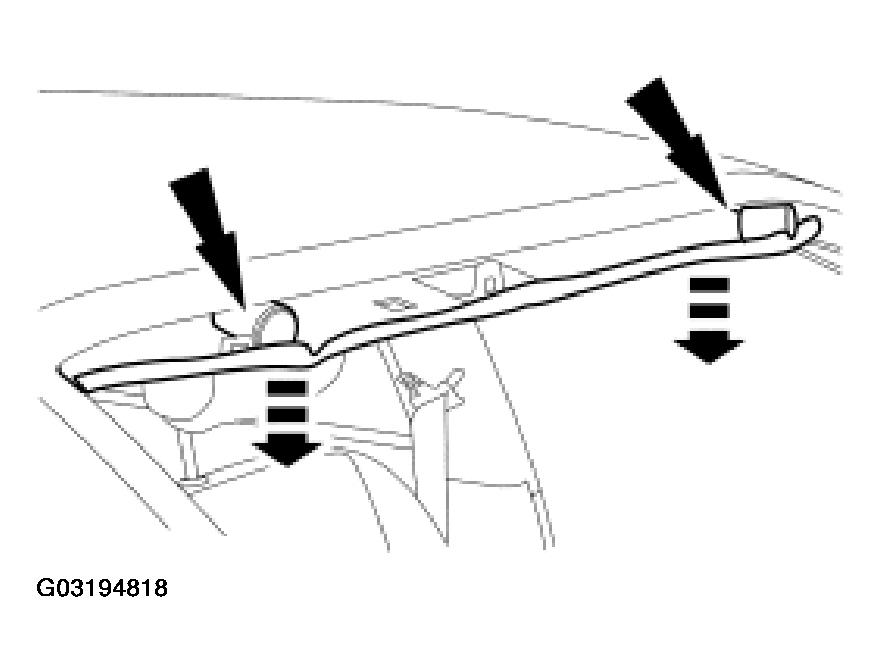

Fig 5: Placing Suitable Material Between Headliner And Roof
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the cutting blades are changed where the cutting depth changes to avoid damage to the body and trim panels.

NOTE: Some resistance may be encountered when cutting through the glass locating pegs in the lower corners of the glass.

NOTE: Lubricate the urethane adhesive with water to aid the special tool when cutting the urethane adhesive. Using the special tool, place the flat side of the knife against the rear glass.

Start at the top center and work out and down the pillars to the lower corners to the given maximum depths:
1. 23 mm
2. 75 mm
3. 160 mm

  Fig 6: Placing Flat Side Of Knife Against Rear Glass
  Courtesy of FORD MOTOR CO.
Install the special tool into the top of the windshield glass and inflate. Cut the urethane adhesive from corner to corner along the bottom of the windshield glass.

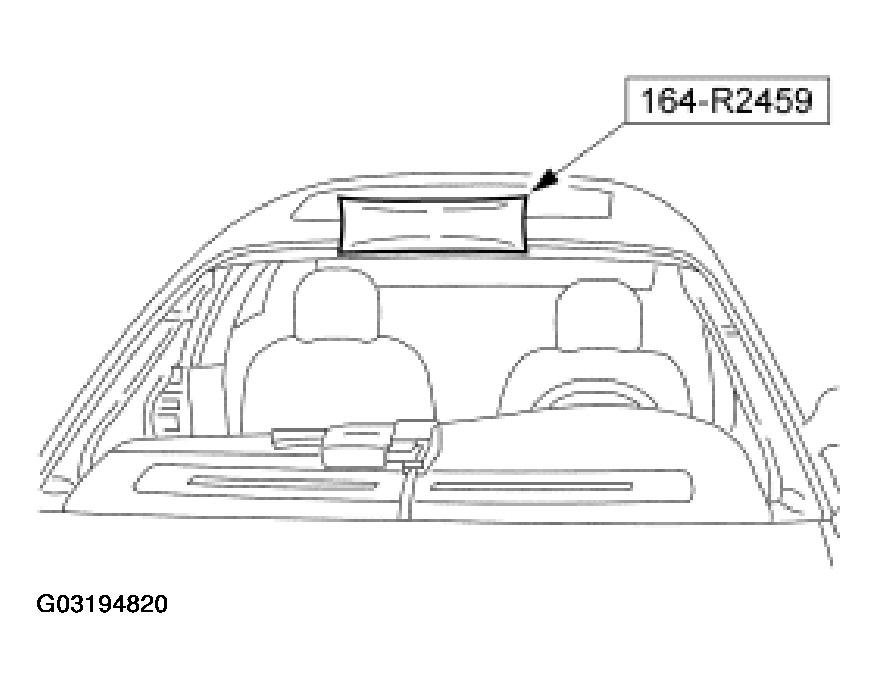

Fig 7: Installing Special Tool Into Top Of Windshield Glass
Courtesy of FORD MOTOR CO.
Remove the windshield glass and the windshield weatherstrip.
Using a soft brush or vacuum, remove any dirt or foreign material from the pinch weld.
