Rear View Mirrors

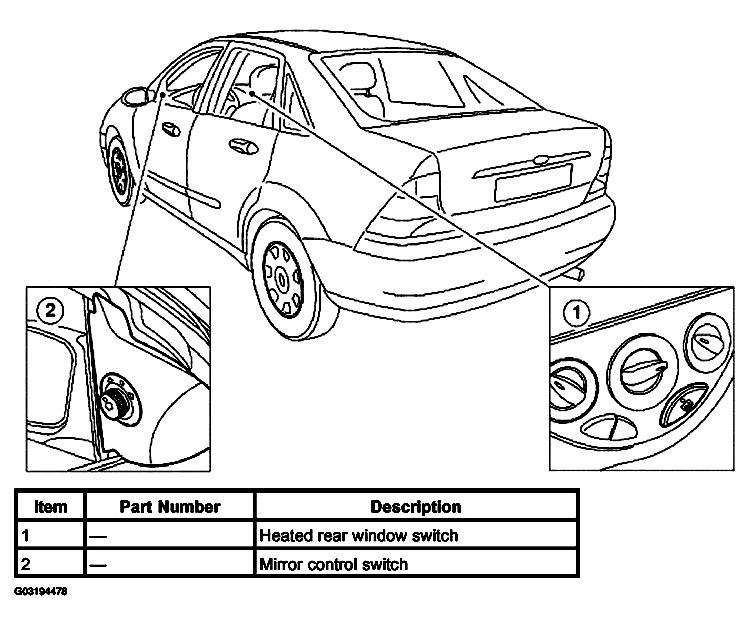

Fig 1: Identifying Rear View Mirrors
G03194478Courtesy of FORD MOTOR CO.

All models have a manual day/night interior rear view mirror

Exterior are either manual or power operated depending on vehicle specification. All power exterior mirrors are controlled by a multifunction switch mounted on the driver mirror interior trim panel. Power exterior mirrors have a heater element contained in the mirror glass which operated for the same time as the heated rear window and is activated by the heated rear window switch.
