Speed Control Cable - 2.0L: Removal

Remove the air cleaner outlet tube.

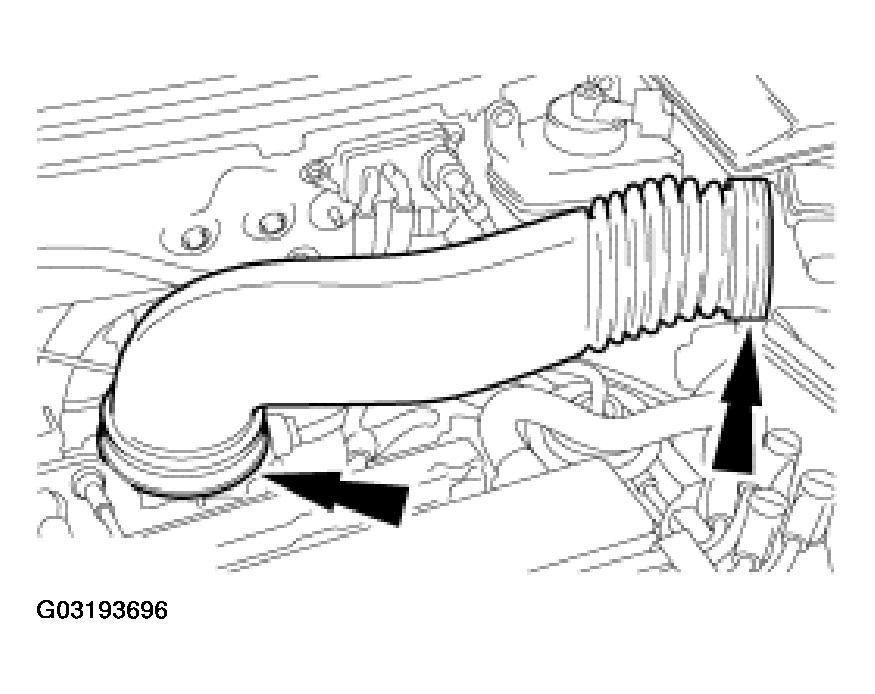

Fig 1: Removing Air Cleaner Outlet Tube
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the throttle body.

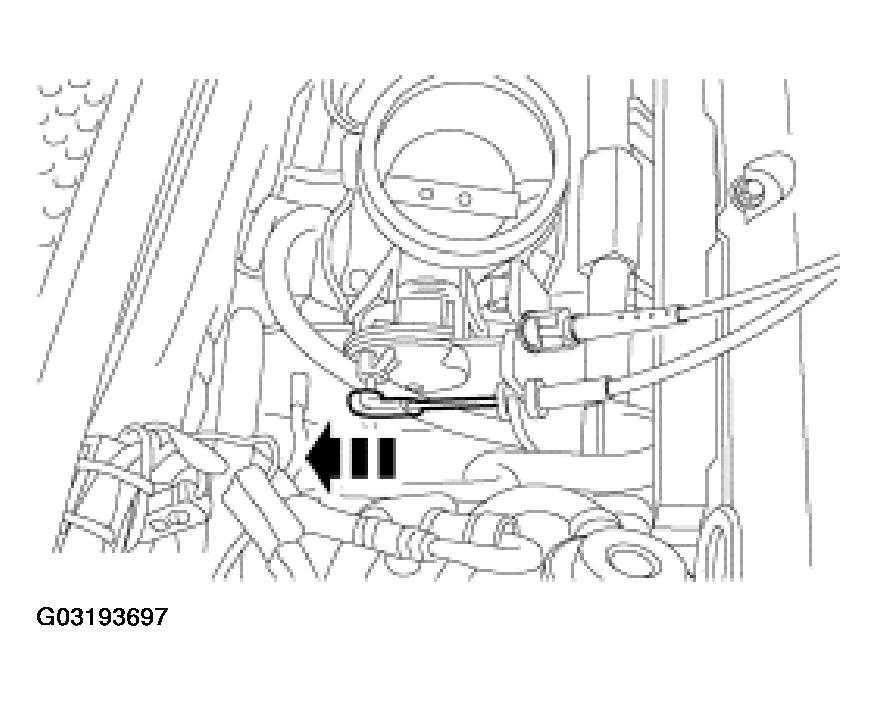

Fig 2: Disconnecting Speed Control Cable From Throttle Body
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the throttle body bracket.

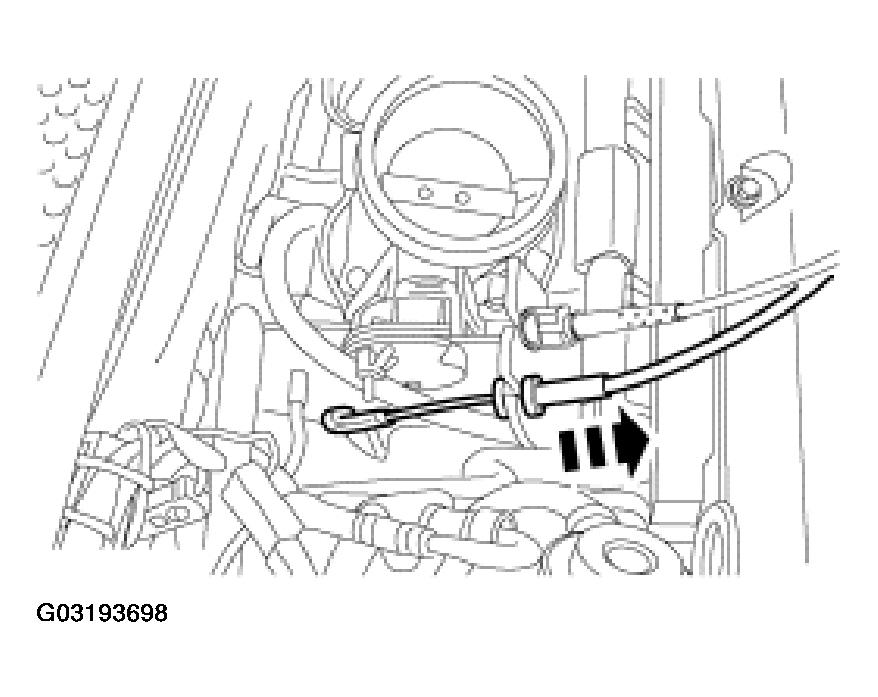

Fig 3: Disconnecting Speed Control Cable From Throttle Body Bracket
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the two clips.

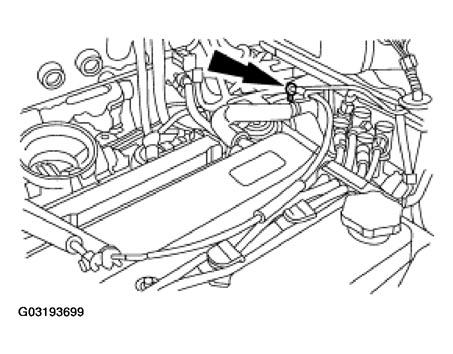

Fig 4: Disconnecting Speed Control Cable From Two Clips
Courtesy of FORD MOTOR CO.
Disconnect the speed control actuator cable cover.
- Rotate the speed control actuator cable cover counterclockwise.

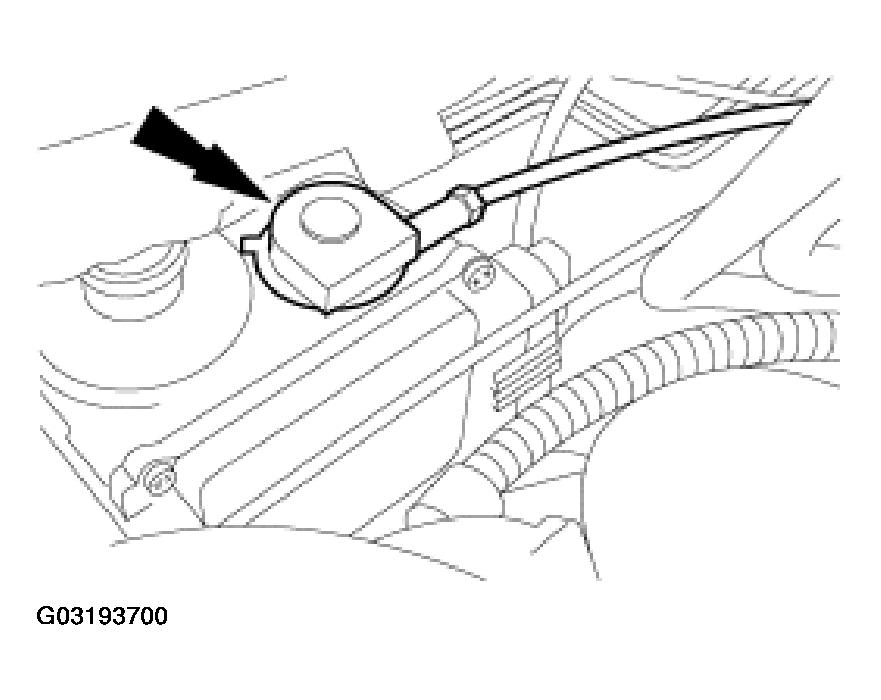

Fig 5: Disconnecting Speed Control Actuator Cable Cover
Courtesy of FORD MOTOR CO.
Remove the speed control cable from the speed control actuator pulley.

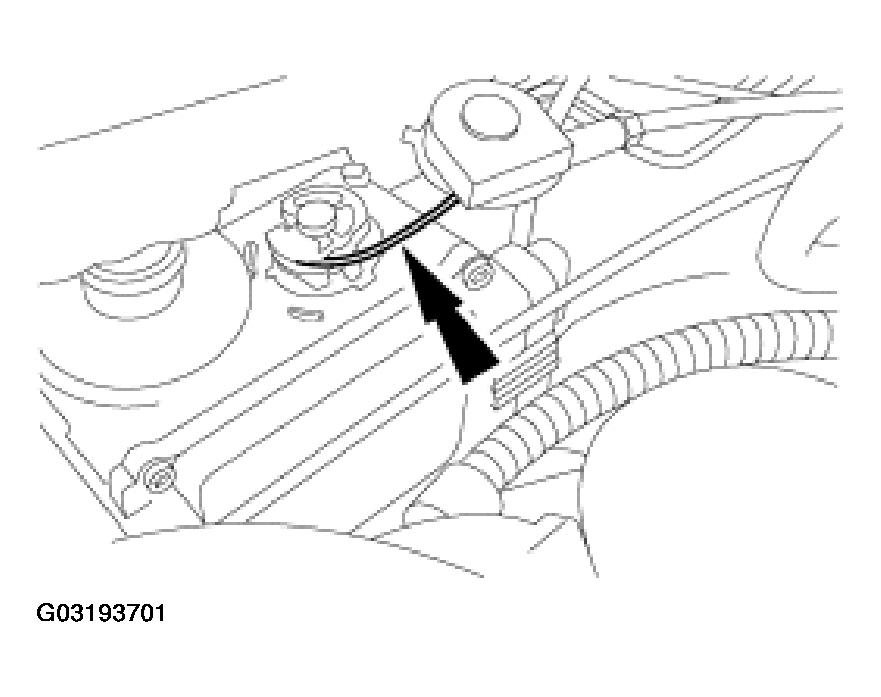

Fig 6: Removing Speed Control Cable
Courtesy of FORD MOTOR CO.
