Output Shaft Speed (OSS) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
  2. Disconnect output shaft speed (OSS) sensor electrical connector.

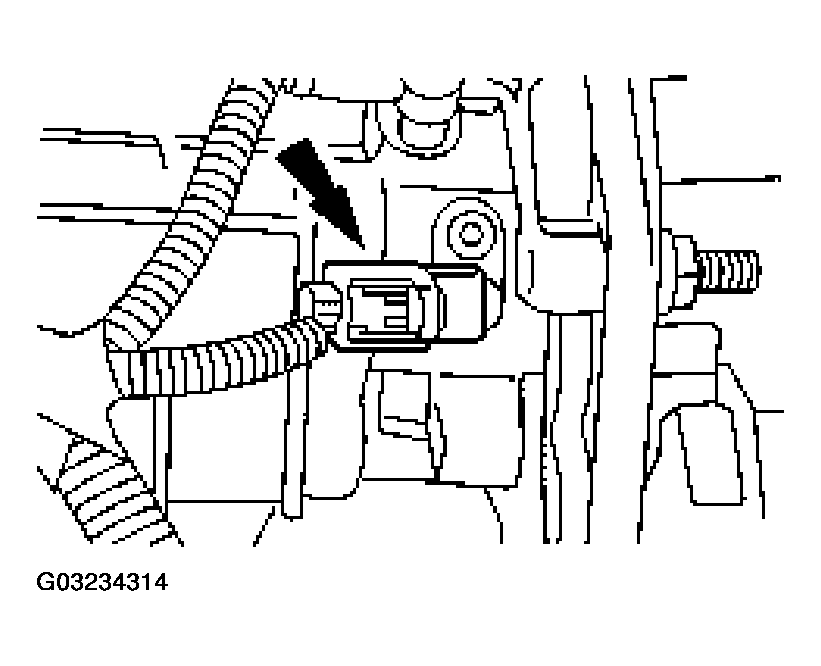

    Fig 1: Disconnecting Output Shaft Speed (OSS) Sensor Electrical Connector
    G03234314Courtesy of FORD MOTOR CO.
  3. Remove OSS sensor.
    1. Remove the OSS sensor screw.
    2. Remove the OSS sensor from the transmission.
      • Inspect the OSS sensor O-ring for damage. If damaged, install a new O-ring.
    Fig 2: Removing OSS Sensor From Transmission
    G03234315Courtesy of FORD MOTOR CO.
