Internal Harness Service: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to JACKING & LIFTING .
  2. Disconnect vehicle harness from transmission case (16-pin) connector.

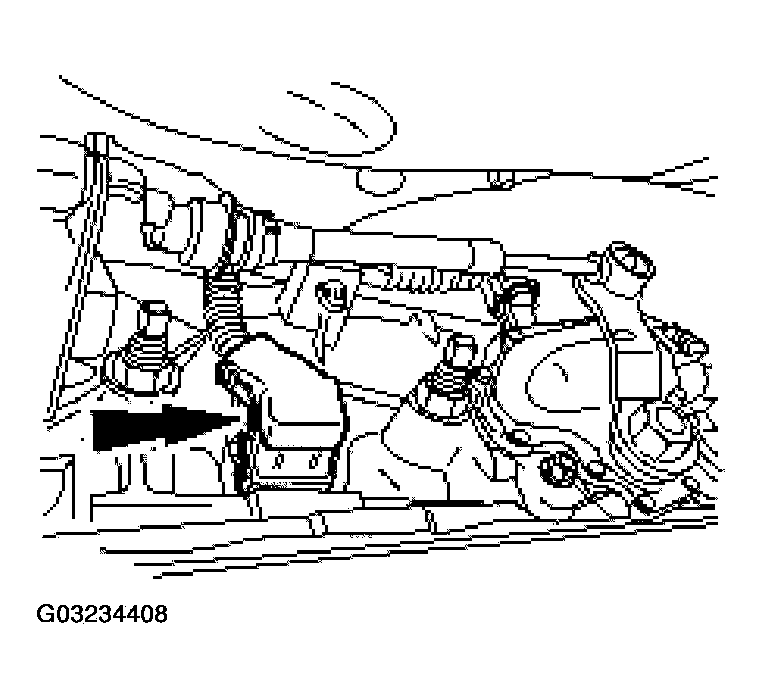

    Fig 1: Disconnecting Vehicle Harness From Transmission Case (16-Pin) Connector
    G03234408Courtesy of FORD MOTOR CO.
  3. Drain transmission fluid.
    • Remove all the transmission fluid pan screws except for two in the front. Loosen the two front transmission fluid pan screws. Pry the rear of the transmission fluid pan down and allow fluid to drain. After fluid is drained, remove the front two transmission fluid pan screws.

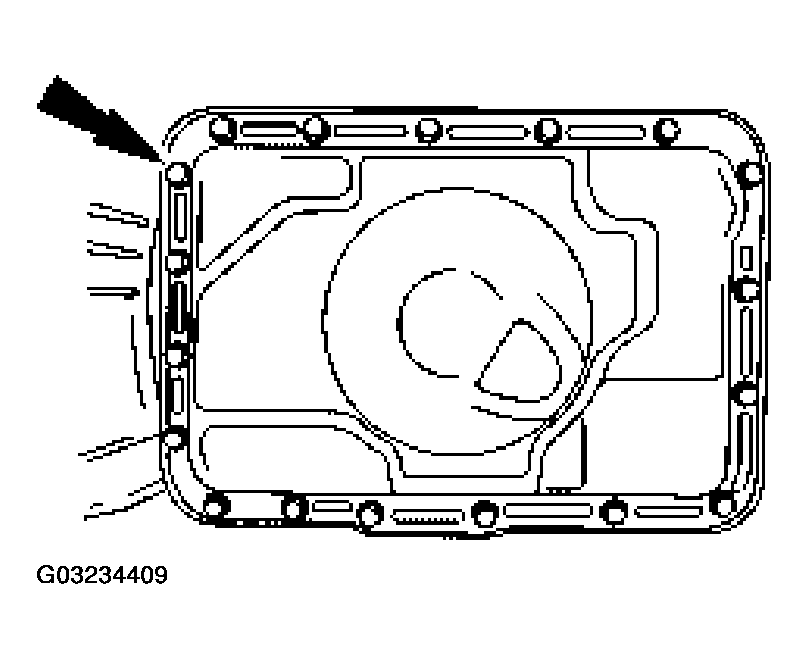

    Fig 2: Removing Transmission Fluid Pan Screws
    G03234409Courtesy of FORD MOTOR CO.
  4. Remove the transmission fluid pan.
    1. Remove the transmission fluid pan.
    2. Remove and discard the transmission fluid pan gasket.

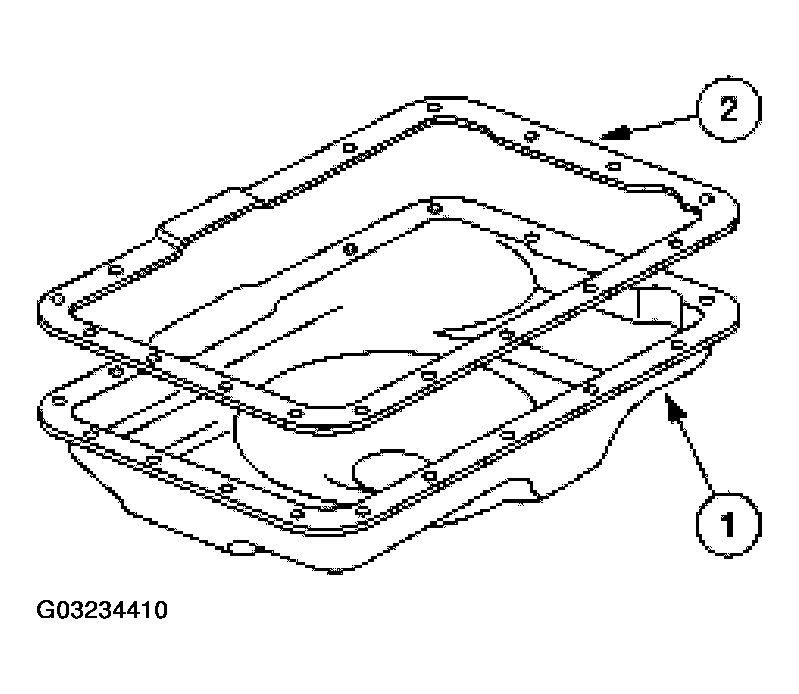

    Fig 3: Removing Transmission Fluid Pan
    G03234410Courtesy of FORD MOTOR CO.
    5. NOTE: The main control assembly does not need to be removed.

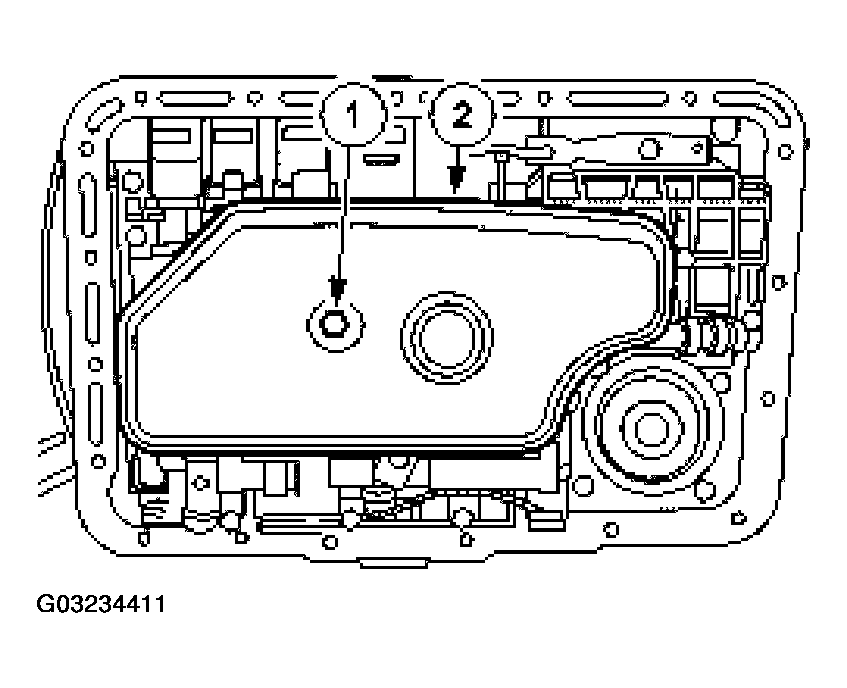

    Fig 4: Removing Transmission Fluid Filter
    G03234411Courtesy of FORD MOTOR CO.
  5. Remove the transmission fluid filter.
    1. Remove the transmission fluid filter screw.
    2. Remove the transmission fluid filter.
  6. Clean and inspect the transmission fluid pan and magnet. Clean all mating surfaces.
    Fig 5: Inspecting Transmission Fluid Pan And Magnet
    G03234412Courtesy of FORD MOTOR CO.
  7. Remove main control valve body wire loom.
    • Carefully lift up on wire loom guide and protector and disengage the retaining pins from the solenoid clamps.

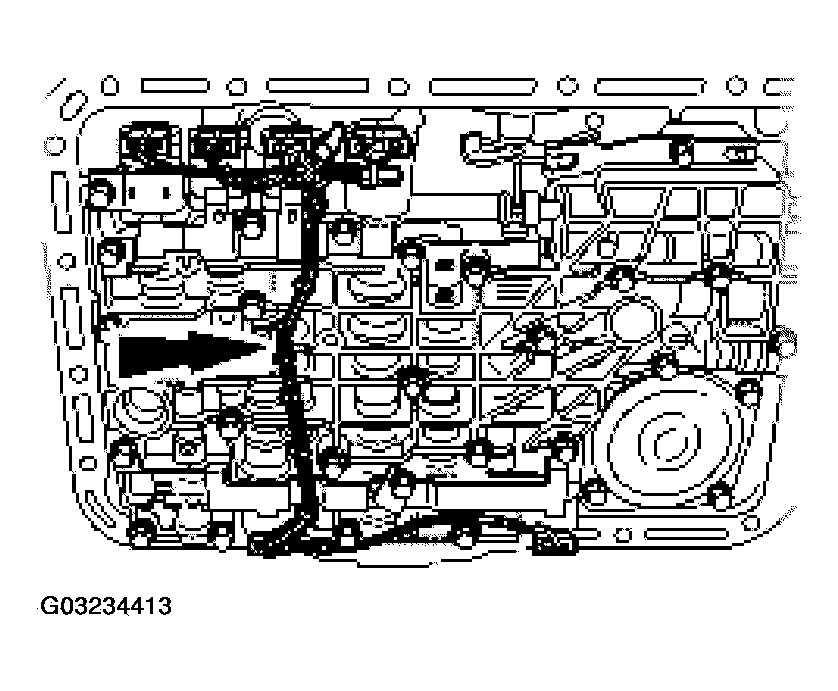

    Fig 6: Removing Main Control Valve Body Wire Loom
    G03234413Courtesy of FORD MOTOR CO.
  8. Disconnect the solenoid electrical connectors.
    1. Disconnect the SSA, SSB, SSC and SSD electrical connectors.
    2. Disconnect the torque converter clutch (TCC) solenoid electrical connector.
    3. Disconnect the electronic pressure control (EPC) solenoid electrical connector.

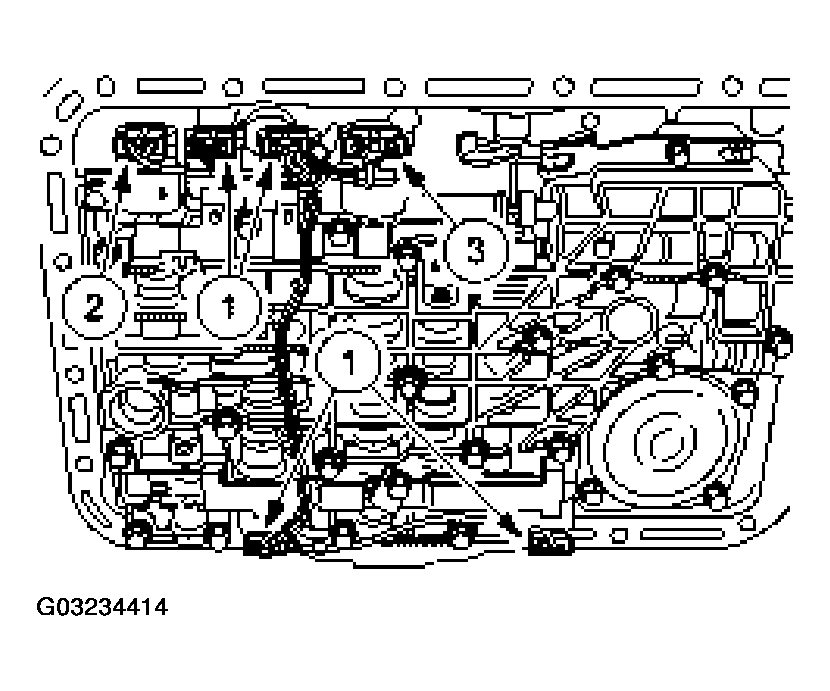

    Fig 7: Disconnecting Solenoid Electrical Connectors
    G03234414Courtesy of FORD MOTOR CO.
    9. CAUTION: The TCC solenoid and converter modulator valve may pop out of their bore. This may damage the solenoid or converter modulator valve.
    CAUTION: Shift solenoids may pop out of their bore. This may damage the solenoids.

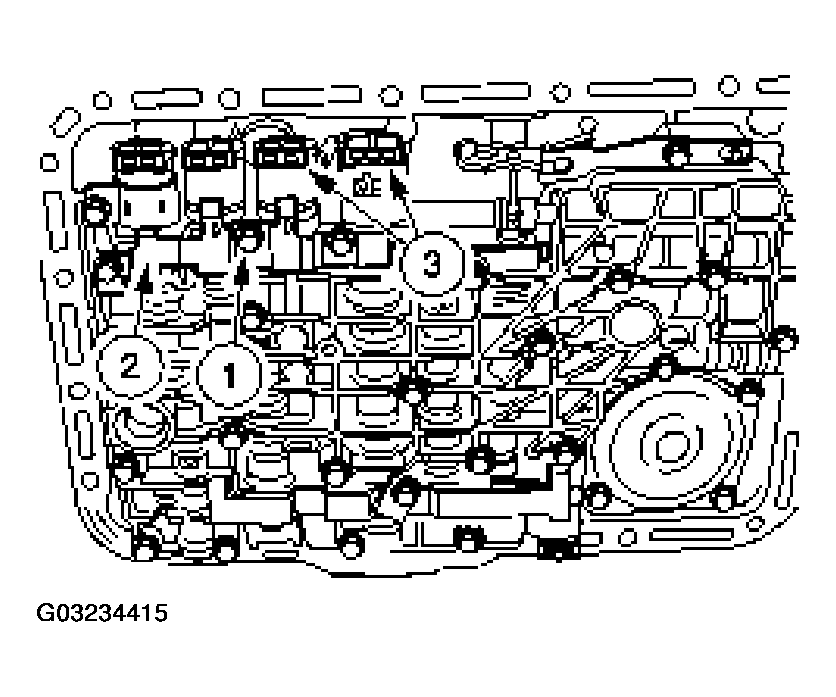

    Fig 8: Removing EPC And SSB Solenoids
    G03234415Courtesy of FORD MOTOR CO.
  9. Remove the EPC and SSB solenoids.
    1. Remove the solenoid clamp screws.
    2. Remove the solenoid clamp.
    3. Remove the EPC and SSB solenoids.
    10. CAUTION: Do not pry on the other wires or damage the connector case surface.
    Fig 9: Removing TSS Sensor Electrical Connector From TSS Sensor Wire Locator
    G03234416Courtesy of FORD MOTOR CO.
  10. Disconnect the turbine shaft speed (TSS) sensor electrical connector from the transmission case (16-pin) electrical connector.
    1. Disconnect the TSS sensor electrical connector.
    2. Remove from the TSS sensor wire locator.
    11. CAUTION: Do not overstretch the retaining spring.

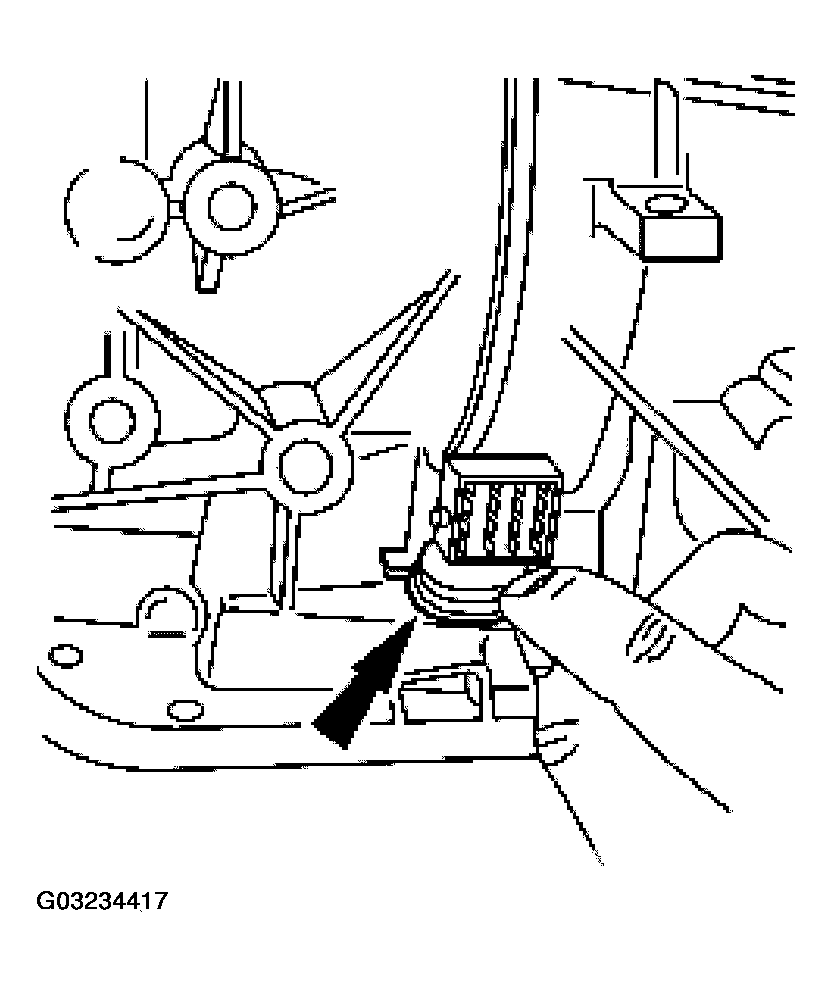

    Fig 10: Removing Transmission Case (16-Pin) Electrical Connector Retaining Spring
    G03234417Courtesy of FORD MOTOR CO.
  11. Remove the transmission case (16-pin) electrical connector retaining spring.
    12. CAUTION: Do not damage the connector or harness.
    Fig 11: Removing Transmission Case (16-Pin) Electrical Connector
    G03234418Courtesy of FORD MOTOR CO.
  12. Remove the transmission case (16-pin) electrical connector.
    • Compress the tabs on the transmission case (16-pin) electrical connector.
    • Push the transmission case (16-pin) electrical connector out of transmission case.
