Steering Wheel: Installation

  1. Position the steering wheel while routing the wires from the air bag sliding contact through the steering wheel.
  2. Install a new steering wheel bolt.

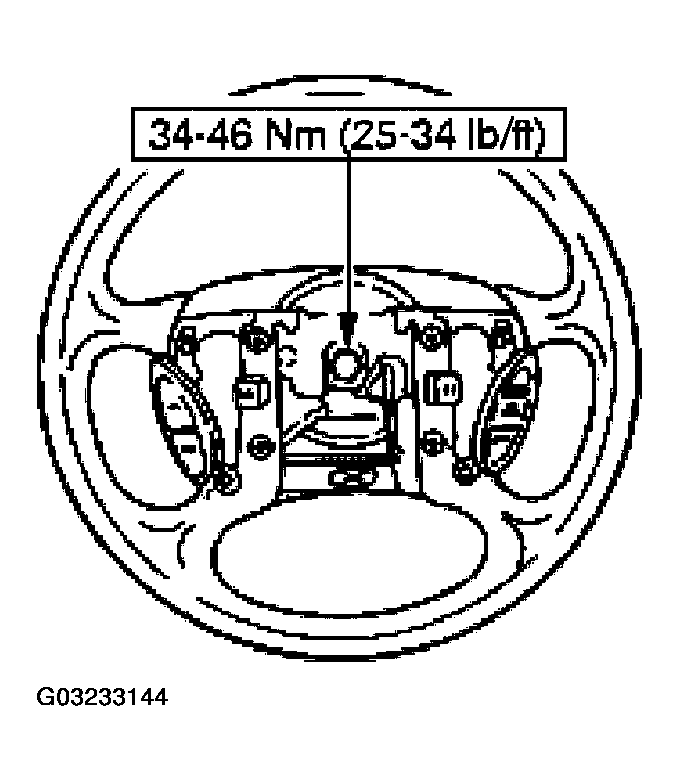

    Fig 1: Installing A New Steering Wheel Bolt
    G03233144Courtesy of FORD MOTOR CO.
  3. Connect the steering wheel accessory electrical connector.

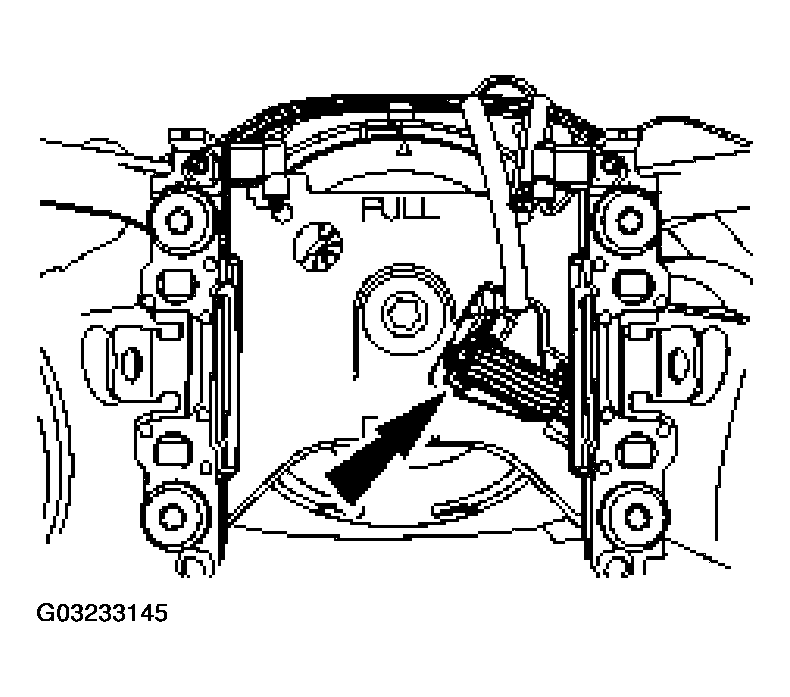

    Fig 2: Connecting Steering Wheel Accessory Electrical Connector
    G03233145Courtesy of FORD MOTOR CO.
  4. Install the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
