Valve - Spring Installed Length

  1. Measure the installed length of each valve spring.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components. For additional information, refer to ENGINE - 4.0L SOHC .

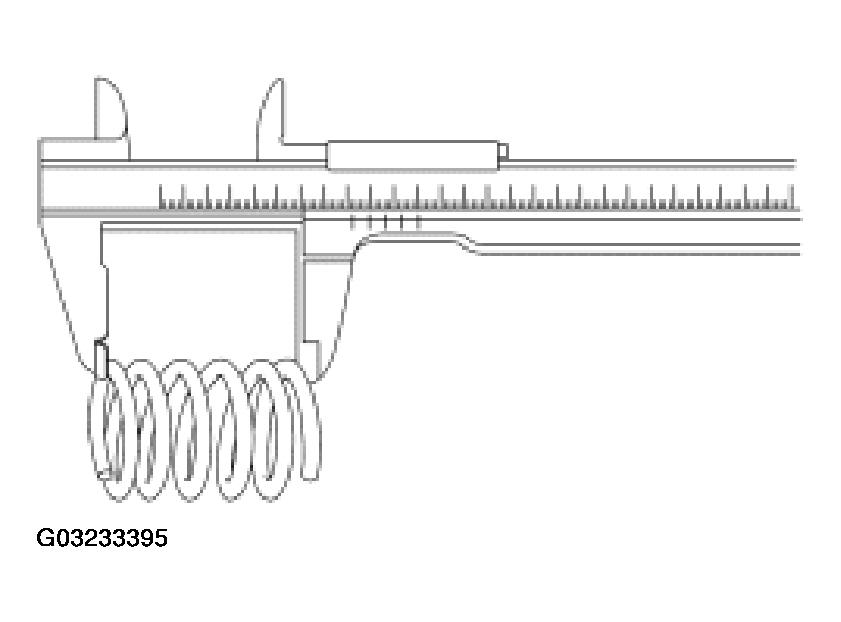

      Fig 1: Measuring Installed Length Of Each Valve Spring
      G03233395Courtesy of FORD MOTOR CO.
