Connecting Rod - Bend

  1. Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to ENGINE - 4.0L SOHC for the procedure.

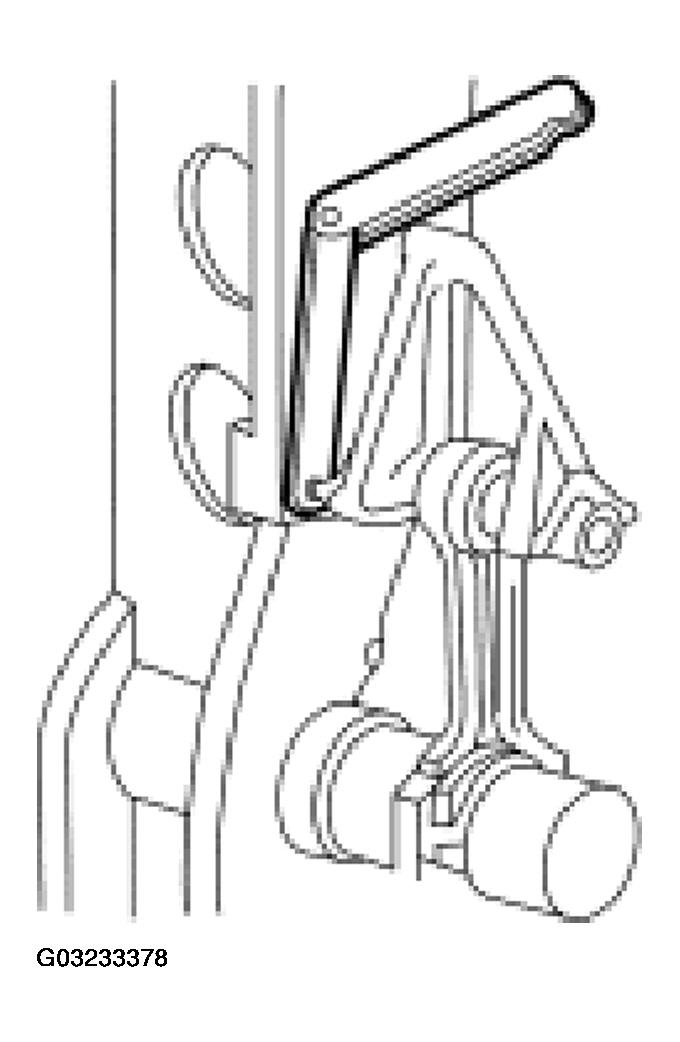

      Fig 1: Measuring Connecting Rod Bend On Suitable Alignment Fixture
      G03233378Courtesy of FORD MOTOR CO.
