Disassembly & Assembly

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential case from the differential housing. For additional information, refer to FRONT AXLE ASSEMBLY .
  2. Remove the components in the order indicated in the following illustration and table.
  3. To assemble, reverse the disassembly procedure.

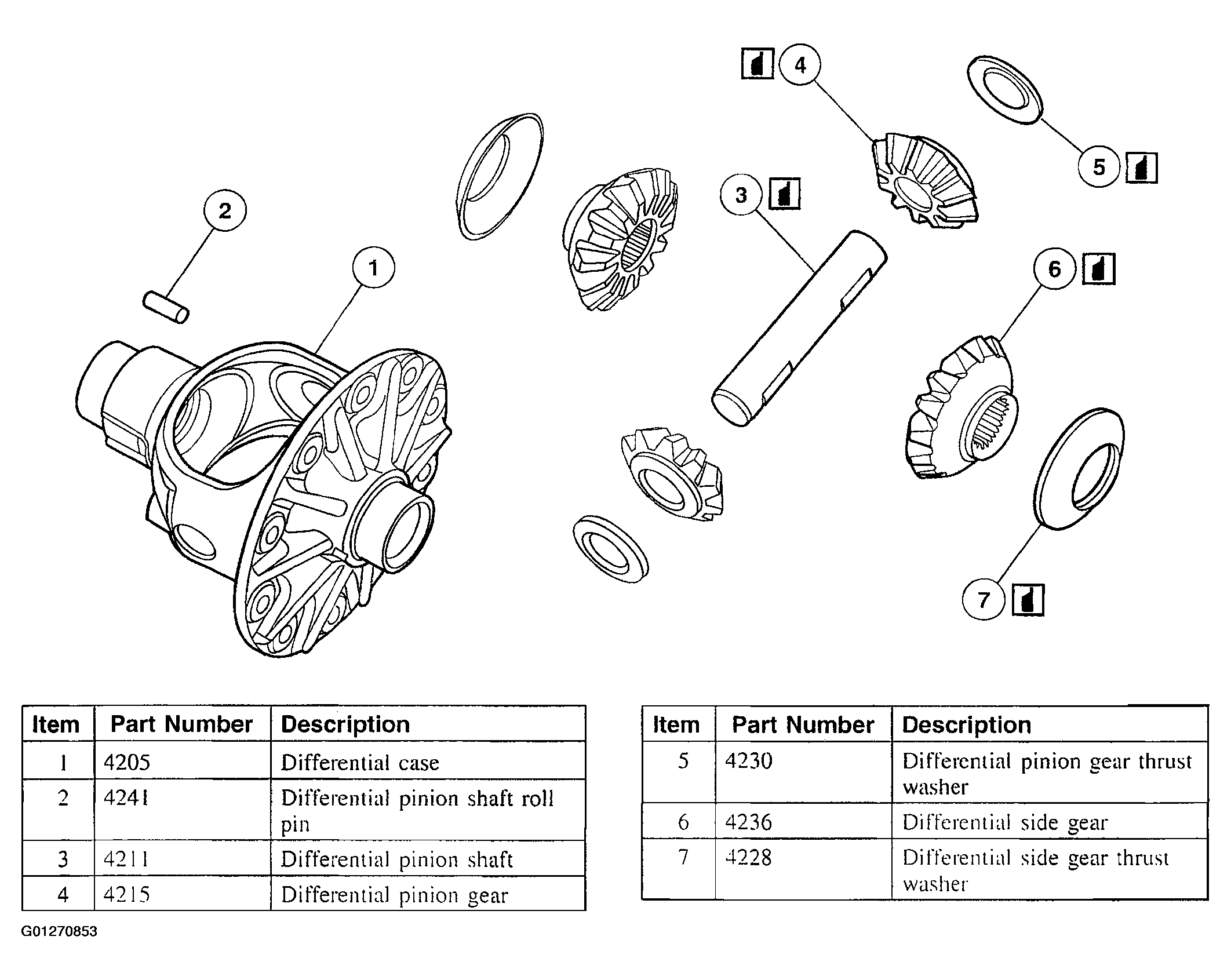

Fig 1: Identifying Exploded View Of Front Axle Differential Case Components
G01270853Courtesy of FORD MOTOR CO.
