Item 3: Transmission Fluid Pan Screws Installation Note
Item 3: Transmission Fluid Pan Screws Installation Note
Tighten the screws in a crisscross sequence.

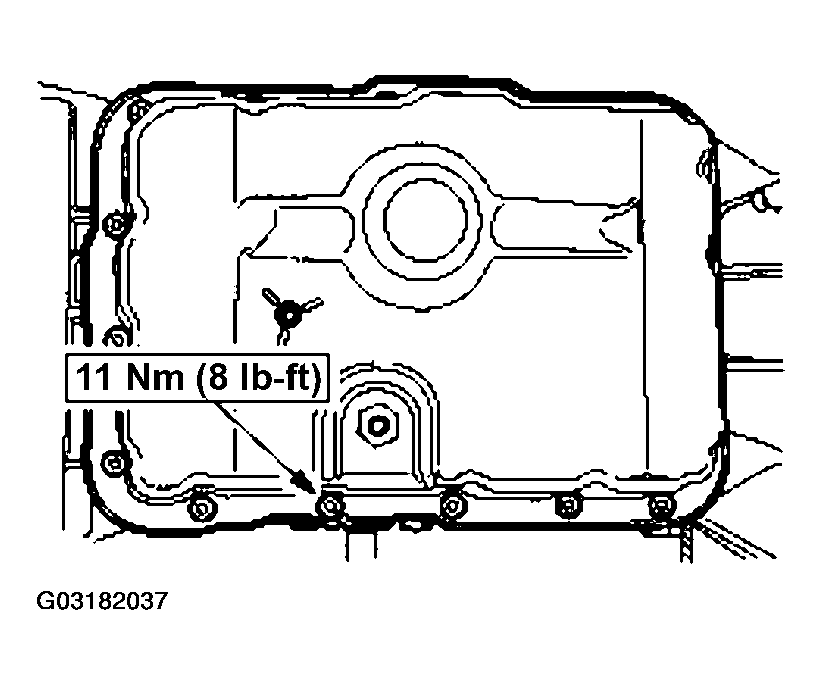

Fig 1: Tightening Transmission Fluid Pan Screws
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
