Item 5: Fluid Pump Control Valve Assembly Note

  1. Install the valve with the tab facing down.

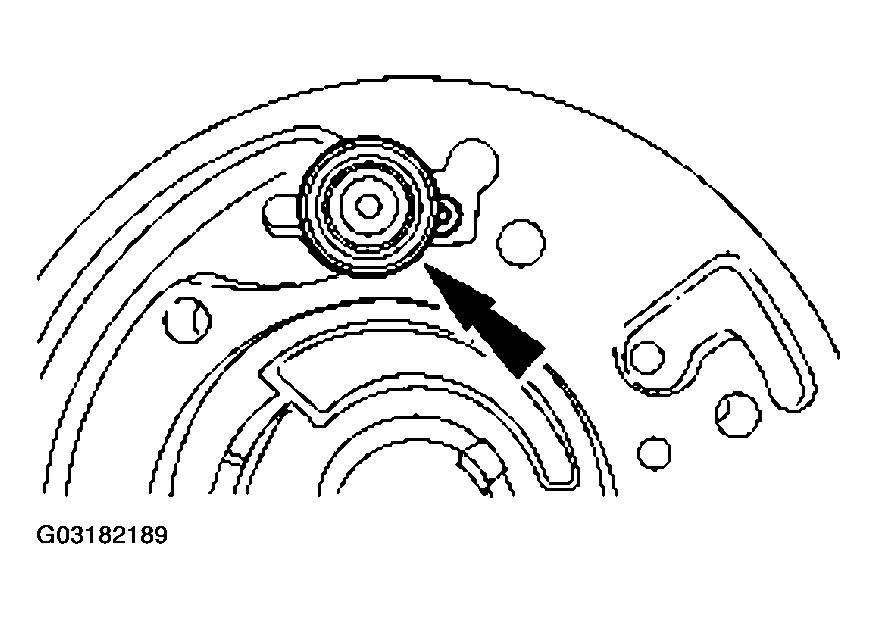

    Fig 1: Installing Valve
    G03182189Courtesy of FORD MOTOR CO.
