150 Pin Powertrain Control Module (PCM) Transmission

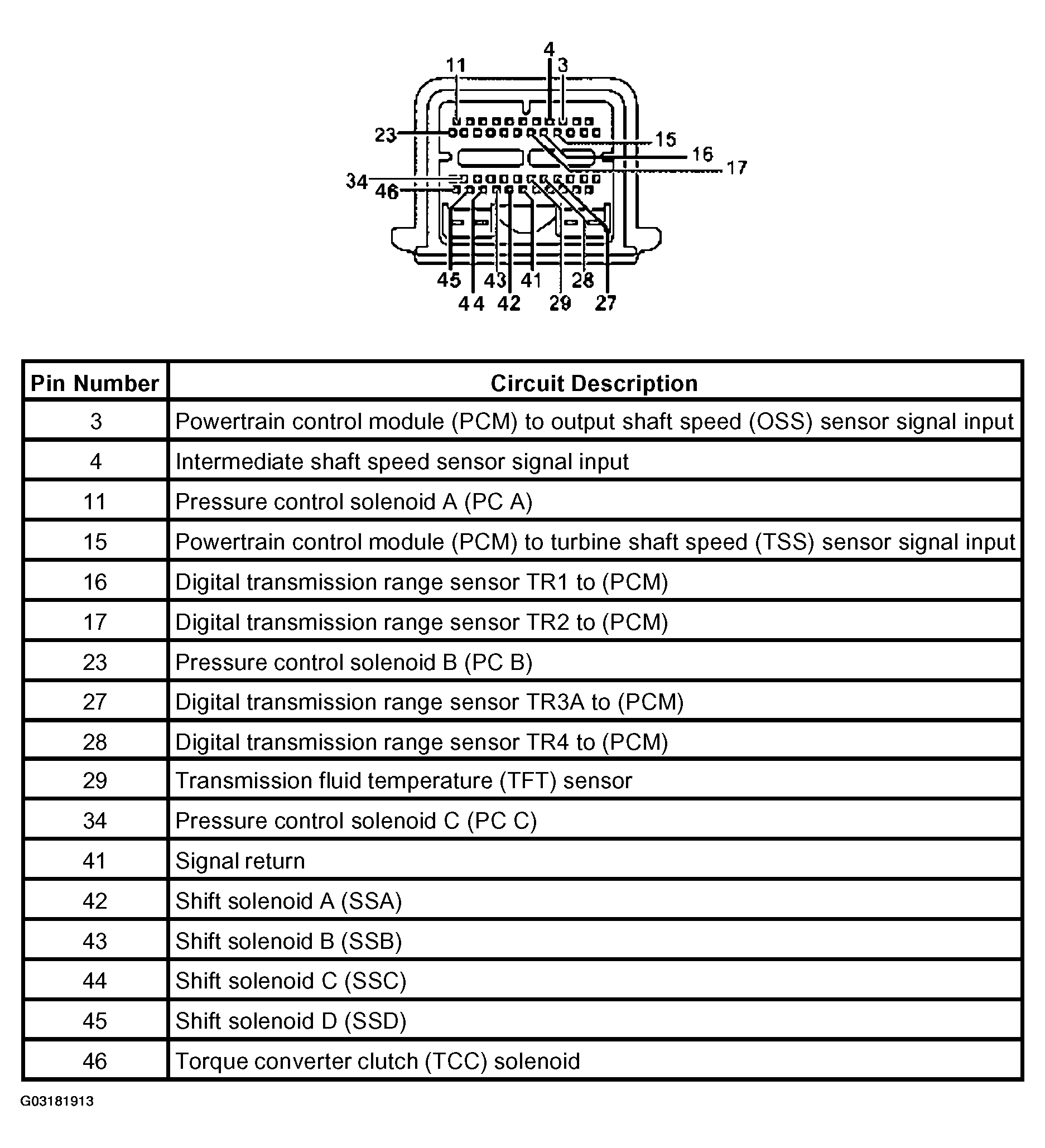

Fig 1: Identifying 150 Pin Powertrain Control Module (PCM) Transmission Connector

G03181913

Courtesy of FORD MOTOR CO.
