Item 41: Intermediate Brake Band Apply Strut Assembly Note

  1. Install the intermediate band apply strut.

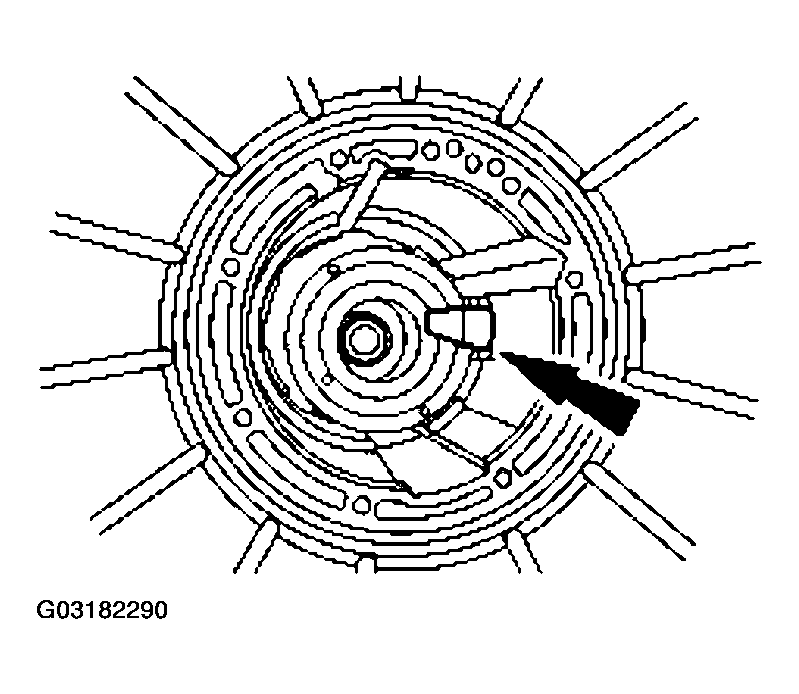

    Fig 1: Installing Intermediate Band Apply Strut
    G03182290Courtesy of FORD MOTOR CO.
    2. CAUTION: If the strut is installed incorrectly, transmission damage will occur.
    Fig 2: Checking Intermediate Band Apply Strut
    G03182291Courtesy of FORD MOTOR CO.
  2. Check to make sure that the intermediate band apply strut is installed in the correct orientation to the case and piston rod.
