Seat adjust switch, passenger side front

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

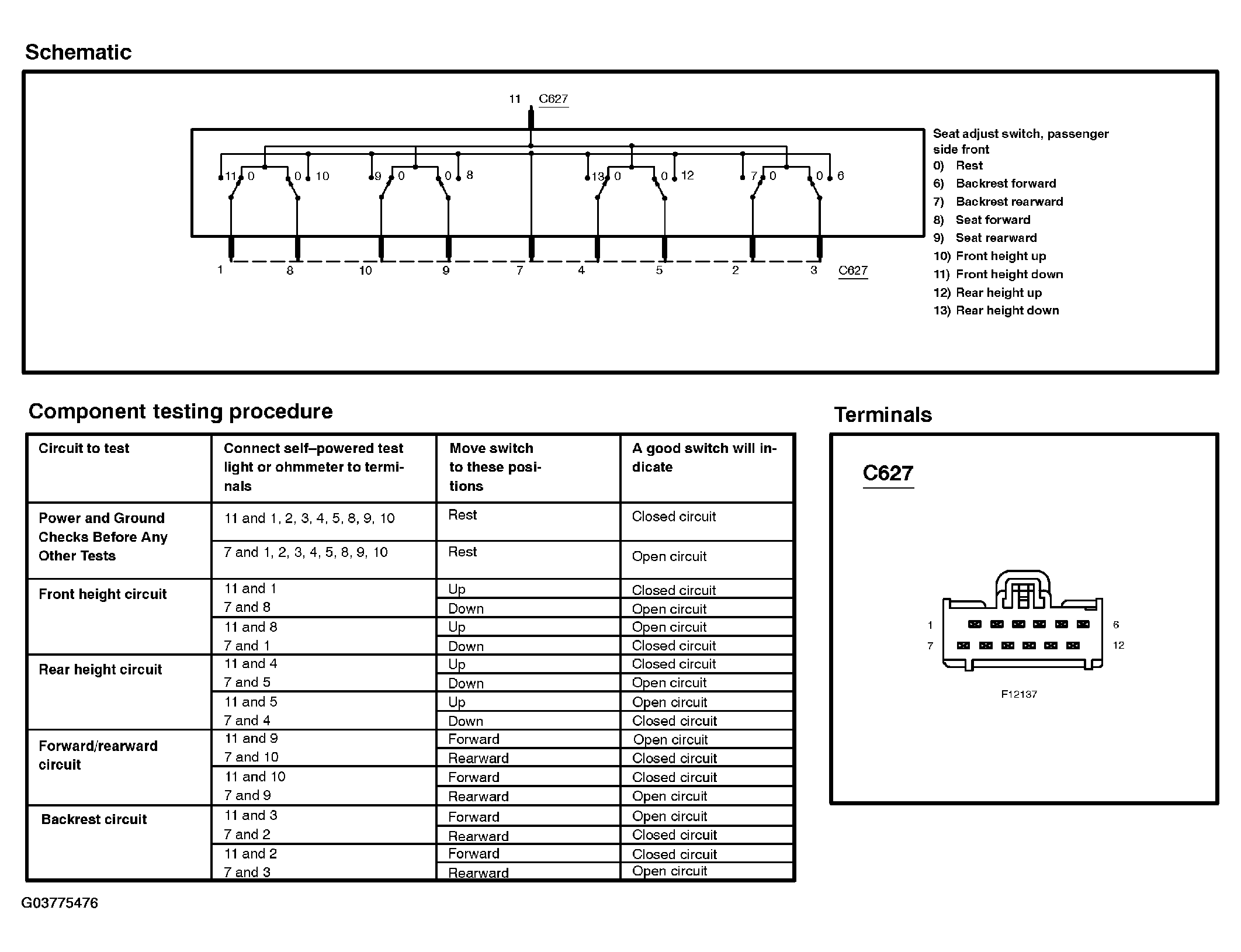

Fig 1: Testing Seat Adjust Switch (Passenger Side Front)
G03775476Courtesy of FORD MOTOR CO.
