Master window adjust switch (14529)

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

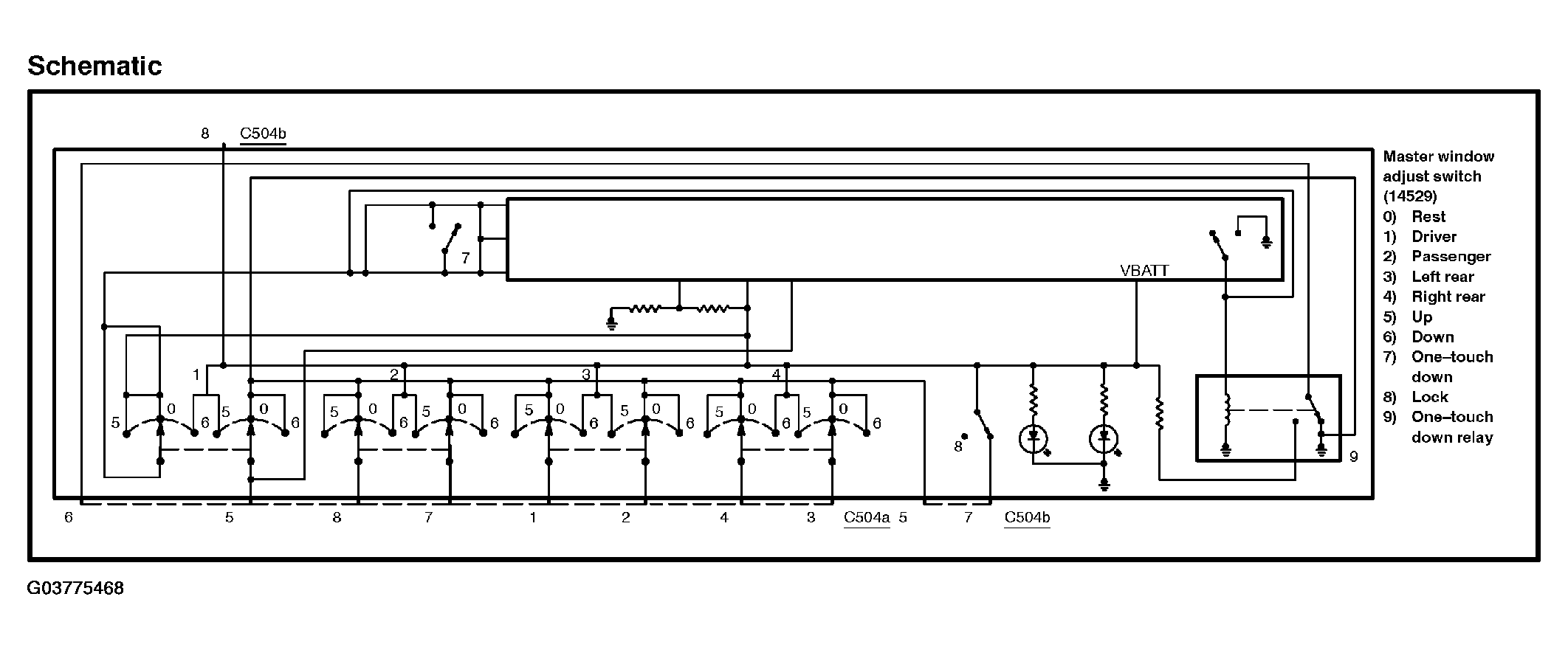

Fig 1: Testing Master Window Adjust Switch (1 Of 2)
G03775468Courtesy of FORD MOTOR CO.

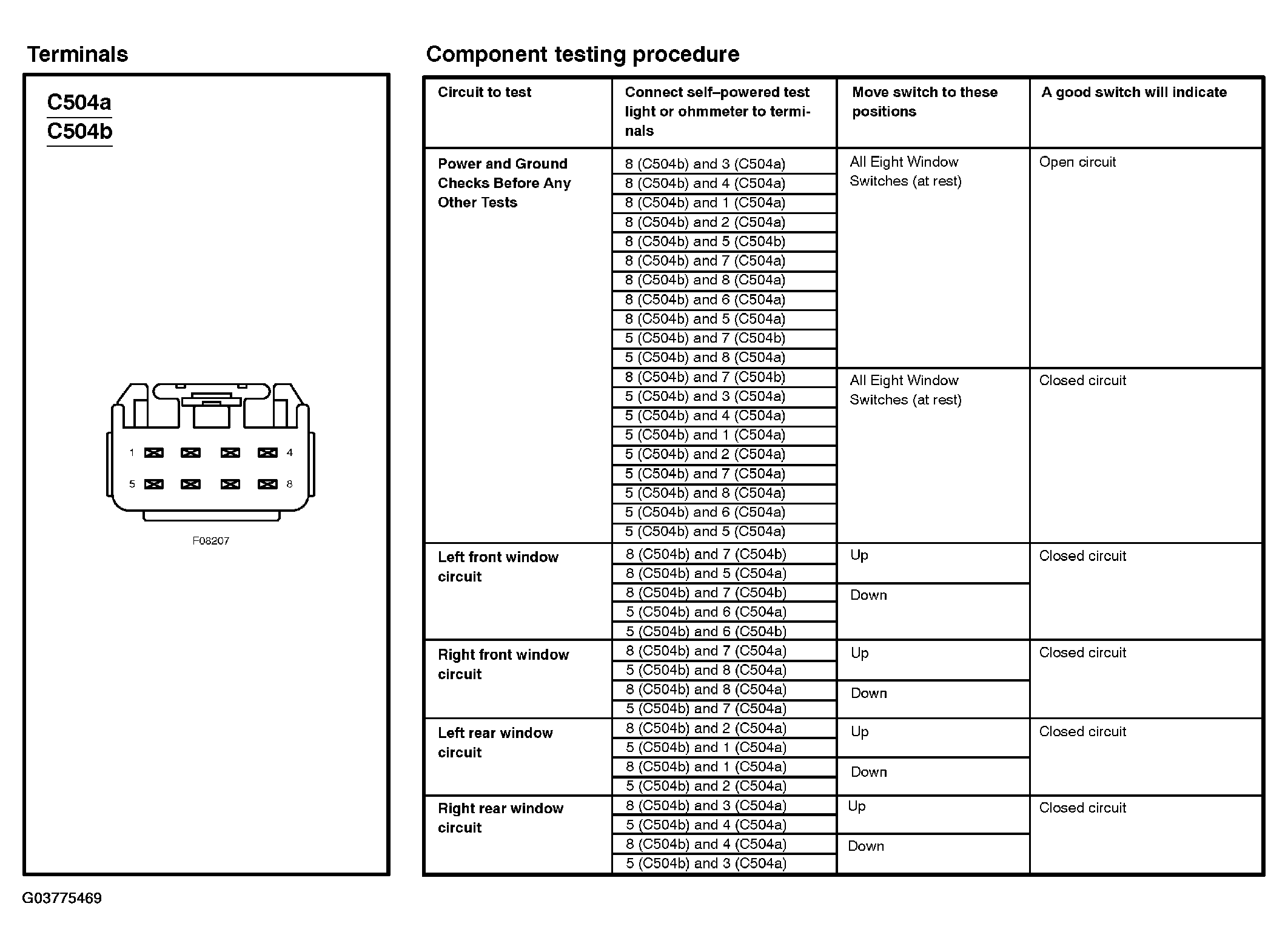

Fig 1: Testing Master Window Adjust Switch (2 Of 2)
G03775469Courtesy of FORD MOTOR CO.
