Item 12: Reverse Servo Screws Installation Note
Item 12: Reverse Servo Screws Installation Note
Install the reverse servo. Tighten the screws in the sequence shown.

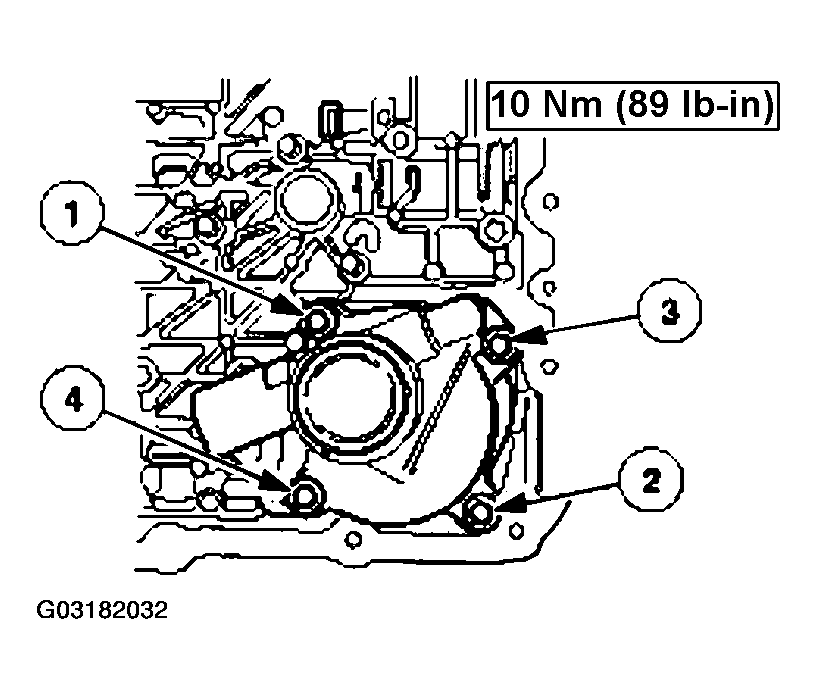

Fig 1: Installing Reverse Servo
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
