Item 94: Input Shaft Assembly Note

    CAUTION: The splines of the input shaft are not the same length on both ends. The shaft end with the shorter splines goes into the fluid pump.

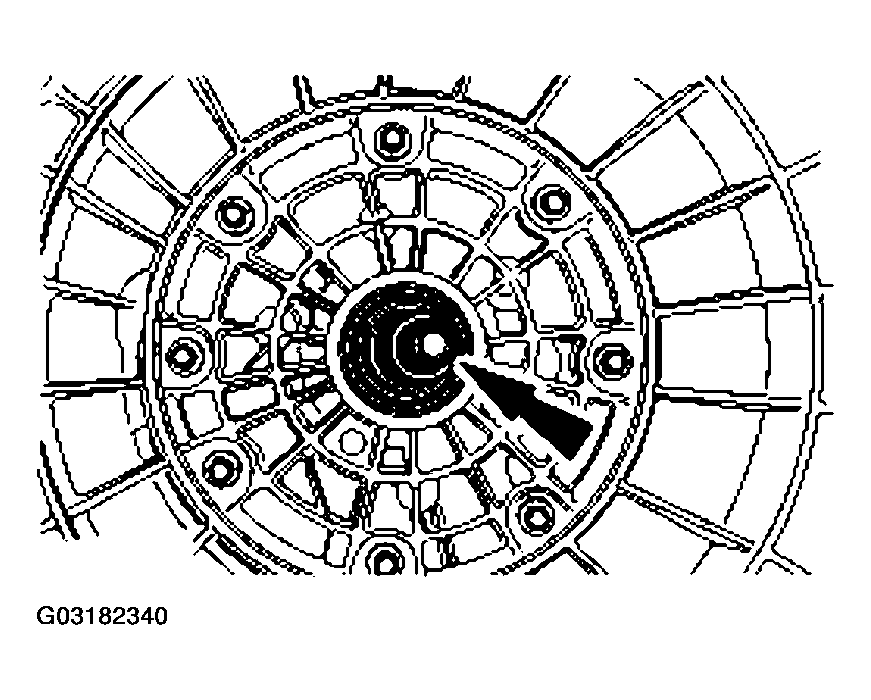

    Fig 1: Installing Input Shaft
    G03182340Courtesy of FORD MOTOR CO.
  1. Install the input shaft.
