Identifying Connector (C4171)
Identifying Connector (C4171)

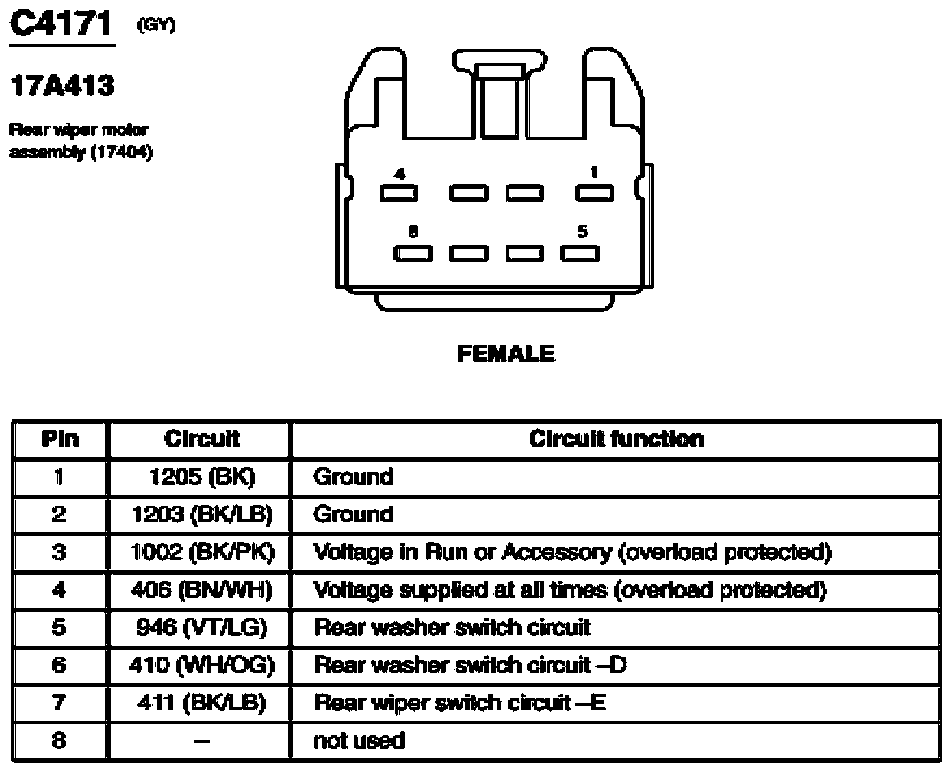

Fig 1: Rear Wiper Motor Assembly Connector End View (C4171)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
