Ride Height Adjustments

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

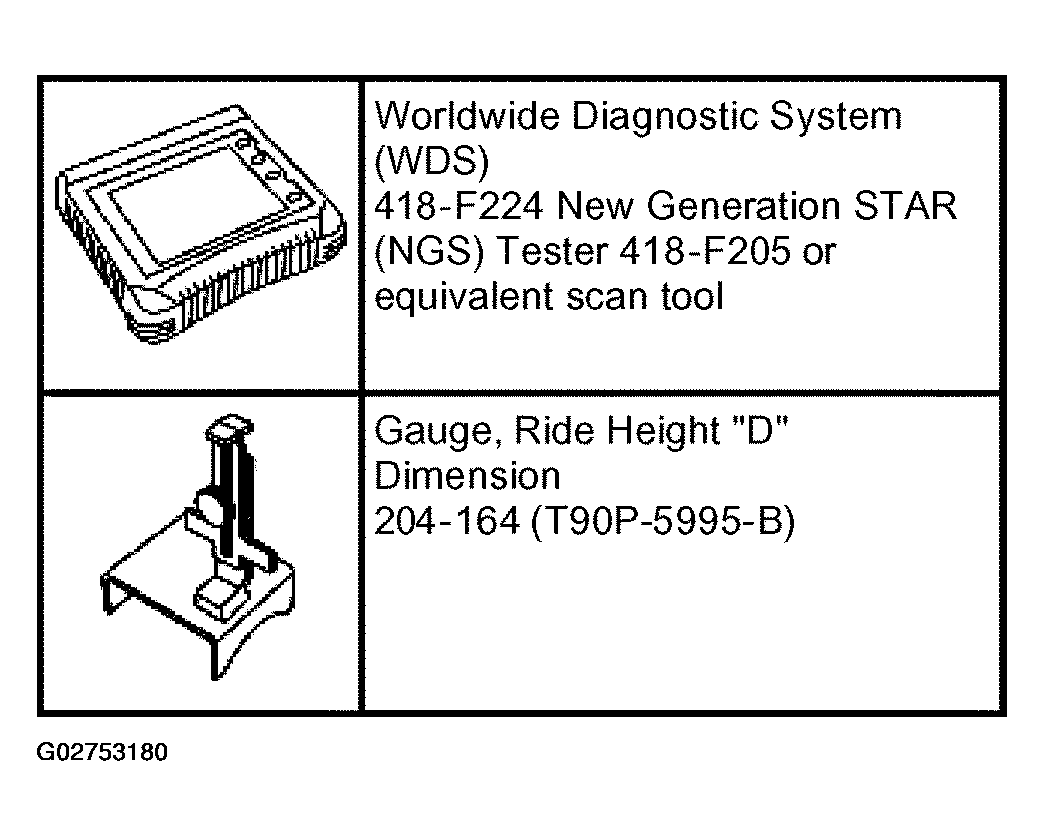

Fig 1: Identifying Special Tools
G02753180Courtesy of FORD MOTOR CO.
WARNING: Do not remove an air spring under any circumstances when there is pressure in the air spring. Do not remove any components supporting an air spring without either exhausting the air or providing support for the air spring to prevent vehicle damage or personal injury.
CAUTION: The suspension height D dimensions are for reference only. The vehicle attitude must be controlled by the correct dimensions to prevent vehicle damage.
NOTE: Improper air suspension ride height D dimension can be caused by an air suspension system that is incorrectly set.
  1. Position the vehicle on a level surface over an open repair pit.
  2. Open the luggage compartment and verify that the air suspension switch is turned on.
  3. Turn the ignition switch to the RUN position and wait at least two minutes.
  4. Position the special tool on the rear axle.

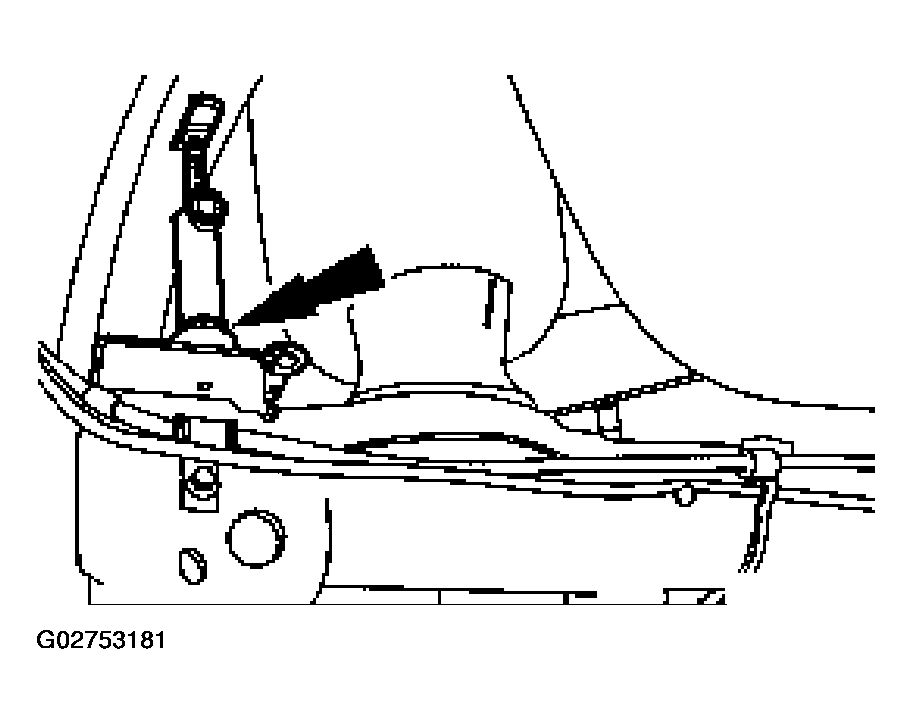

    Fig 2: Positioning Special Tool On Rear Axle
    G02753181Courtesy of FORD MOTOR CO.
  5. Measure the ride height D dimension.
    1. Release the set screw.
    2. Pull the sliding post and scale up until it touches the bottom of the inboard frame rail and lock the set screw.
    3. Measure the ride height D dimension.

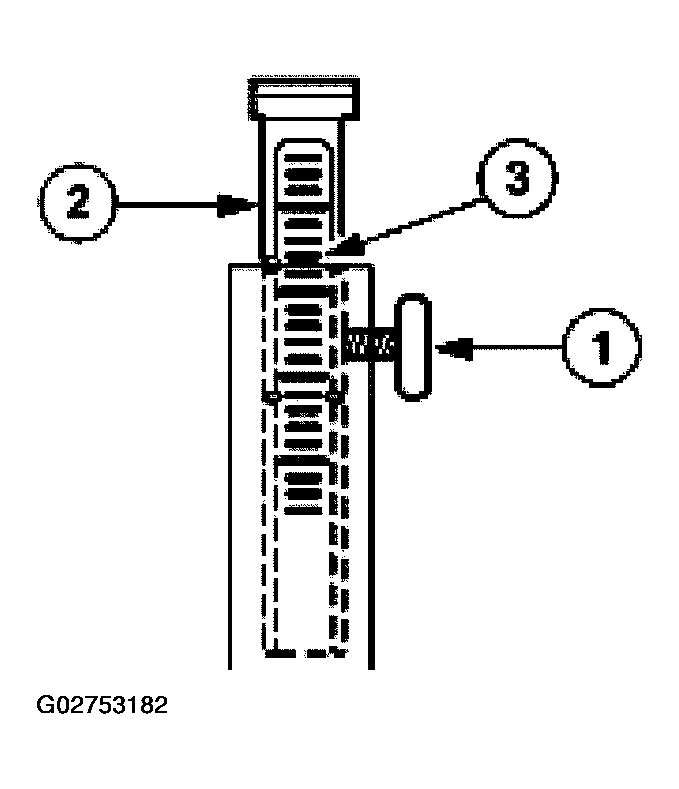

    Fig 3: Measuring Ride Height D Dimension
    G02753182Courtesy of FORD MOTOR CO.
  6. If ride height dimension D is not within specification, use the scan tool to vent or fill the air suspension to the correct dimension.

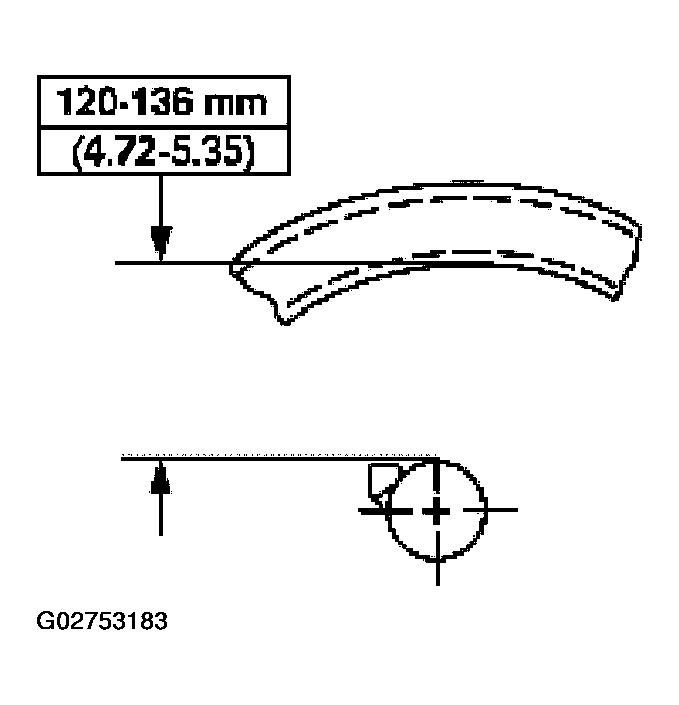

    Fig 4: Identifying Ride Height Dimension
    G02753183Courtesy of FORD MOTOR CO.
  7. Use the scan tool to monitor the suspension height sensor voltage PID.
  8. Loosen the height sensor ball stud bracket retaining nuts.

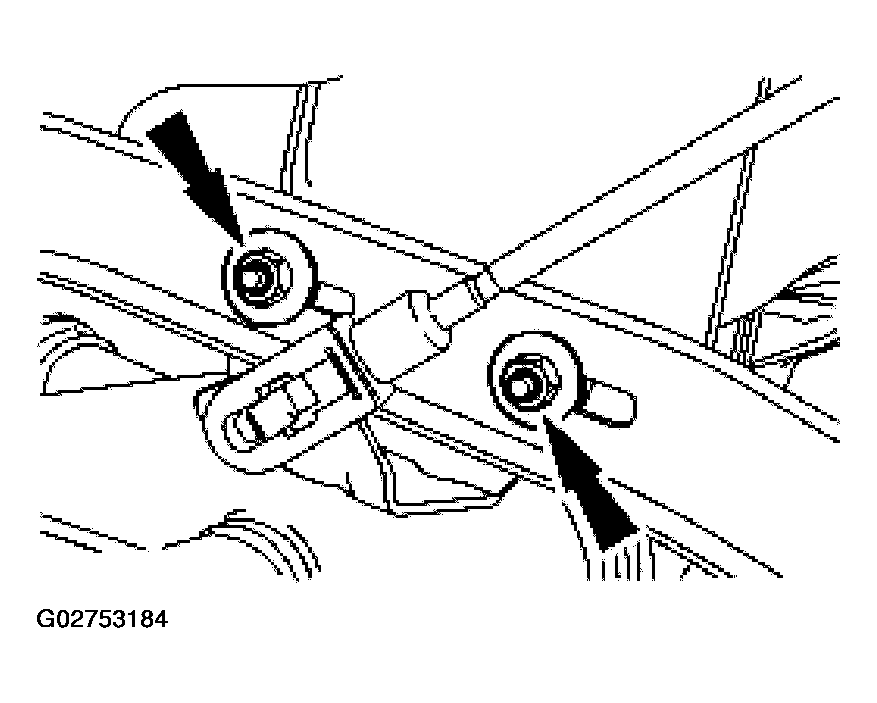

    Fig 5: Loosening Height Sensor Ball Stud Bracket Retaining Nuts
    G02753184Courtesy of FORD MOTOR CO.
  9. Slide the ball stud bracket until the height sensor voltage PID is equal to 2.80 volts.

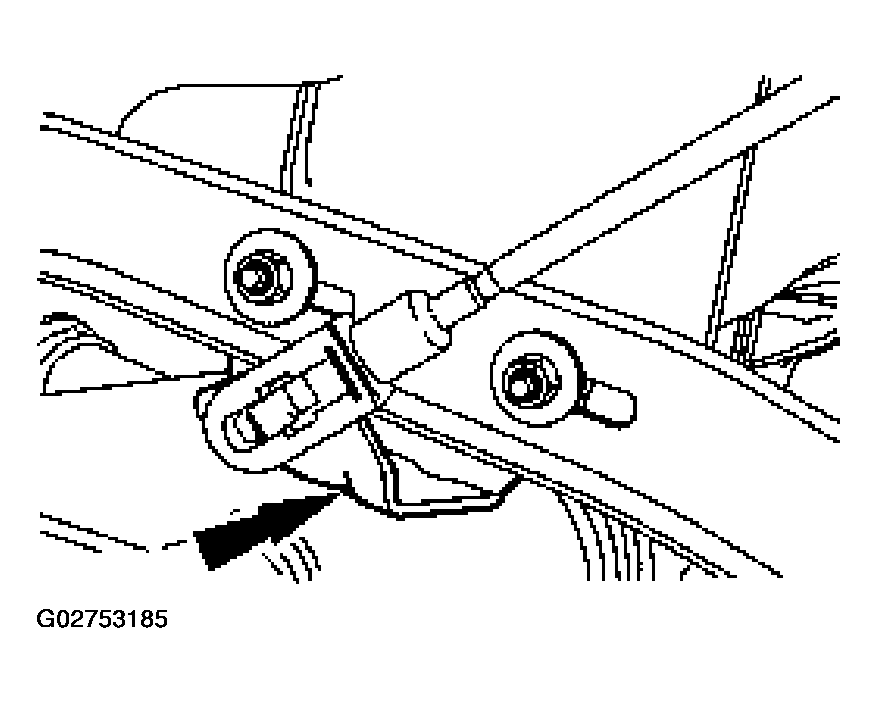

    Fig 6: Sliding Ball Stud Bracket
    G02753185Courtesy of FORD MOTOR CO.
  10. Tighten the height sensor ball stud bracket retaining nuts.

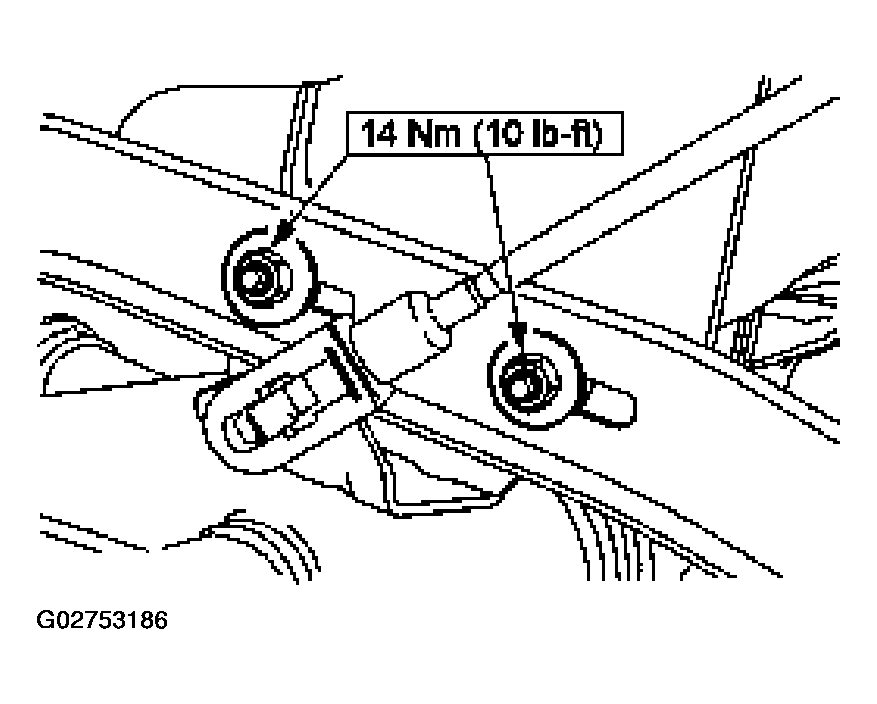

    Fig 7: Tightening Height Sensor Ball Stud Bracket Retaining Nuts
    G02753186Courtesy of FORD MOTOR CO.
  11. Save the height settings using the scan tool at this position.
