Item 35: Transmission Assembly Installation Note
- Remove the transmission jack.

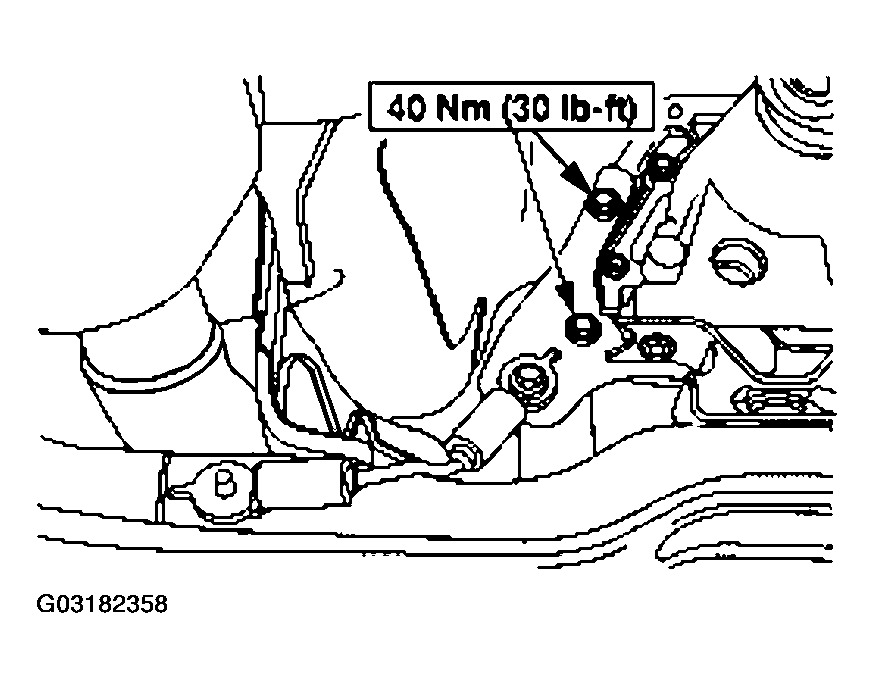

- If equipped, install the cable bracket and the two bolts.
- Use the following guidelines for the in-line transmission fluid filter:
- If the transmission was overhauled and the vehicle was equipped with an in-line fluid filter, install a new in-line fluid filter.
- If the transmission was overhauled and the vehicle was not equipped with an in-line fluid filter, install a new in-line fluid filter kit.
- If the transmission is being installed for a non-internal repair, do not install an in-line filter or filter kit.
- If installing a new or a Ford-authorized remanufactured transmission, install the in-line transmission fluid filter that is supplied.
Prior to lowering the vehicle, install a new in-line transmission filter or a filter kit. For additional information refer to TRANSMISSION FLUID IN-LINE FILTER .
