Removal and Installation

  1. With the vehicle in DRIVE, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the upper and lower steering column shrouds.
  3. Remove the components in the order listed in the following illustration and table.
  4. To install, reverse the removal procedure.

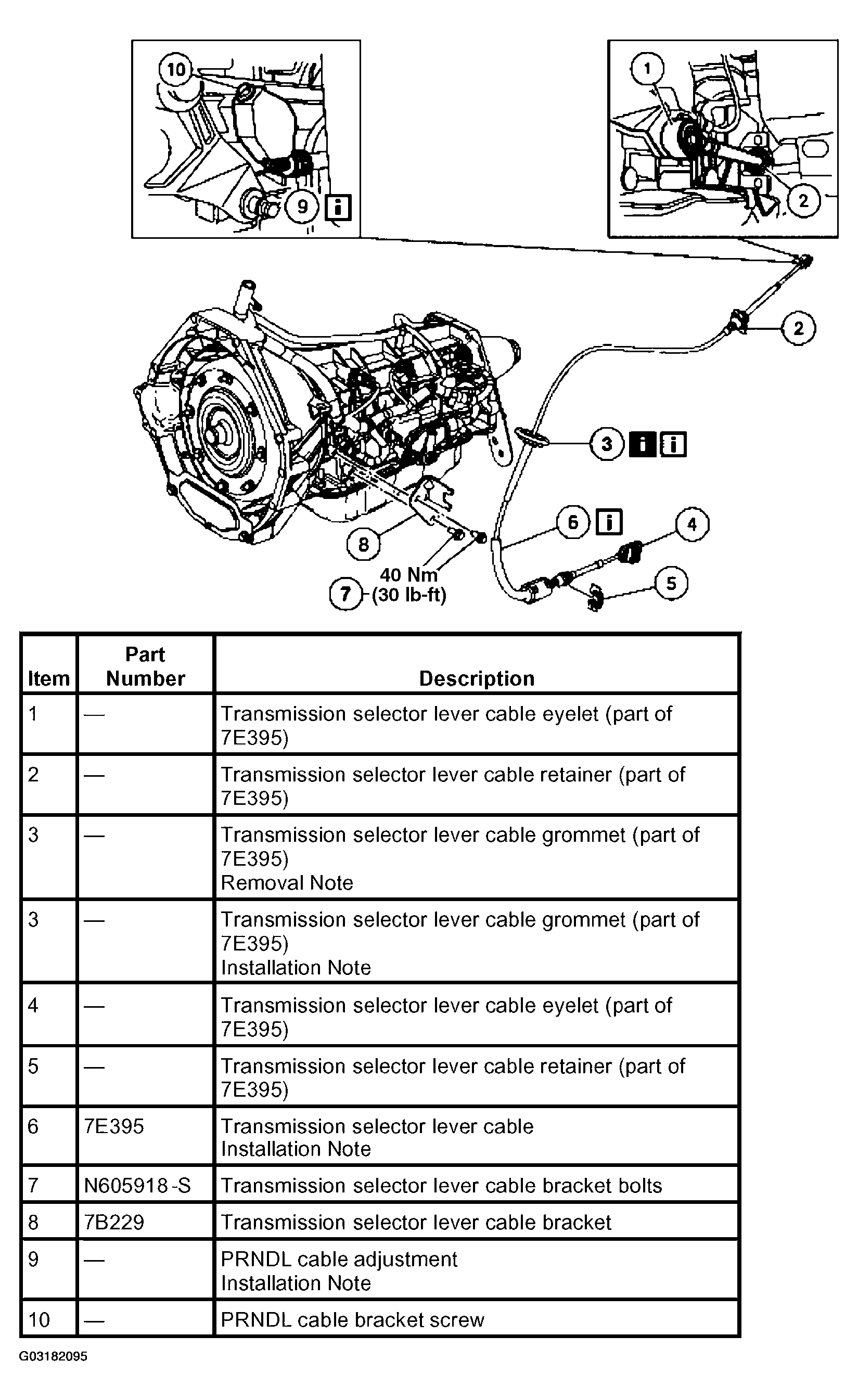

    Fig 1: Identifying Removal Order Of Transmission Selector Cable
    G03182095Courtesy of FORD MOTOR CO.
