Item 9: Fluid Pump Screws Assembly Note

  1. Loosely install the fluid pump housing screws in their correct locations and remove the special tools. Install the two remaining screws.

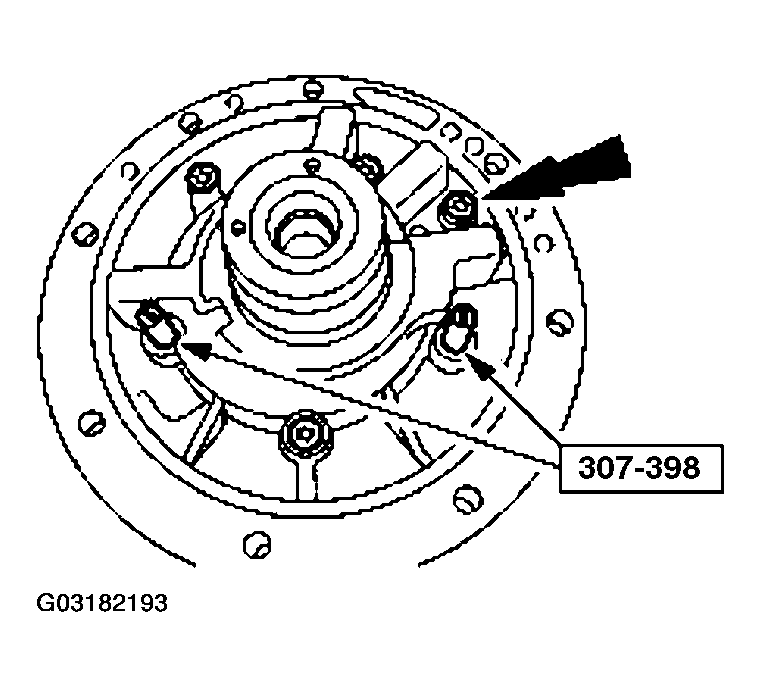

    Fig 1: Installing Remaining Screws
    G03182193Courtesy of FORD MOTOR CO.
  2. Tighten all the fluid pump screws in a star pattern.

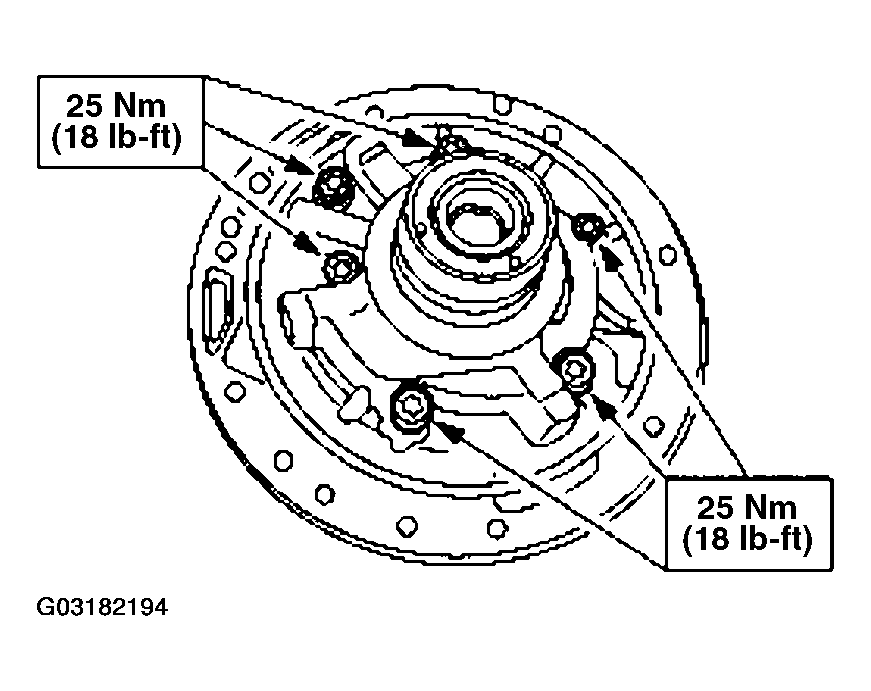

    Fig 2: Tightening All Fluid Pump Screws
    G03182194Courtesy of FORD MOTOR CO.
