Item 38: Intermediate Brake Band Assembly Note

NOTE: Make sure that the intermediate band apply strut is aligned with the band notch.

NOTE: If the intermediate band is reused, it must be installed in the same position as when removed.

NOTE: The new intermediate band is and dark in color. This is a normal condition of the band. Hairline cracks in the band are also considered normal. Do not install a new band based solely on the color.

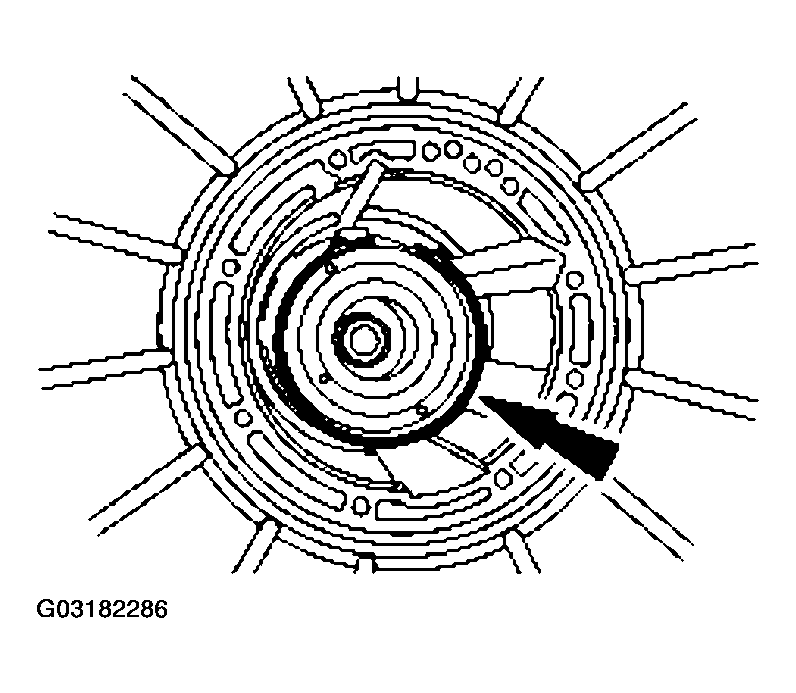

Fig 1: Installing Intermediate Band

Courtesy of FORD MOTOR CO.

Install the intermediate band.
