Identifying Connector (C175e)

Fig 1: Powertrain Control Module (PCM) Connector End View (C175e) (1 Of 2)
G03777909Courtesy of FORD MOTOR CO.

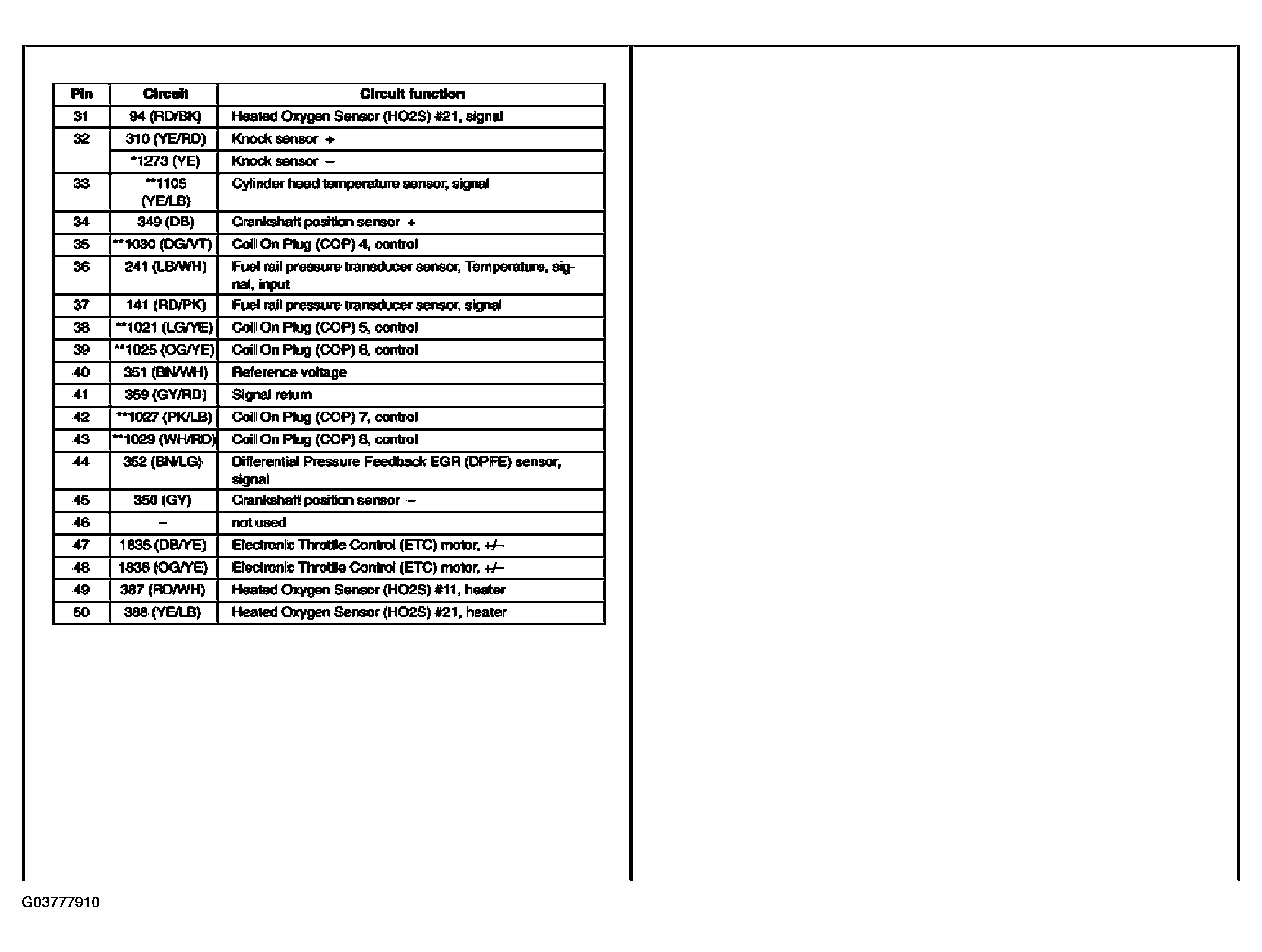

Fig 2: Powertrain Control Module (PCM) Connector End View (C175e) (2 Of 2)
G03777910Courtesy of FORD MOTOR CO.
