Removal And Installation: Drier: Removal

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air compressor. For additional information, refer to AIR SUSPENSION COMPRESSOR .
Remove the air compressor drier.
1. Remove the screw.
2. Rotate 90 degrees to unlock then remove the air compressor drier.

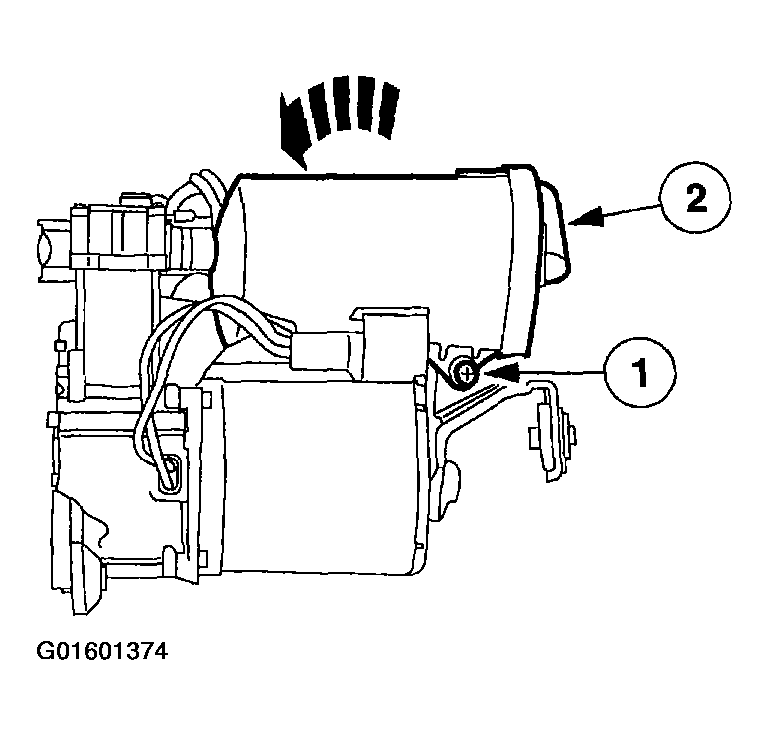

  Fig 1: Removing Air Compressor Drier
  Courtesy of FORD MOTOR CO.
