Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

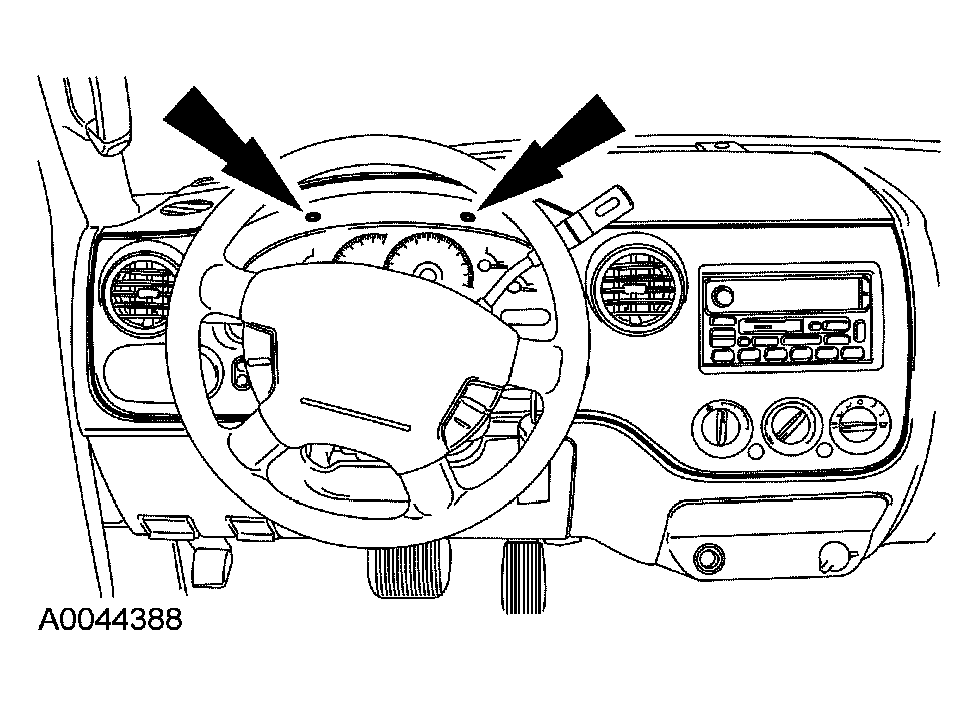

Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.
Fig 1: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

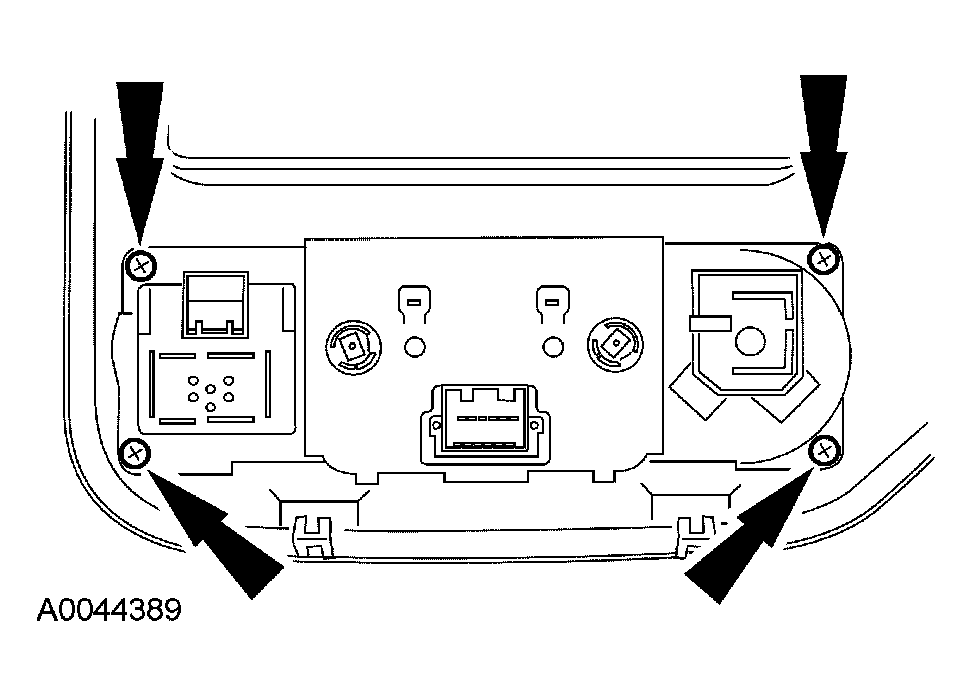

Remove the screws and the climate control assembly.

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
