Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln Navigator and 2005 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Navigator

Disconnect the negative battery cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Detach and position the switch housing aside.

Fig 1: Detaching Switch Housing
Courtesy of FORD MOTOR CO.

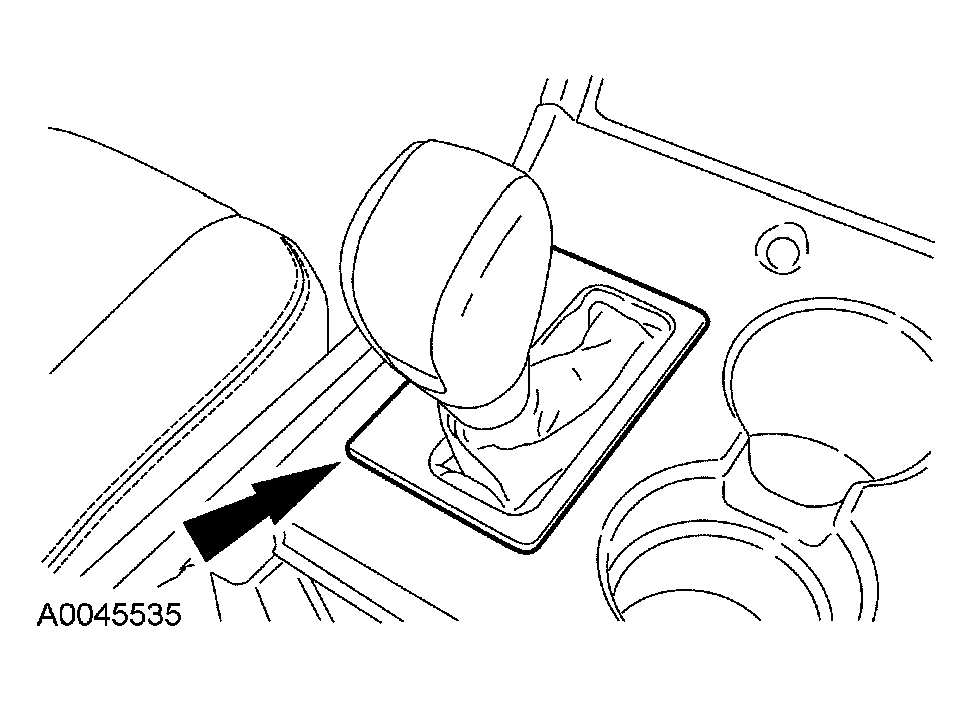

Detach the shift lever cover.
- Disconnect the electrical connector.
Fig 2: Detaching Shift Lever Cover
Courtesy of FORD MOTOR CO.

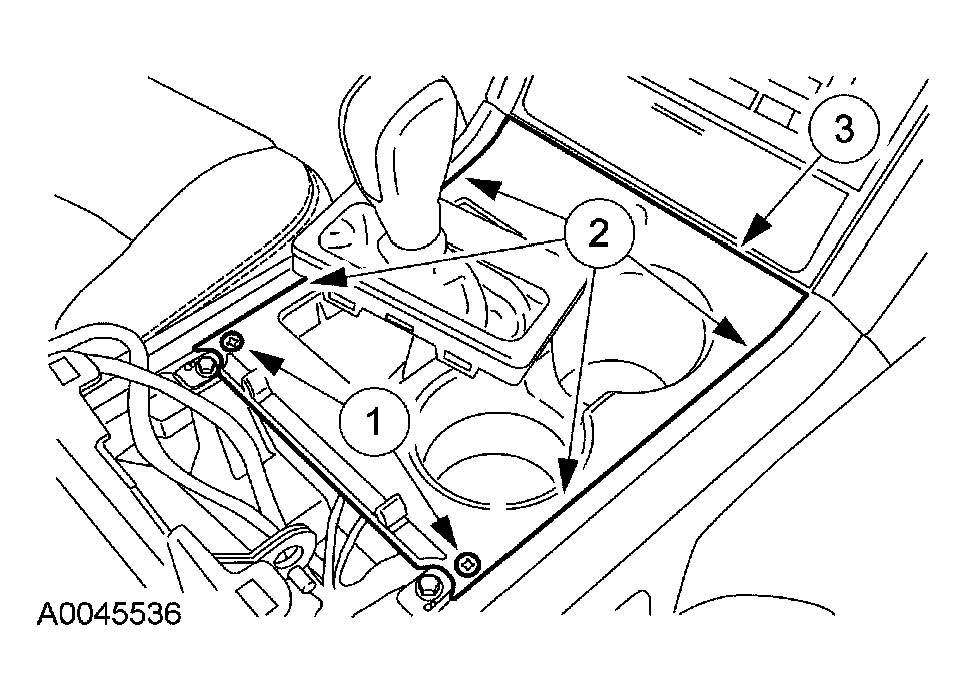

Remove the center console trim panel.
1. Remove the screws.
2. Disengage the four clips.
3. Remove the center console trim panel.
Fig 3: Removing Center Console Trim Panel
Courtesy of FORD MOTOR CO.

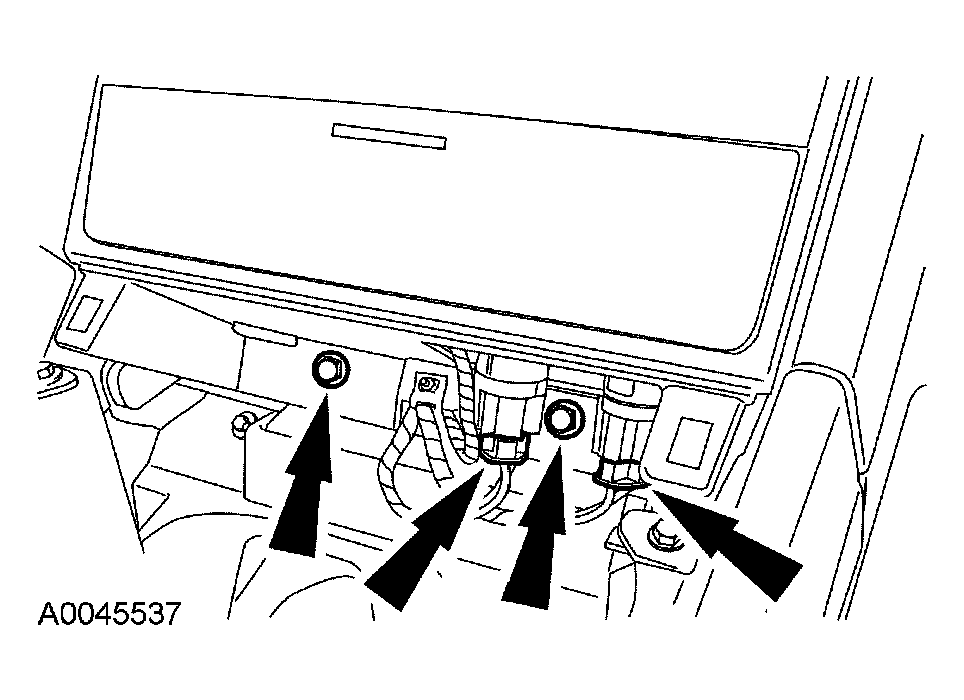

Disconnect the electrical connectors and remove the screws.

Fig 4: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

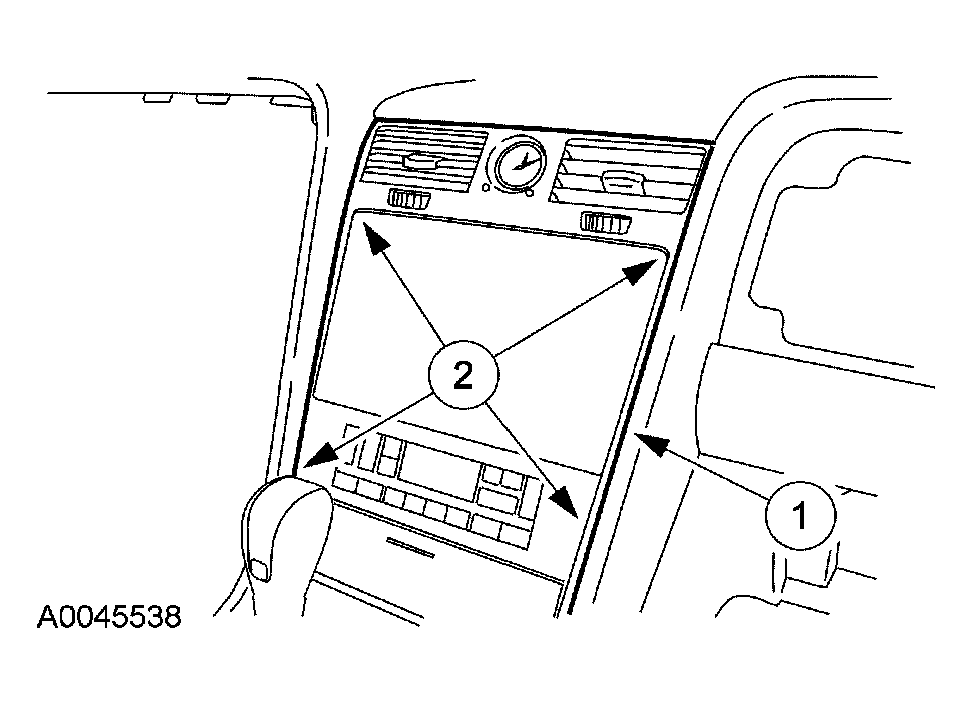

Remove the center instrument panel finish panel.
1. Open the audio unit cover to the full open position.
2. Disengage the four clips.
  - Disconnect the electrical connectors.
Fig 5: Disengaging Center Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.

Expedition

Apply the parking brake and place the gear selector in (1).
Disconnect the negative battery cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.
Fig 6: Removing Screws And Instrument Cluster Finish Panel
Courtesy of FORD MOTOR CO.

All vehicles

NOTE: Navigator shown, Expedition similar.

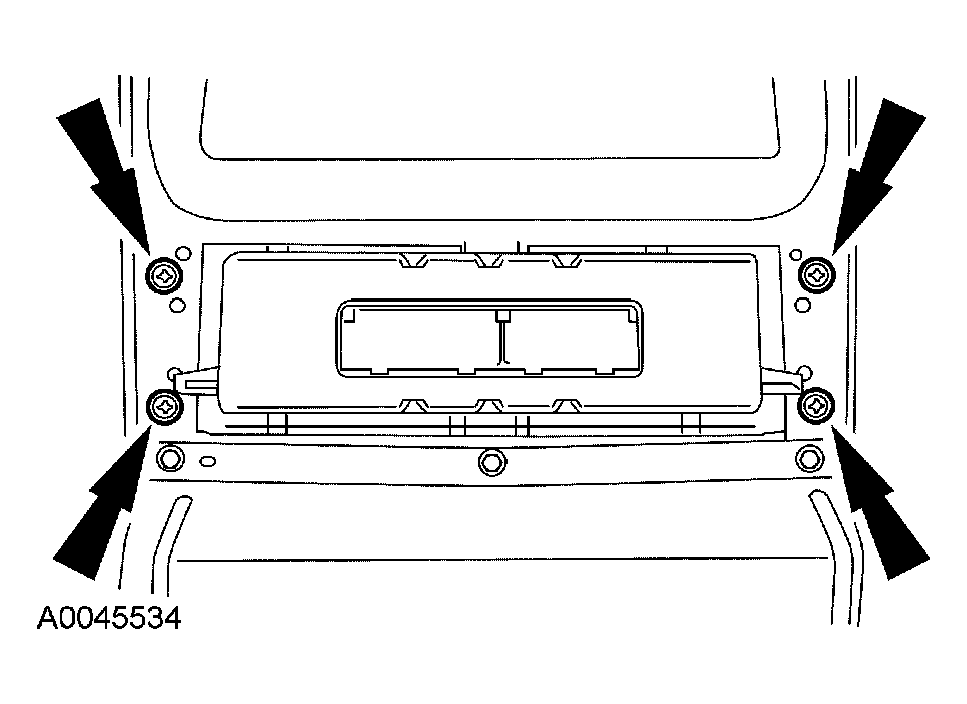

Fig 7: Removing Screws And Climate Control Assembly

Courtesy of FORD MOTOR CO.

Remove the screws and the climate control assembly.
To install, reverse the removal procedure.
