Speed Control
>>
Symptom Chart
Symptom Chart
NOTE:
Carry out the speed control self-test diagnostics before entering the symptom chart.

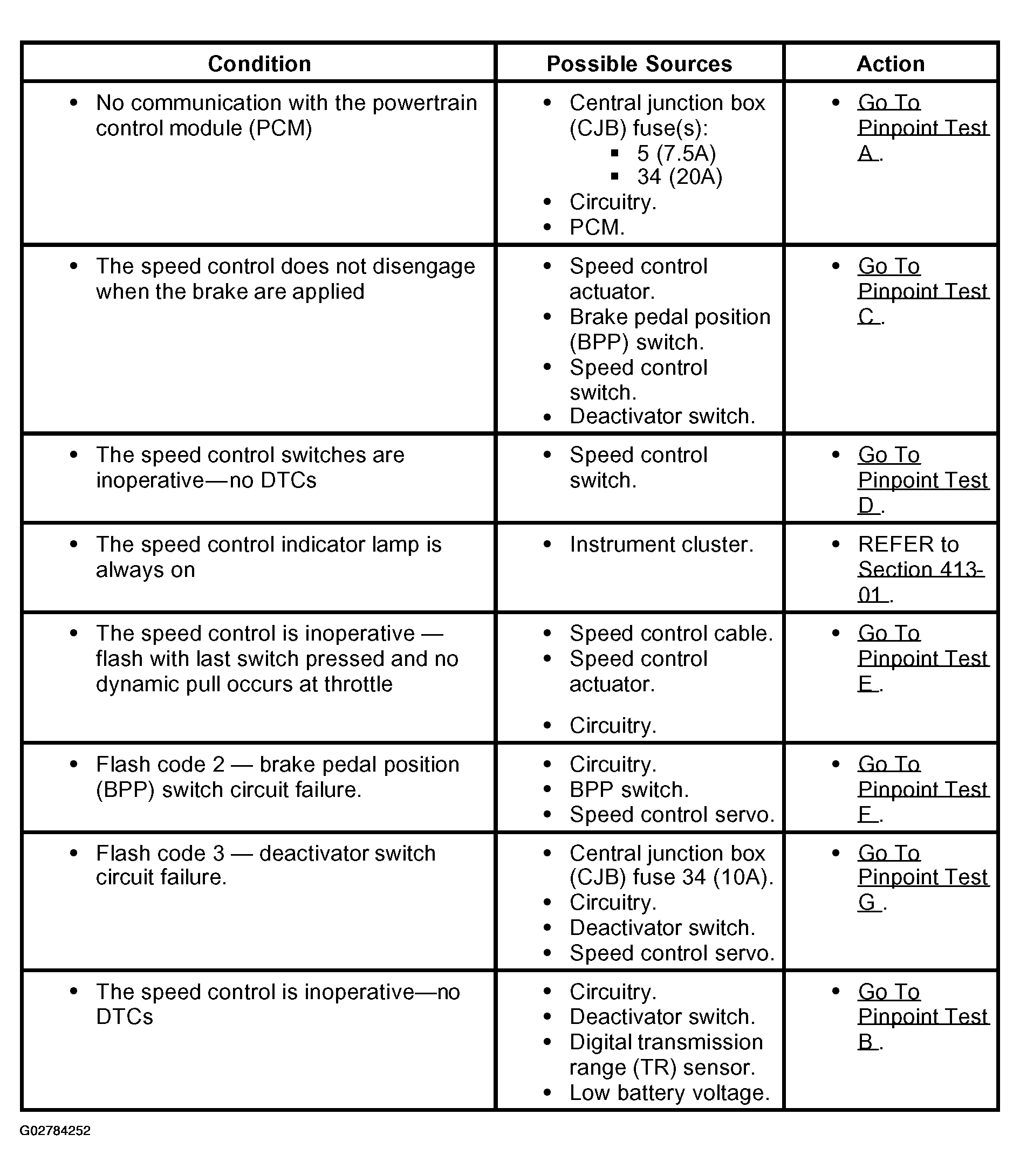

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
