ESM EGR Assembly

WARNING: This page is about a different variant/trim than selected.

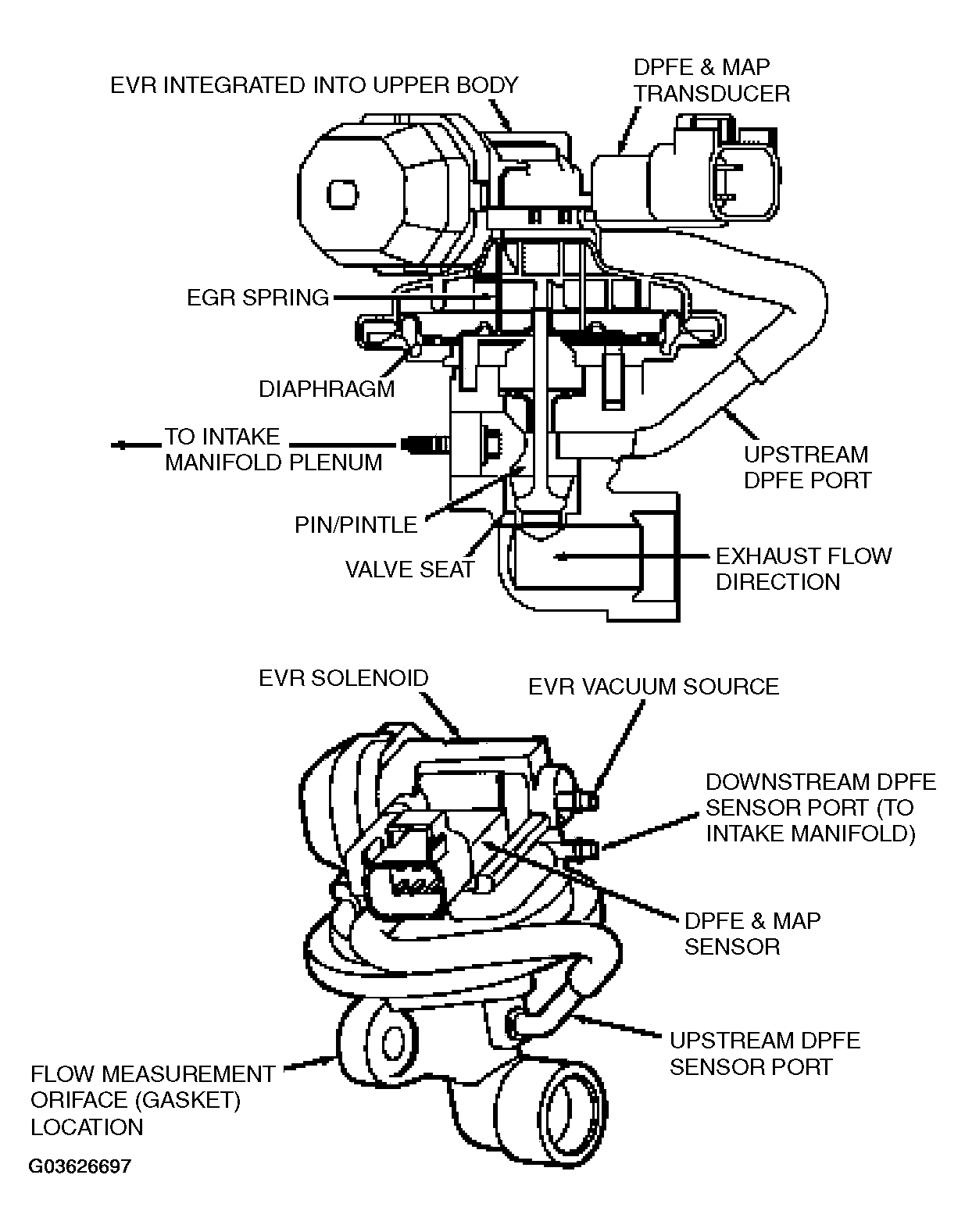

Fig 1: Identifying ESM EGR Assembly
G03626697Courtesy of FORD MOTOR CO.

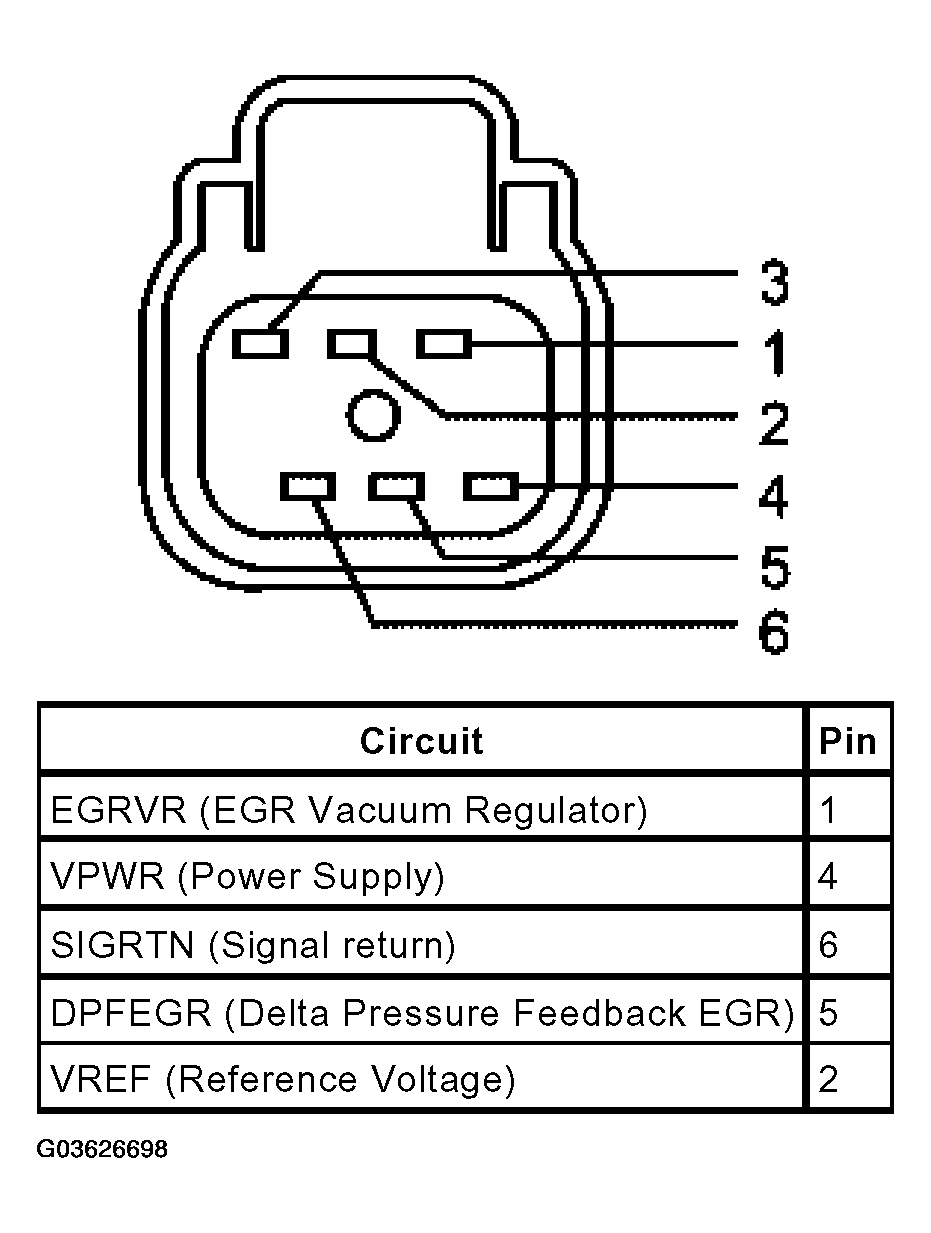

Fig 2: Identifying EGR System Module (ESM) Connector
G03626698Courtesy of FORD MOTOR CO.
